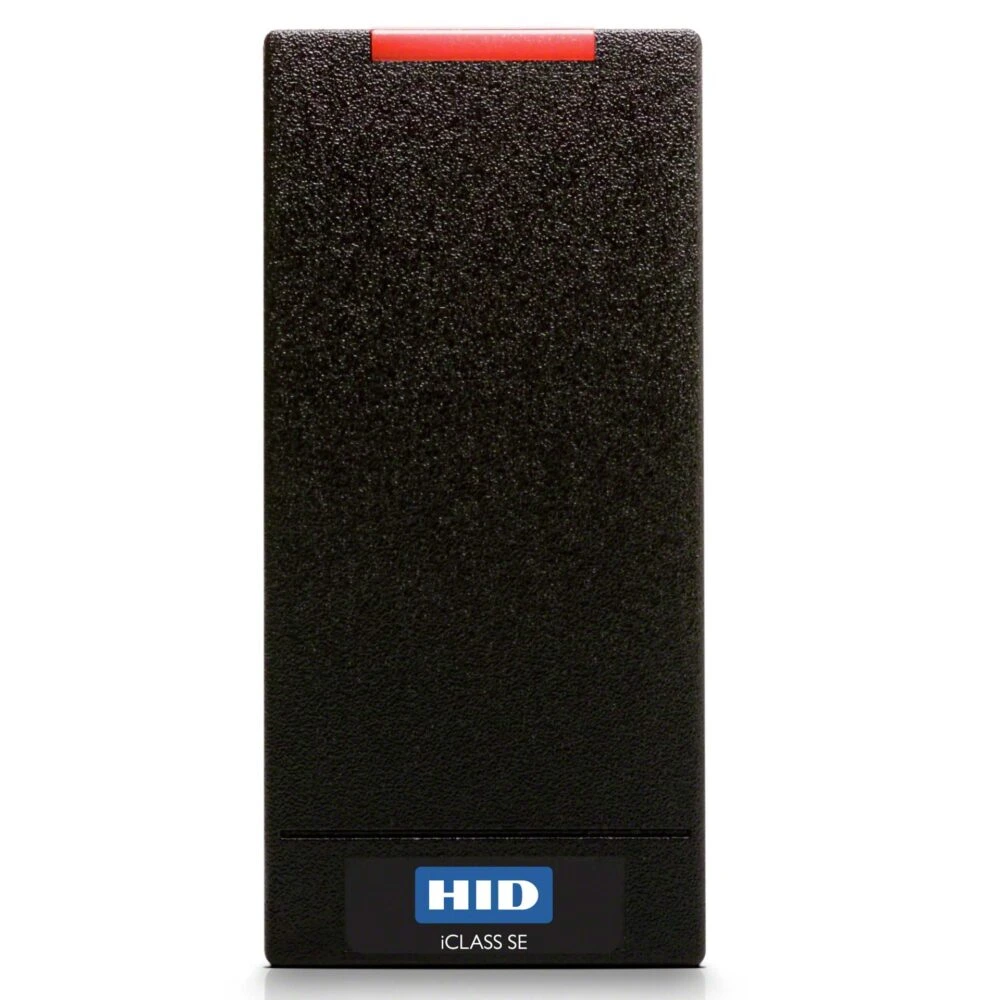

HID iCLASS SE R10

Mini-Mullion Contactless Smartcard Reader

iCLASS SE R10 is part of HID Global’s iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring a small footprint card reader, iCLASS SE R10 supports a broad array of credential technologies and a variety of form factors including cards, fobs and mobile devices. Configurable to support HID Mobile Access.

Key Features

Adaptable – Interoperable with a growing range of technologies (iCLASS Seos, iCLASS SE, iCLASS, MIFARE Classic, MIFARE DESFire EV1) and form factors including mobile devices.

Powerfully Secure – The iCLASS SE platform’s Secure Identity Object (SIO) data model provides an extra layer of encryption for additional protection of identity data

Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.

With a focus on sustainability, iCLASS SE platform readers include intelligent power management that reduces power consumption by as much as 59%. Selected models also have Environmental Product Declaration certification and Green Circle certification, which contributes toward LEED building credits.

Dimensions

1.9? x 4.1? x 0.9? (4.8 cm x 10.3 cm x 2.3 cm)

13.56 MHz contactless smart cards supported

iCLASS Seos, iCLASS SE, standard iCLASS,MIFARE Classic, and MIFARE DESFire EV1

Protocol

Open Supervised Device Protocol (OSDP) mode

Wiegand or Clock & Data modes

Warranty

Warrantied against defects in materials and workmanship for one year. (See complete warranty policy for details.)
