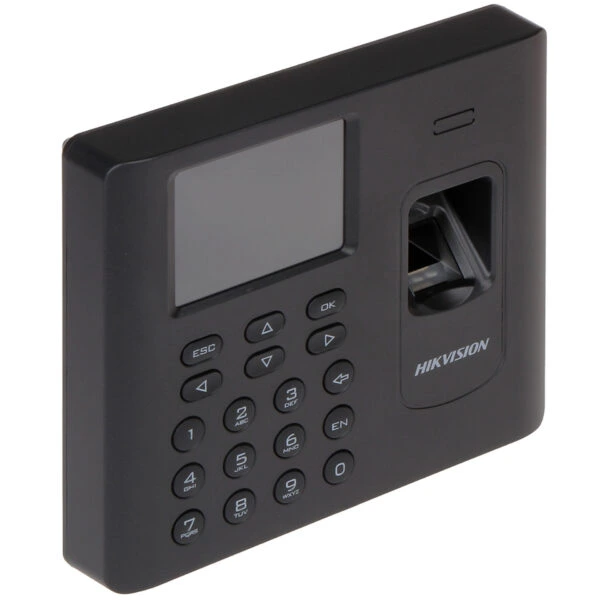

HikVision DS-K1A8503EF-B

• 2.4-inch LCD screen to display time, date, week, and attendance information
• TCP/IP communication
• N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
• Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
•  Stand-alone operation (supports adding persons, cards, and fingerprints locally)
• Downloads attendance reports by USB flash drive
•  Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
• Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
•  Generates reports automatically
•  Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish,Indonesian, and Ukrainian
•  Supports ISAPI protocol and ISUP 5.0 protocol

Specification

System

Operation system         Linux

Screen Size                    2.4-inch

Type                               LCD-TFT display screen

Audio

Audio output                 1 loudspeaker, 1 buzzer

Network

Wired network              TCP/IP, 10/100Mbps, self-adaptive

Interface

Network interface          1

USB                                    1

Capacity

Card capacity                   1000

Fingerprint capacity        1000

Event capacity                 100,000

Authentication

Card type                          EM card

Fingerprint capacity       1000

Event capacity                  100,000

Authentication

Card type                                                 EM card

Card reading distance                           0 to 3.5 cm

Fingerprint module                               Optical fingerprint module

Fingerprint comparing mode              1:1 and 1:N

Fingerprint recognition duration       < 1 s

Fingerprint False Acceptance              = 0.001 %

Rate (FAR)

Fingerprint False Rejection Rate         = 0.01 %

(FRR)

Others

Battery                                                            Support

Power supply                                                 5 VDC/1 A

Working temperature                                  -10 °C to +55 °C (14 °F to +131 °F)

Working humidity                                        10% to 90% (no condensing)

Color                                                                 White

Dimensions                                                     140 mm × 155 mm × 30 mm (5.51? × 6.01? × 1.18?)

Application environment                             Indoor

Installation                                                      Wall mounting
