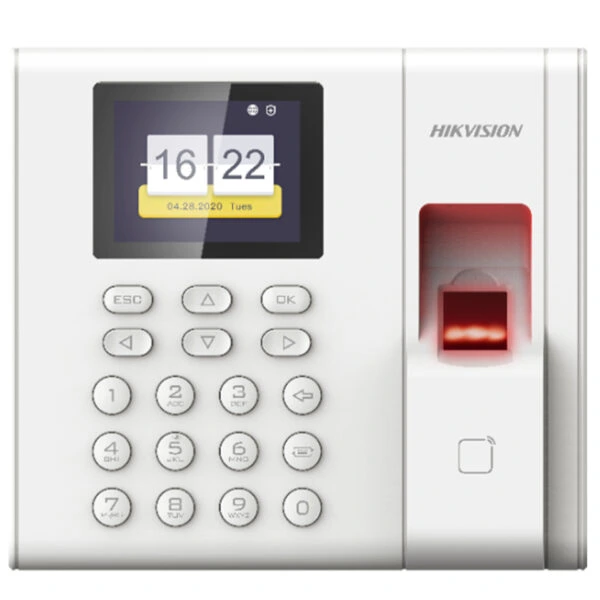

HikVision DS-K1A8503MF

K1A8503 Value Series Fingerprint Time Attendance Terminal

  • 2.4-inch LCD screen to display time, date, week, and attendance information
  • TCP/IP communication
  • 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
  • Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
  • Stand-alone operation (supports adding persons, cards, and fingerprints locally)
  • Downloads attendance reports by USB flash drive
  • Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  • Generates reports automatically
  • Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
  • Supports ISAPI protocol and ISUP 5.0 protocol


Display

Screen Size                         2.4-inch

Type                                     LCD-TFT display screen


Network

Wired Network                    TCP/IP, 10/100Mbps, self-adaptive


Interface

Network Interface             1

USB                                     1


Authentication

Fingerprint Module           Optical fingerprint module

Fingerprint Comparing     Mode1:1 and 1:N


General

Power Supply                          5 VDC/1 A

Working Temperature          -10 °C to +55 °C (14 °F to +131 °F)

Working Humidity                10% to 90% (no condensing)

Dimensions                              140 mm × 155 mm × 30 mm (5.51? × 6.01? × 1.18?)

Installation                              Wall mounting

Color                                          White
