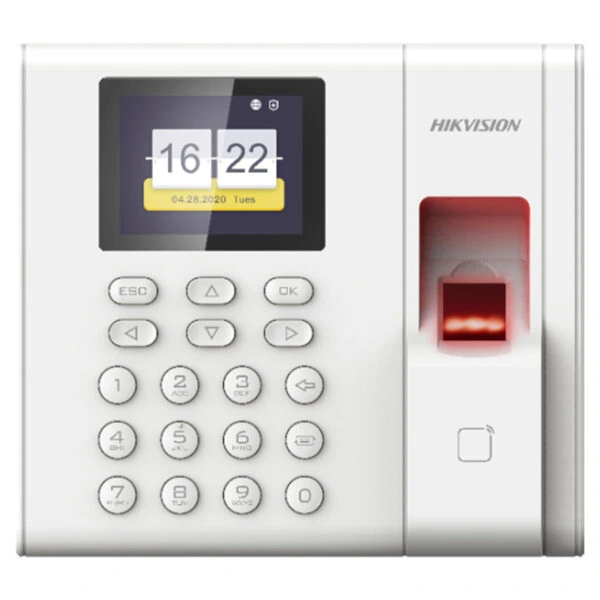

HikVision DS-K1A8503MF-B

K1A8503 Value Series Fingerprint Time Attendance Terminal

• 2.4-inch LCD screen to display time, date, week, and attendance information
• TCP/IP communication
• 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
• Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
• Stand-alone operation (supports adding persons, cards, and fingerprints locally)
• Downloads attendance reports by USB flash drive
• Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
• Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
• Generates reports automatically
• Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
• Supports ISAPI protocol and ISUP 5.0 protocol

Display

Screen Size                          2.4-inch

Type                                       LCD-TFT display screen

Network

Wired Network                   TCP/IP, 10/100Mbps, self-adaptive

Interface

Network Interface                1

USB                                          1

Authentication

Fingerprint Module                      Optical fingerprint module

Fingerprint Comparing Mode    1:1 and 1:N

General

Battery                               Support

Power Supply                     5 VDC/1 A

Working Temperature     -10 °C to +55 °C (14 °F to +131 °F)

Working Humidity          10% to 90% (no condensing)

Dimensions                      140 mm × 155 mm × 30 mm (5.51? × 6.01? × 1.18?)

Installation                       Wall mounting

Color                                   White
