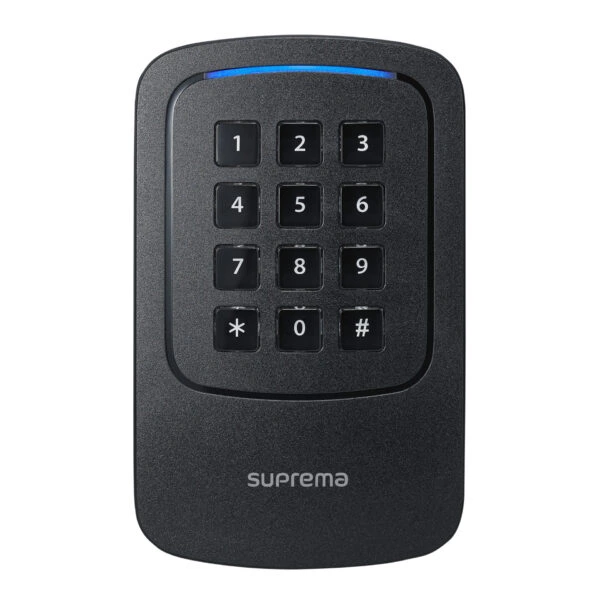

Suprema XPass D2

XPass D2 is an outdoor compact RFID reader based on Suprema’s state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology with mullion-mount, gangbox-type and gangbox keypad-type designs, XPass D2 can be installed in various environments. XPass D2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE. Packed in a strong IP67/IK08 box, it is dust & waterproof as well as vandal-resistant, suitable for tough environments and outdoor installation.

Multi-Smartcard Reader with Dual Frequency

Featuring dual-frequency RFID card technology, XPass D2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credentials, the XPass D2 supports most types of RFID card standards with a single device including 125 Khz EM, Wiegand format card, 13.56 MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, NFC, and BLE.

Specification

• Make                                               Suprema
• Manufacturer                                Suprema
• Model code                                     XPass D2
• Reader Type                                   RFID
• IP Rating                                         IP65/IP67
• Keypad Integrated                        Yes
• Read Range mm                            30 ~ 50 mm mm read range
• LED / Beep                                     Multi-colour LED / Multi-tone Buzzer
• Wiegand Interface                         Yes
• Electrical Specifications                Voltage: 12 V DC
• Physical Specifications                   Dimensions mm: 80 x 130 x 25 Weight g: 117
• Environmental Specifications       Operating Temp oC: -35 ~ +65 C (-31 ~ +149 F)
• Operating Humidity                        %: 0 ~ 95
• Protection                                           IP65/IP67, IK08
