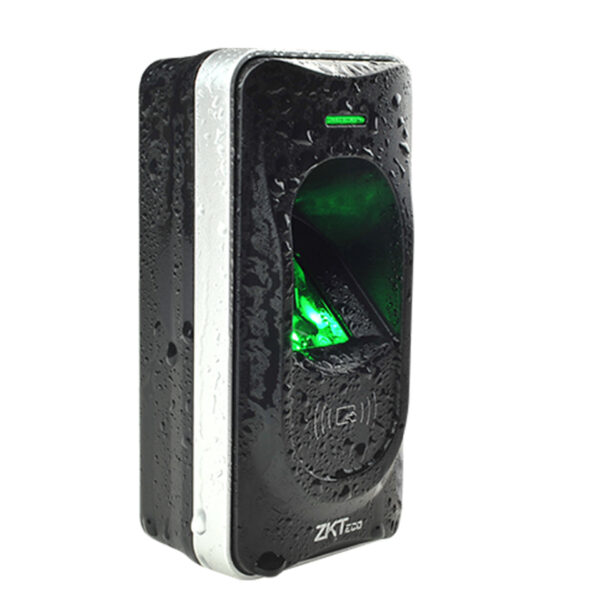

ZKTeco FR1200

FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.

Specifications

• Model                                          FR1200
• CPU                                              324 MHz
• Fingerprint Sensor                   ZK Small Size Sensor
• Algorithm Version                   ZKFinger VX10.0
• Communication                       RS485
• Standard Function                  ID Card Module
• Optional Function                   IC Card Module
• Voice Prompt                            Buzzer
• Power Supply                           DC 12V
• Operating Temperature         0 ~ 45°C (32°~113°F)
• Protection Grade                     IP65
• Dimension(L x W x H)          102 x 50 x 37mm
