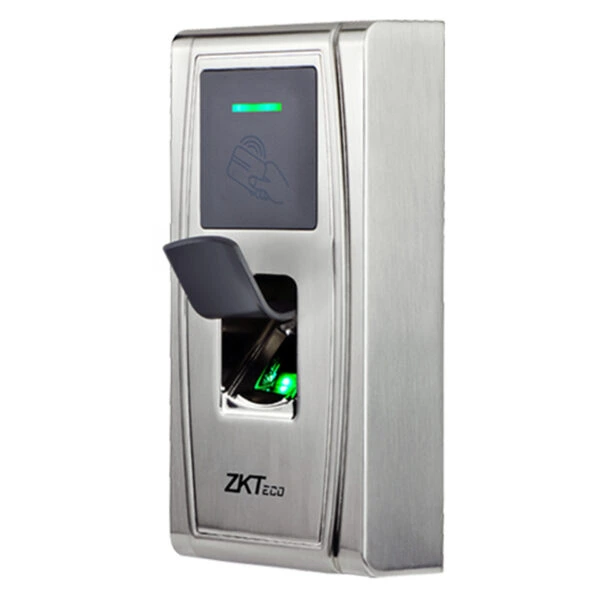

ZKTeco MA300

MA300, one of the innovative biometric fingerprint readers for access control applications. Offering unparalleled performances by adopting an advanced ZKTeco fingerprint algorithm for reliability, precision and excellent matching speed.

It is metallic casing and IP65 rated which enables it to be resistant from water, dust and other outside damages.

MA300 offers the flexibility to be installed standalone or with any third party panels that support 26-bit wiegand. User can be enrolled by the administrator card when the device works in standalone mode.TCP/IP and RS485 are available, so that the device can be connected easily and conveniently.

Specification

• Fingerprint Capacity                            1,500 templates
• Card Capacity                                        10,000
• Transaction Capacity                            100,000
• Hardware Platform                                ZEM720
• Sensor                                                       ZK Optical Sensor
• Algorithm Version                                   ZKFinger VX10.0
• Communication                                         RS485,TCP/IP,USB-host
• Interfaces for Access Control                  3rd party electric lock, door sensor, exit button, alarm
• Wiegand Signal                                          Input & Output
• Standard Access Control Function        Time Zone, Group, Anti-passback, external USB keypad
• Optional Functions                                    IC Card, HID
• Display                                                          N/A
• Power Supply                                              12V DC
• Operating Temperature                            -10 °C- 60 °C
• Operating Humidity                                  10% -90%
• Protection Grade                                        IP65
• Dimension(W×H×D)mm                         73×148×34.5
• Gross Weight                                               1.15kg
