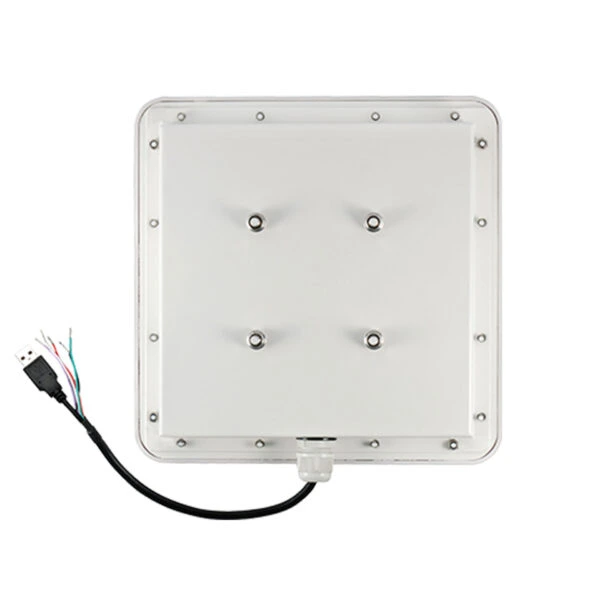

ZKTeco UHF Series

UHF Series

UHF 5 series and UHF 10 series reader are a new generation of UHF RFID series products for our company’s independent research and development of the long distance card reader system in the personnel management,goods management and vehicle management.

The product uses the industry’s most cost-effective UHF card reader chip, and the part of swing card adopts the module integrated design, making the product to meet the technical requirements of the parking lot.Meanwhile, the utility model has the advantages of stable reading performance, good consistency, low working current and temperature, long service life, and small external influence, and the product adopts the waterproof outer shell design.

The product is also a fully meet the CE, FCC technology requirements of the product, and to obtain CE, FCC and other security certification.


Model                                                         UHF1-5E,UHF1-5F                                           UHF1-10E,UHF1-10F


  • Dimension                                                    260*260*65(mm)                                              445*445*70(mm)
  • Reading distance                                         Up to 6 meters (adjustable)                              Up to 12 meters (adjustable)
  • communication interface                        Wiegand 26(Default) /Wiegand 34, USB
  • Frequency                                                       902Mhz – 928Mhz, 865MHz – 868MHz
  • Shell Material                                                Antenna Panel:ABS Engineering Plastics; Back Cover:Aluminum Shell
  • Working Voltage                                           9~12V DC
  • Working Current                                          150mA(Always Read)
  • Working Temperature                               -20 °C – 60 °C
  • Interface Protocol                                        EPC global UHF Class 1Gen 2/ISO 18000-6c
  • Multiple tags identification                     <100
  • Working mode                                               Always read(Default) /Trigger read
  • I/O Interface                                                   Supports external trigger
  •  Maximum power consumption            <3W (RF output 26dBm,multiple tags), <2W (RF  output 26dBm,Sigle tags)
