AXIS F1005-E SENSOR UNIT

AXIS F1005-E SENSOR UNIT

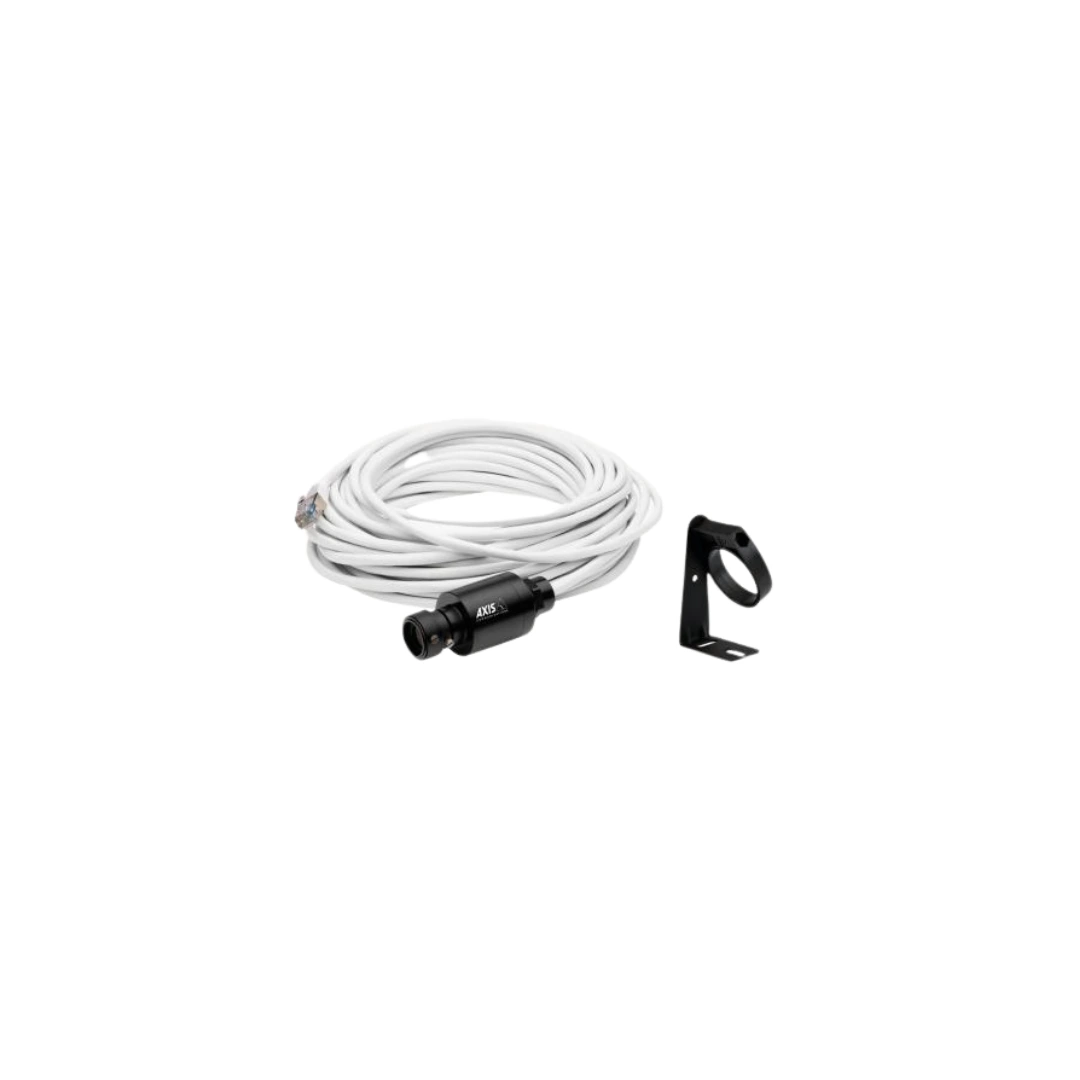

AXIS F1005-E Sensor Unit with a 3 meter cable to the main unit. IP66 rated. To be used with AXIS F Series Main Units. Fixed lens that provides 113° horizontal FOV. Full HDTV 1080p resolution and support for WDR - Forensic Capture together with AXIS F41 Main Unit. Includes one AXIS F8201 Vari-angle Mounting Bracket.

Technical specifications

Camera

Image sensor CMOS

Wide dynamic range Forensic Capture

Min illumination/ light sensitivity (Color) 0.3 lux

Min illumination/ light sensitivity (B/W) –

Thermal sensitivity (NETD) –

Thermal sensor resolution –

Video

Max video resolution 1920x1200

Max frames per second 50/60

Day and Night functionality –

Electronic image stabilization –

Multiple color palettes –

Lens

Focal length 2.8 mm

Varifocal lens No

Aperture 2.0

Horizontal field of view 113 °

Vertical field of view 62 °

Lens mount M12

Replaceable lens Yes

Compression

Zipstream –

H.264 Baseline, High, Main

H.265 –

Motion JPEG –

Audio

Audio Support –

Two-way audio –

System integration

Audio detection –

Active tampering –

Alarm inputs/outputs –

Serial connectors –

AXIS Camera Application Platform –

Digital I/O –

Network

Power over Ethernet –

PoE Class –

Security

HTTPS encryption –

IEEE 802.1X –

General

Built-in IR –

Local storage (memory card slot) –

Operating temperature -30 to 55 °C

Outdoor Ready Yes

Vandal rating –

IP rating IP66, IP67

Power

Power (max) –

Power (average) –

DC input voltage –
