AXIS F1025 SENSOR UNIT 12M

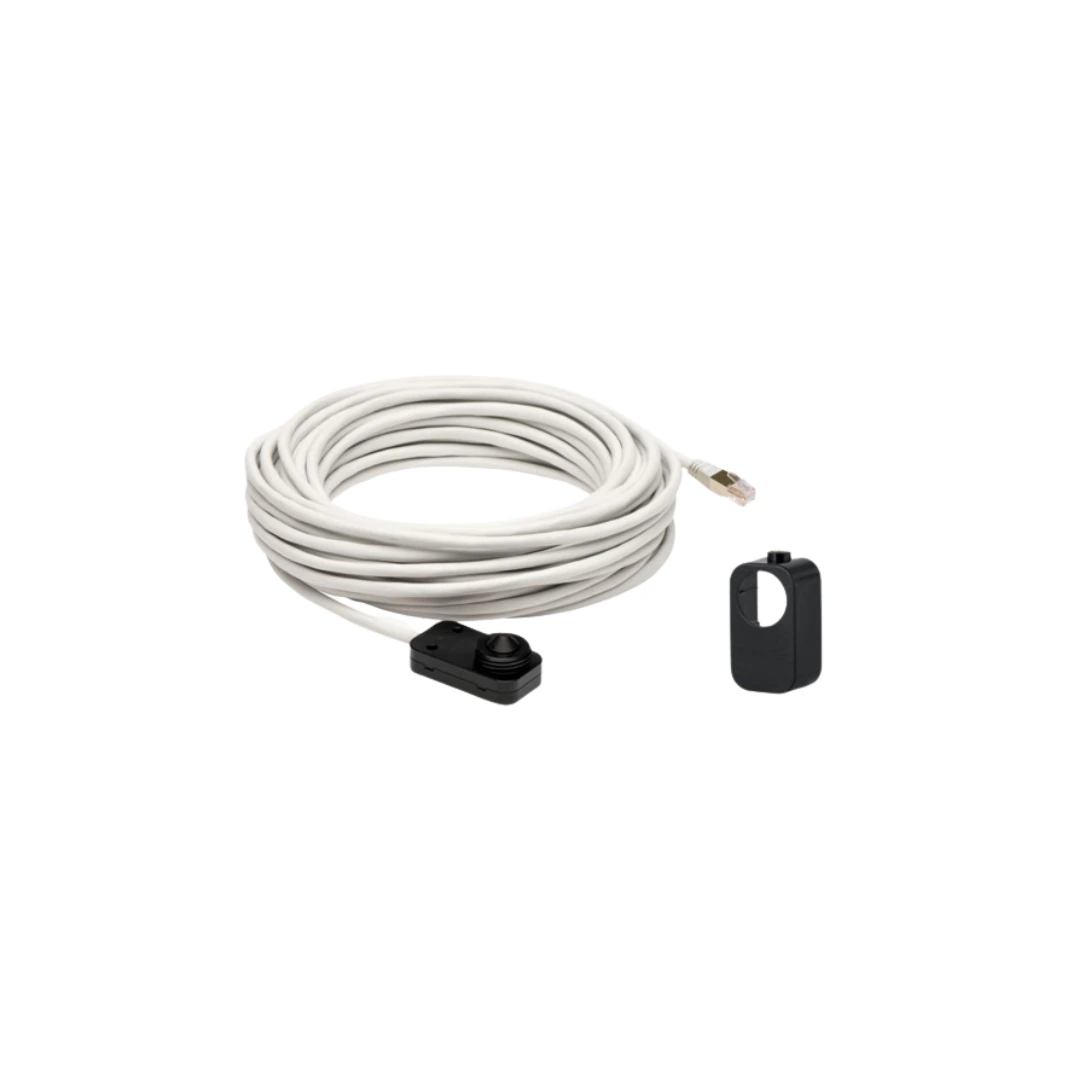

AXIS F1025 Sensor Unit with a 12 meter cable to the main unit. To be used with AXIS F Series Main Units. Pinhole lens that provides 92° horizontal FOV. Full HDTV 1080p resolution and support for WDR - Forensic Capture together with AXIS F41 Main Unit. Includes one AXIS F8202 Straight Mounting Bracket.

Technical specifications

Camera

Image sensor CMOS

Wide dynamic range Forensic Capture

Min illumination/ light sensitivity (Color) 0.3 lux

Min illumination/ light sensitivity (B/W) –

Thermal sensitivity (NETD) –

Thermal sensor resolution –

Video

Max video resolution 1920x1200

Max frames per second 50/60

Day and Night functionality –

Electronic image stabilization –

Multiple color palettes –

Lens

Focal length 3.7 mm

Varifocal lens No

Aperture 2.5

Horizontal field of view 92 °

Vertical field of view 45 °

Lens mount M12

Replaceable lens Yes

Compression

Zipstream –

H.264 –

H.265 –

Motion JPEG –

Audio

Audio Support –

Two-way audio –

System integration

Audio detection –

Active tampering –

Alarm inputs/outputs –

Serial connectors –

AXIS Camera Application Platform –

Digital I/O –

Network

Power over Ethernet –

PoE Class –

Security

HTTPS encryption –

IEEE 802.1X –

General

Built-in IR –

Local storage (memory card slot) –

Operating temperature -30 to 55 °C

Outdoor Ready –

Vandal rating –

IP rating –

Power

Power (max) –

Power (average) –

DC input voltage –
