AXIS FA1105 SENSOR UNIT

AXIS FA1105 SENSOR UNIT

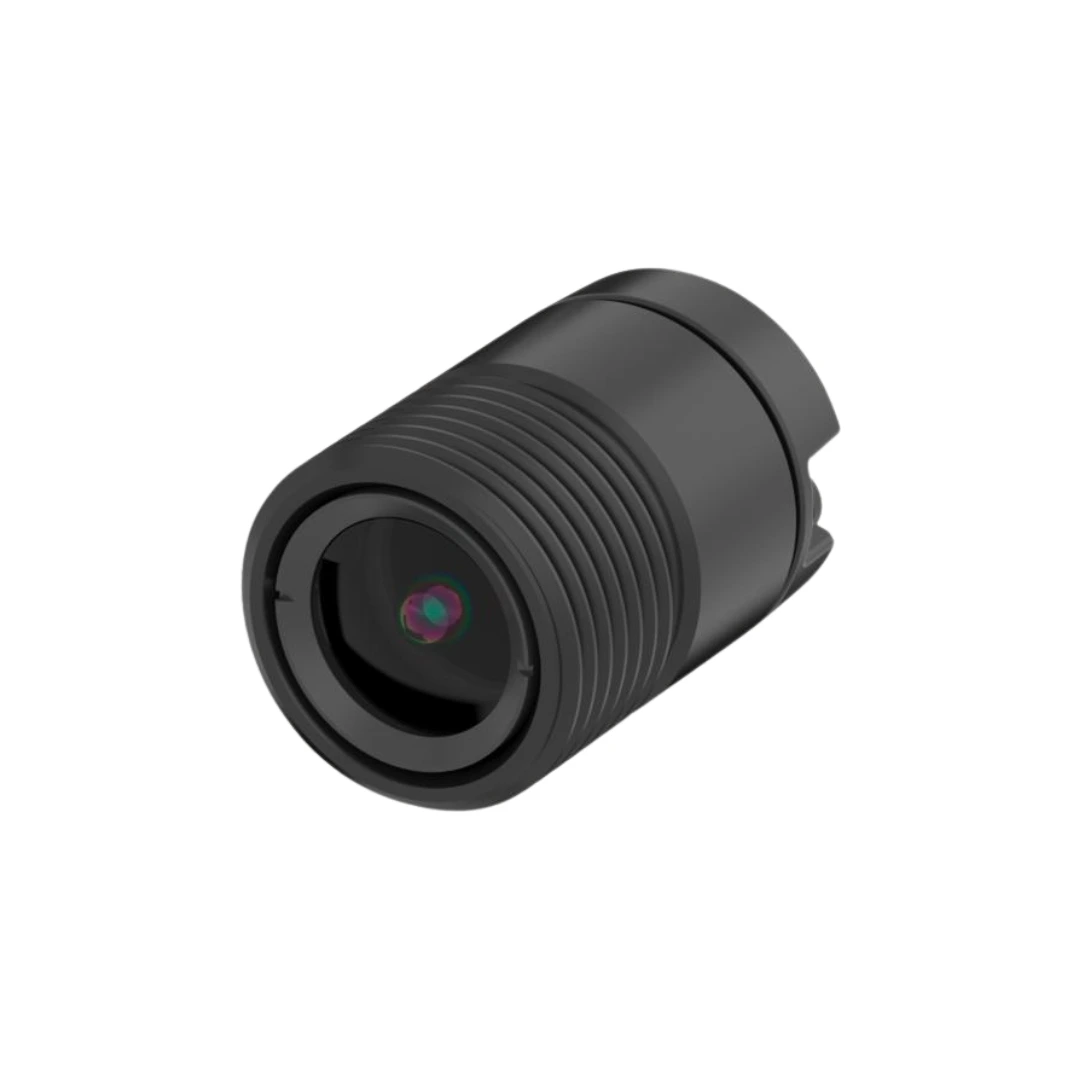

AXIS FA1105 is a discreet indoor sensor unit with 111º horizontal field of view, for use with an AXIS FA Main Unit. It can be installed in tight places and flush-mounted in a wall, ceiling or metal panel with only a small hole visible for the lens. AXIS FA1105 provides a 1080p resolution and Forensic WDR (wide dynamic range) that is optimized for low light and motion. The unit comes with a mounting bracket and an 8 m (26 ft.) cable for connection to a main unit.

Technical specifications

Camera

Image sensor CMOS

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.2 lux

Min illumination/ light sensitivity (B/W) –

Thermal sensitivity (NETD) –

Thermal sensor resolution –

Video

Max video resolution 1920x1080

Max frames per second 25/30

Day and Night functionality –

Electronic image stabilization –

Multiple color palettes –

Lens

Focal length 2.8 mm

Varifocal lens No

Aperture 2.0

Horizontal field of view 111 °

Vertical field of view 61 °

Lens mount M12

Replaceable lens Yes

Compression

Zipstream –

H.264 –

H.265 –

Motion JPEG –

Audio

Audio Support –

Two-way audio –

System integration

Audio detection –

Active tampering –

Alarm inputs/outputs –

Serial connectors –

AXIS Camera Application Platform –

Digital I/O –

Network

Power over Ethernet –

PoE Class –

Security

HTTPS encryption –

IEEE 802.1X –

General

Built-in IR –

Local storage (memory card slot) –

Operating temperature -20 to 50 °C

Outdoor Ready –

Vandal rating –

IP rating –

Power

Power (max) –

Power (average) –

DC input voltage –
