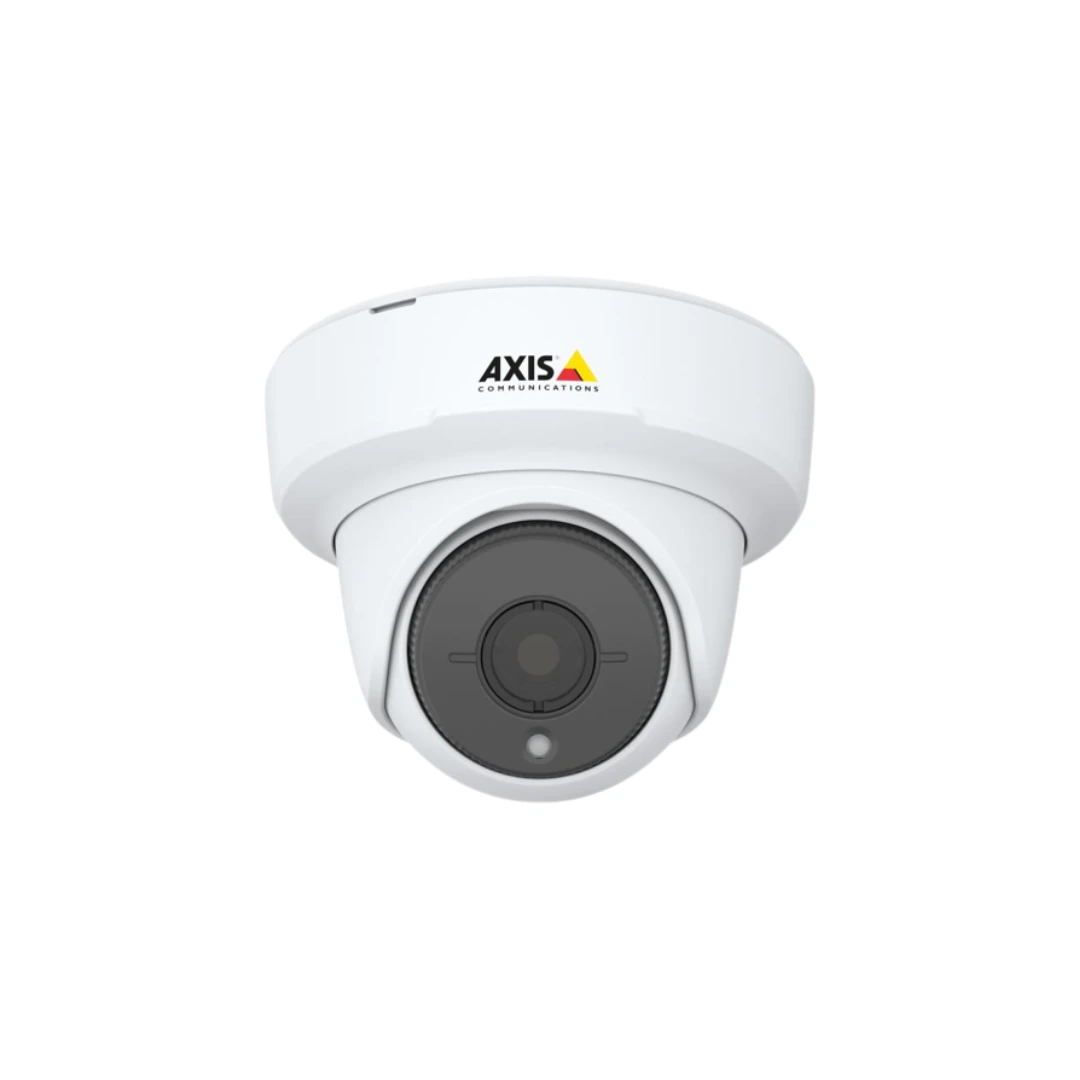

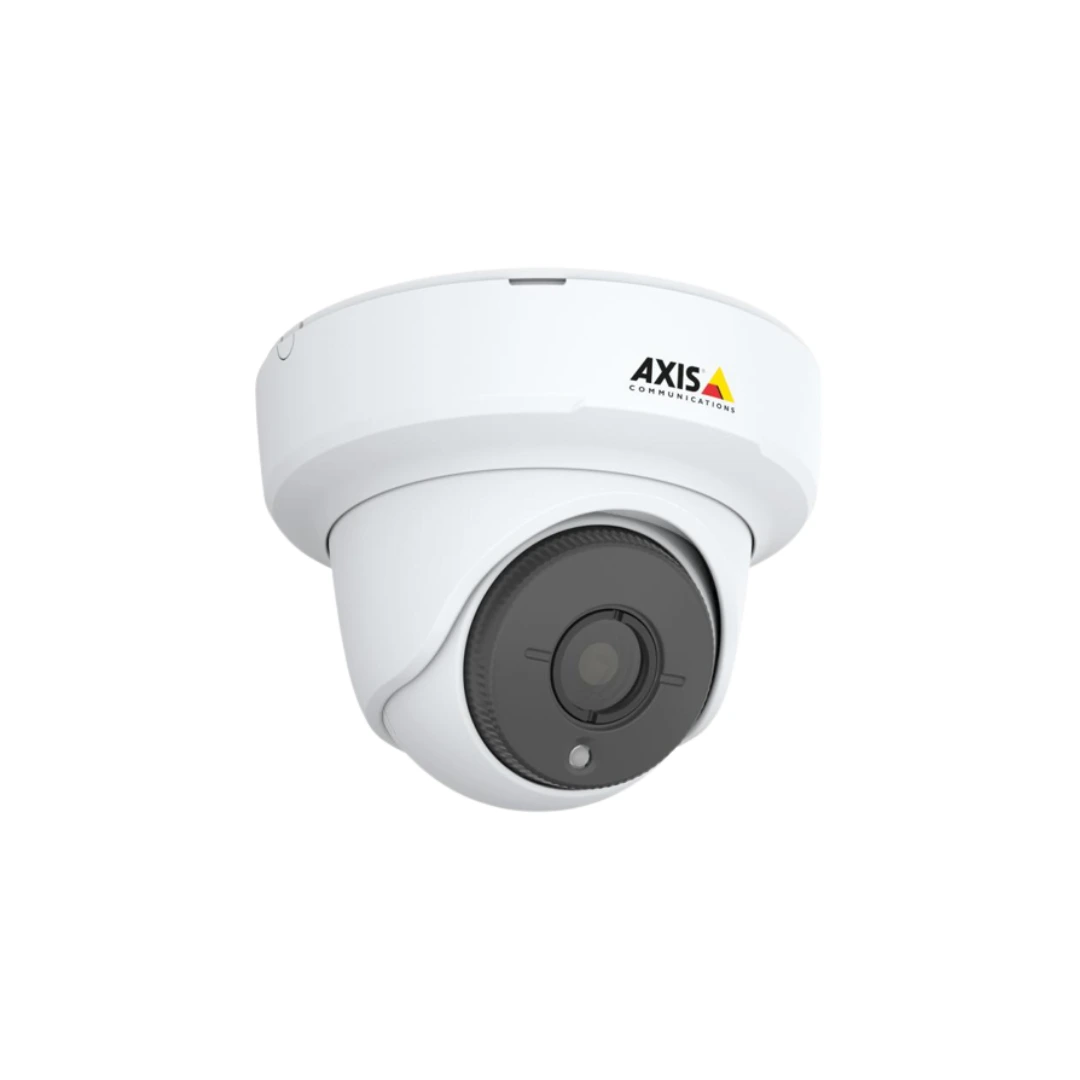

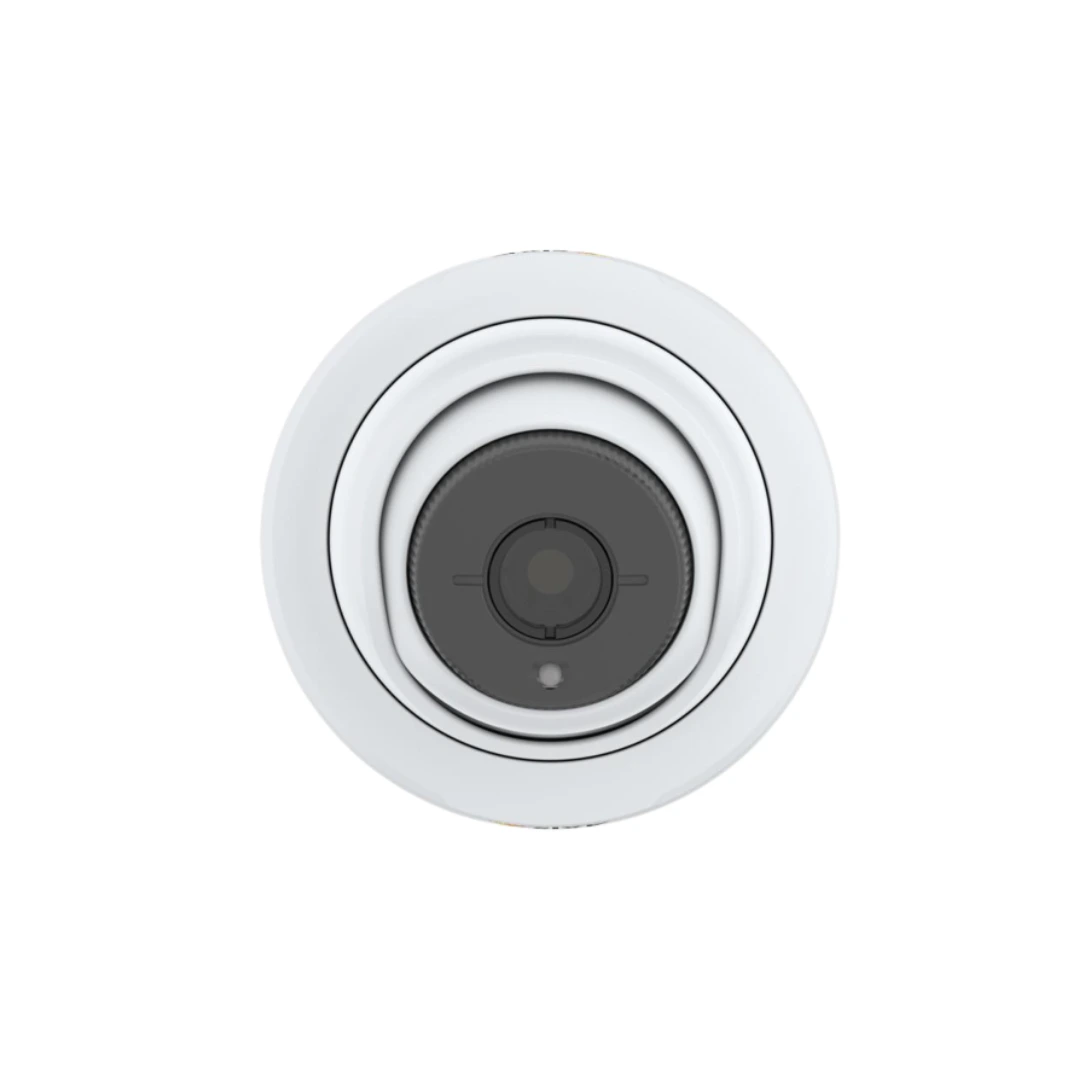

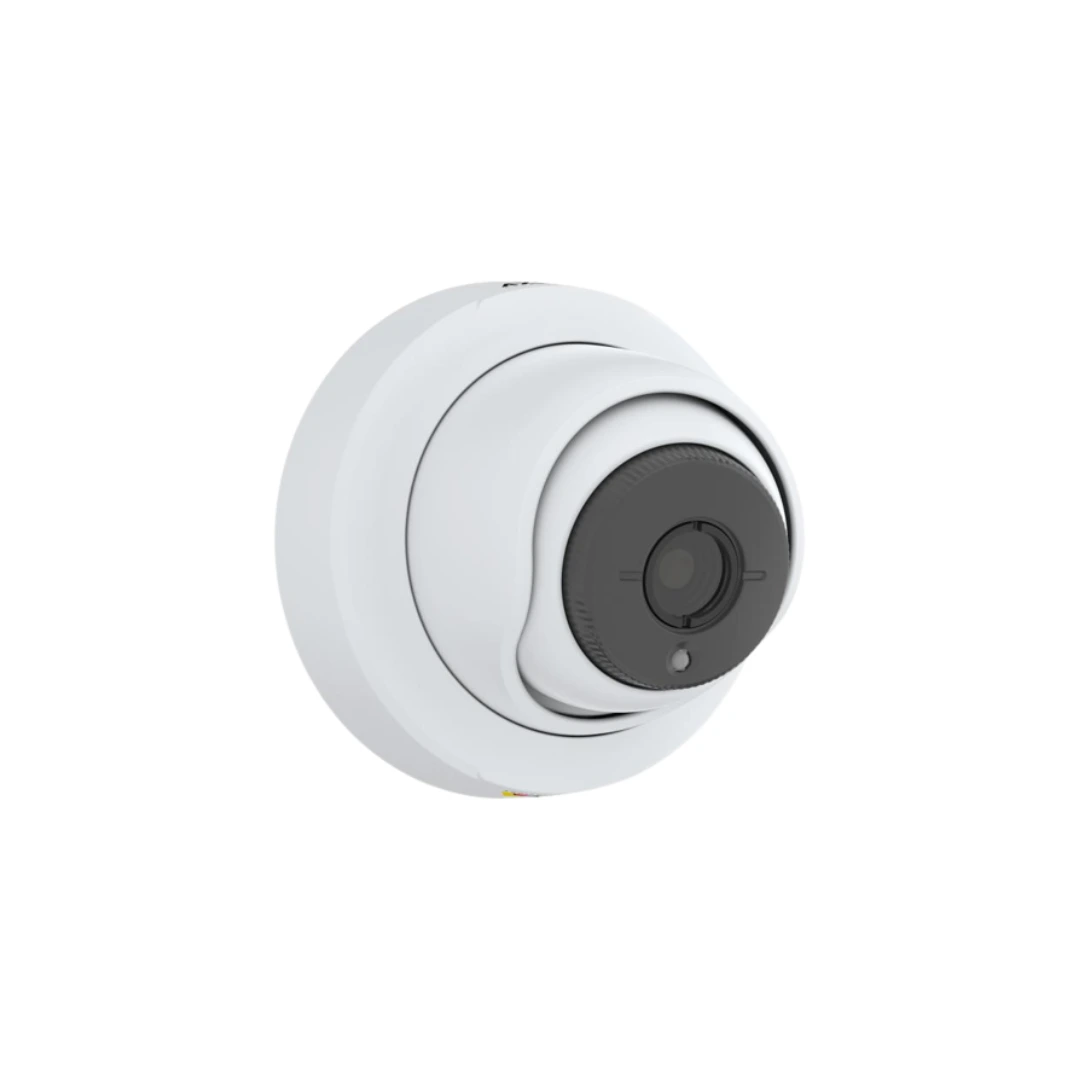

AXIS FA3105-L EYEBALL SENSOR UNIT

AXIS FA3105-L is a compact eyeball sensor unit with built in IR illumination (15 m / 49 ft range of reach) for use with AXIS FA Main Unit. It has 103º horizontal field of view and 1080p HDTV resolution with Forensic WDR (wide dynamic range) that is optimized for low light and motion. The unit comes with a mounting bracket and an 8 m (26 ft.) cable for connection to the main unit.

Technical specifications

Camera

Image sensor CMOS

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.2 lux

Min illumination/ light sensitivity (B/W) 0 lux

Thermal sensitivity (NETD) –

Thermal sensor resolution –

Video

Max video resolution 1920x1080

Max frames per second 25/30

Day and Night functionality Yes

Electronic image stabilization –

Multiple color palettes –

Lens

Focal length 3.13 mm

Varifocal lens No

Aperture 2.0

Horizontal field of view 103 °

Vertical field of view 55 °

Lens mount –

Replaceable lens –

Compression

Zipstream –

H.264 –

H.265 –

Motion JPEG –

Audio

Audio Support –

Two-way audio –

System integration

Audio detection –

Active tampering –

Alarm inputs/outputs –

Serial connectors –

AXIS Camera Application Platform –

Digital I/O –

Network

Power over Ethernet –

PoE Class –

Security

HTTPS encryption –

IEEE 802.1X –

General

Built-in IR Yes

Local storage (memory card slot) –

Operating temperature -20 to 50 °C

Outdoor Ready –

Vandal rating –

IP rating –

Power

Power (max) 1.5 W

Power (average) 1.2 W

DC input voltage –
