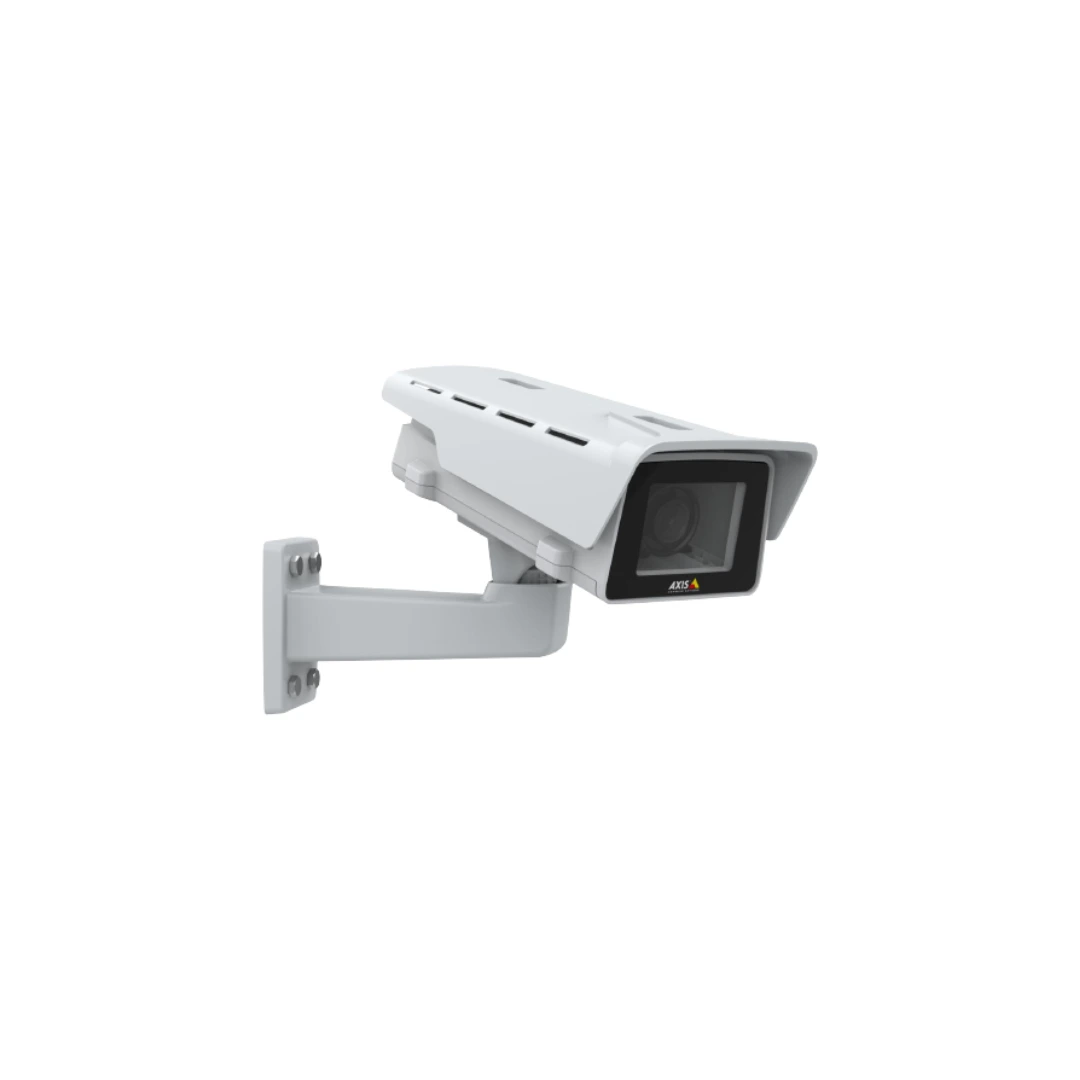

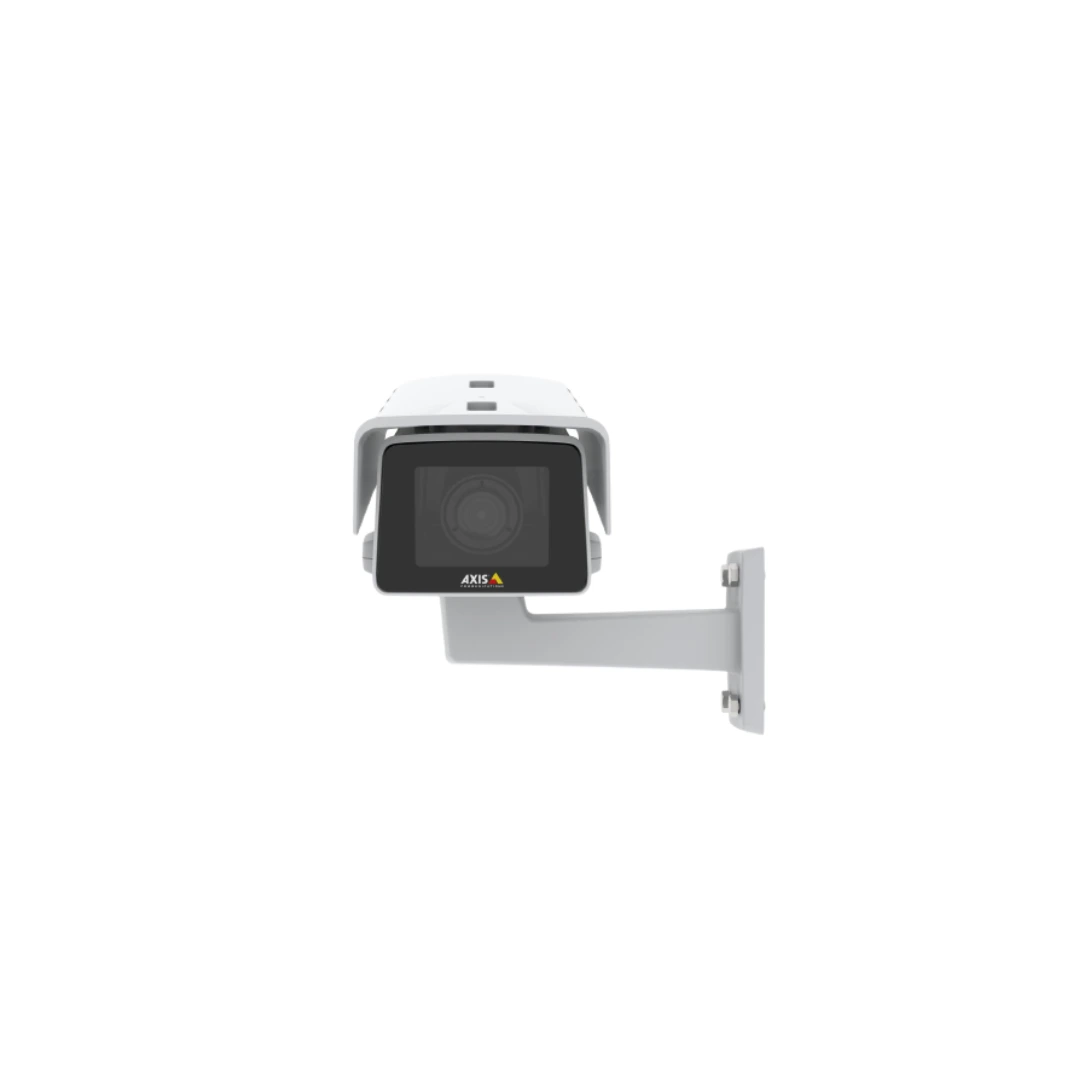

AXIS M1137-E MK II

Outdoor, NEMA 4X, IP66 and IK10-rated, light weight 5MP resolution, day/night, compact fixed box camera with CS-mount providing Forensic WDR and Lightfinder technology. Includes an IR corrected varifocal 2.8-13 mm F1.4 DC-iris lens. Camera also supports i-CS lenses for remote installation zoom and focus. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; full HDTV 5MP at 25/30 fps. Axis Zipstream technology for reduced bandwidth and storage needs. AXIS Object Analytics and active tampering alarm. Audio in and audio detection with optional microphone. I/O for alarm/event handling, MQTT support. Axis Edge Vault for added cyber security. MicroSD card slot for local storage. Operation in -25°C to +50°C. Powered by IEEE 802.3af/802.3at Type 1 Class 3 or 8-28VDC input. Includes removable sunshield, wall bracket, Torx T20 screw driver and IP66- rated cable glands. Midspan or power supply not included.

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1/2.7

Lightfinder Lightfinder

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) * 0.17 / 0.19 lux

Min illumination/ light sensitivity (B/W) * 0.03 / 0.04 lux

Video

Max video resolution 2592x1944

Max frames per second 30

Electronic image stabilization –

Lens

Focal length * 2.8 - 13 / 3.5 - 10 mm

Horizontal field of view –

Vertical field of view –

Lens mount CS

Replaceable lens Yes

Compression

Property description Property value

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Audio

Audio Support Yes

Network

Property description Property value

PoE Class 3

Wireless –

Security

Signed firmware Yes

Secure boot Yes

General

Remote focus –

Remote zoom –

Built-in IR –

Local storage (memory card slot) Yes

Operating temperature -20 to 50 °C

Outdoor Ready Yes

Vandal rating IK10

IP rating IP66

Designed for repaint Yes

Sustainability PVC free

Power

Power (max) 6.6 W

Power (average) 4.4 W

DC input voltage 10-28 V
