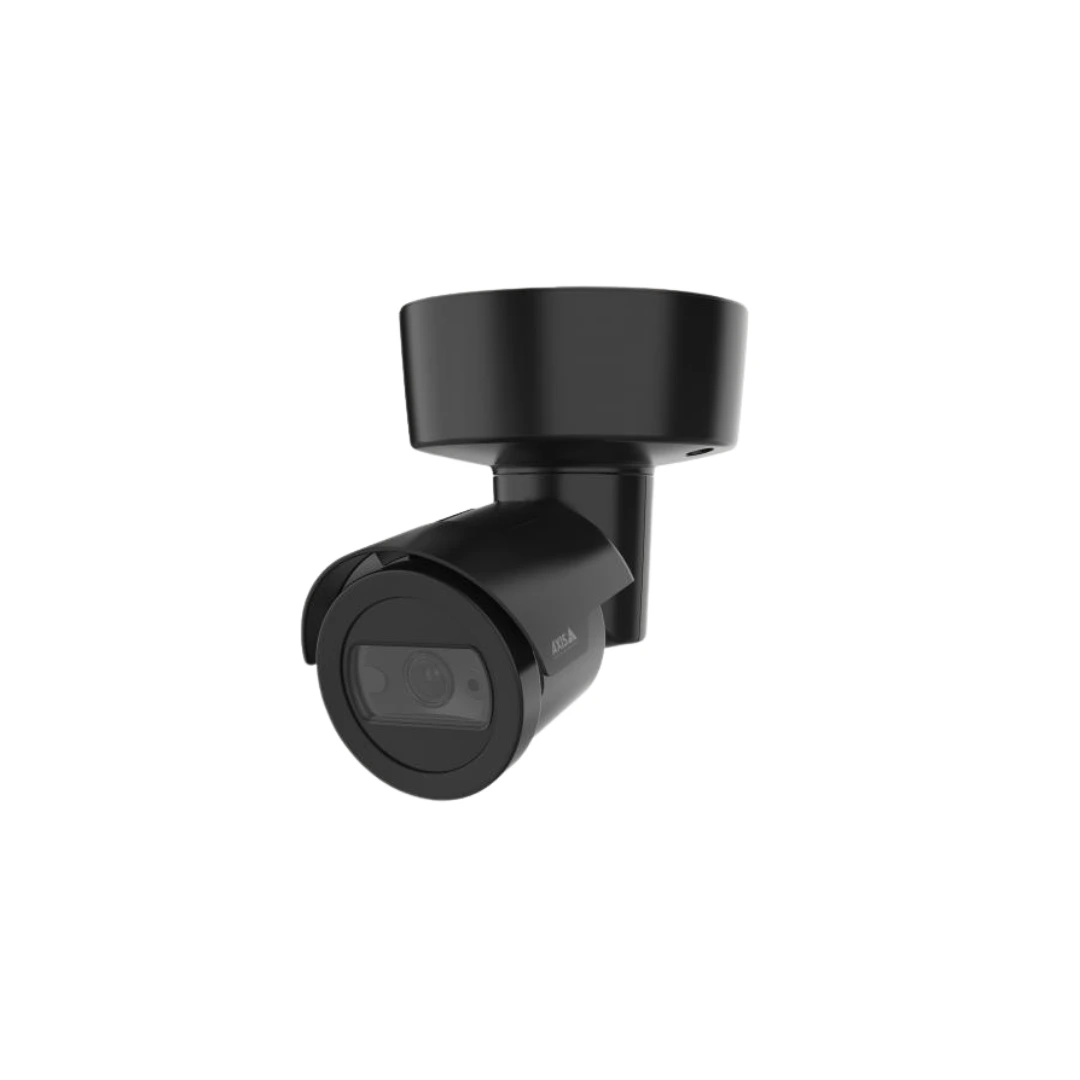

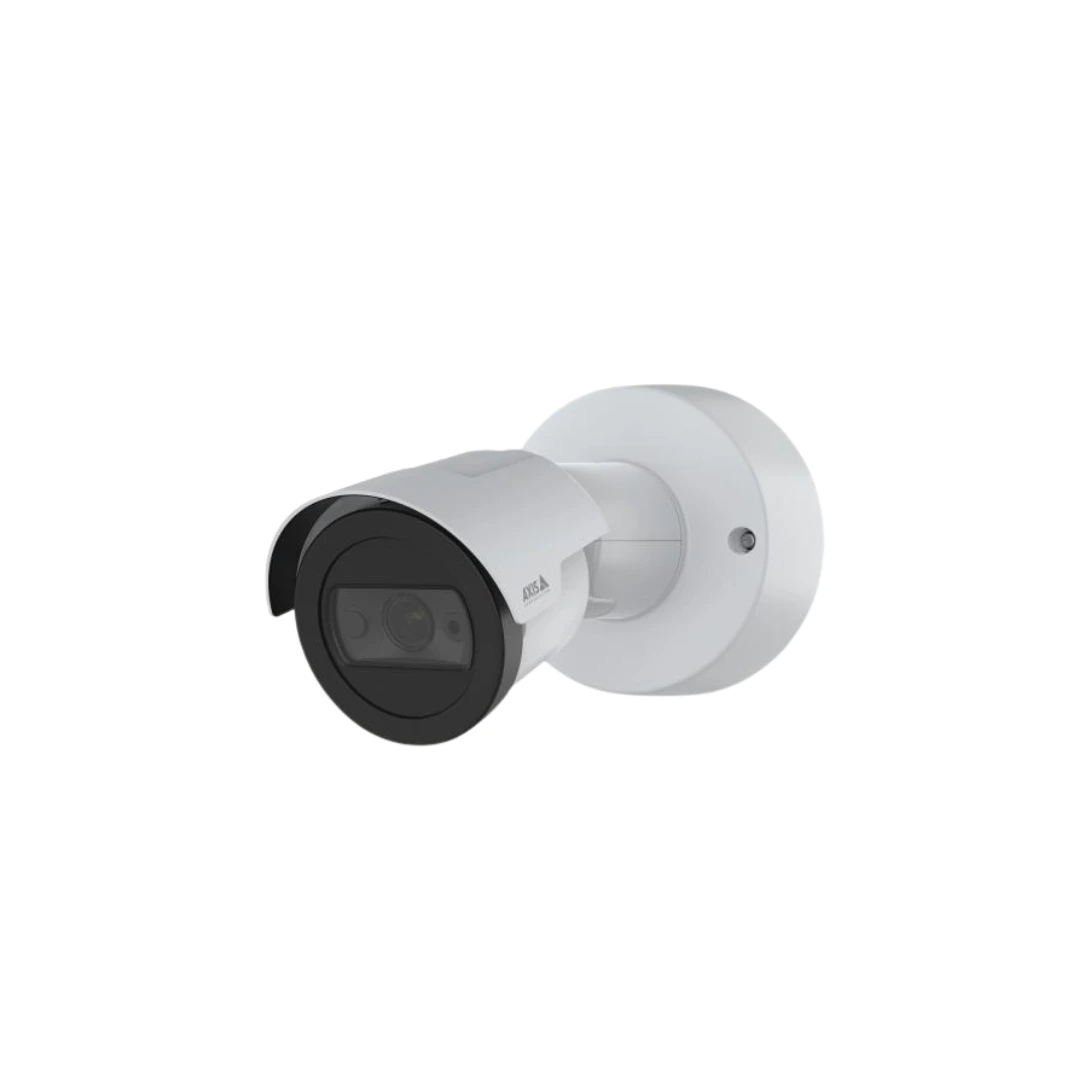

AXIS M2035-LE
Day/night, compact and outdoor-ready bullet style HDTV camera, IP66, IP67, NEMA 4X and IK08-rated. Built-in IR illumination and WDR. Fixed lens with 101° HFOV, corridor format, automatic IR cut filter. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; max HDTV 1080p resolution at 30 fps. Axis’ Zipstream technology for reduced bandwidth and storage needs. Includes a Deep Learning Processing Unit (DPLU) for advanced analytics. Axis Object Analytics, video motion detection and active tampering alarm. Memory card slot for optional local video storage. AXIS Edge Vault for increased Cyber Security. Integrated bracket for easy mounting on wall and ceiling. Power over Ethernet. Operating conditions -30 °C to 50 °C (-22 °F to 122 °F). Midspan not included.
Technical specifications
Camera
Image sensor CMOS
Image sensor size 1/2.9
Lightfinder Lightfinder
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 1920x1080
Max frames per second 25/30
Electronic image stabilization –
Lens
Focal length –
Optical zoom –
Horizontal field of view –
Vertical field of view –
Compression
Property description Property value
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Network
PoE Class 3
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus –
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK08
IP rating IP66, IP67
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Power
Power (max) –
Power (average) –
