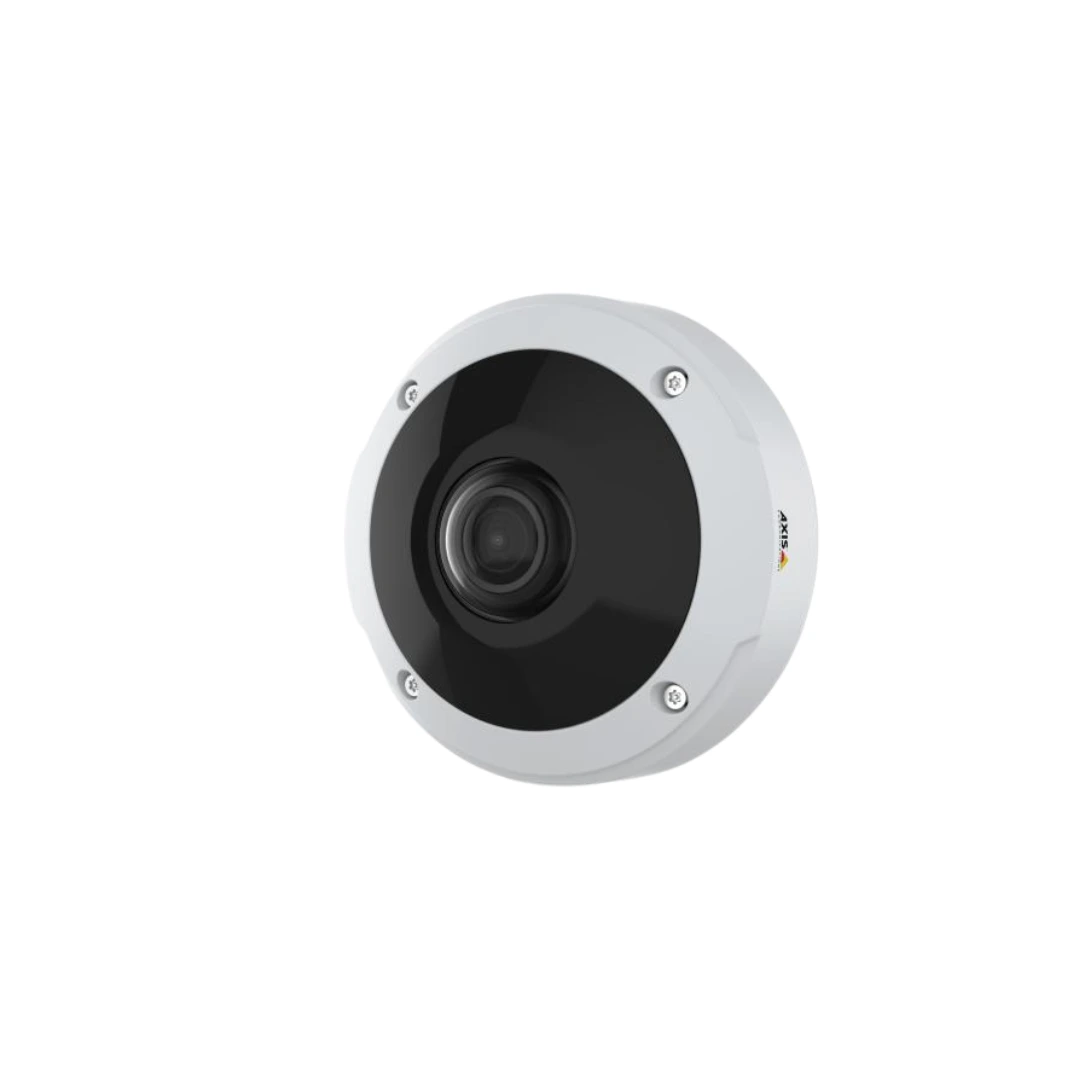

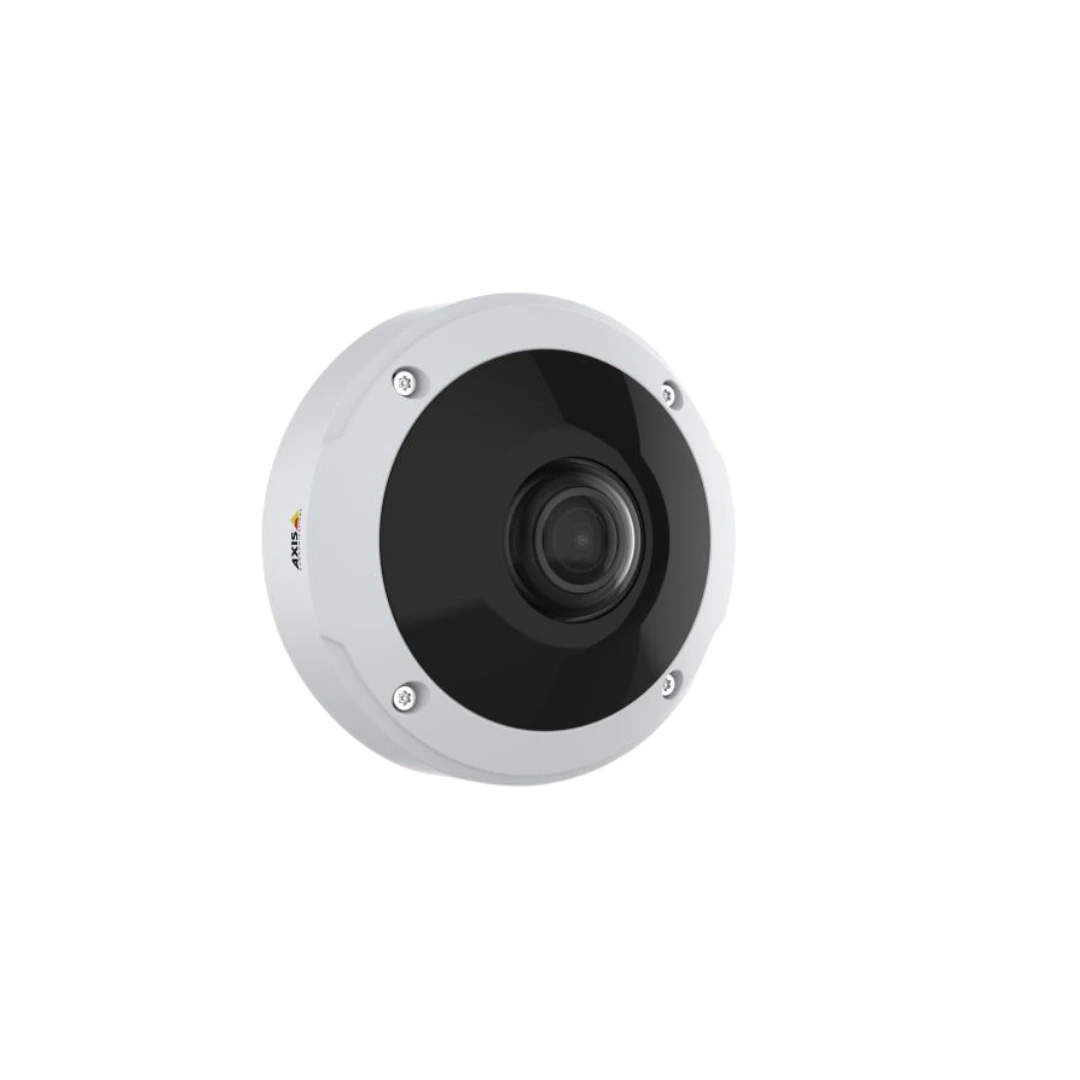

AXIS M3057-PLVE MkII

With its 6 MP sensor, AXIS M3057-PLVE MK II offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. This compact mini dome also offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR allows for surveillance in pitch darkness. Furthermore, enhanced security functionality prevents unauthorized access and safeguards your system.

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1/1.8

Lightfinder Lightfinder

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.16 lux

Min illumination/ light sensitivity (B/W) 0 lux

Video

Max video resolution 2016x2016

Max frames per second 50/60

Day and Night functionality Yes

Electronic image stabilization –

Lens

Focal length 1.56 mm

Horizontal field of view 183 °

Vertical field of view 183 °

Pan, Tilt, Zoom

Property description Property value

Remote PTRZ –

Compression

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Audio

Audio Support Yes

Built-in microphone –

Network

PoE Class 3

Wireless –

Security

Signed firmware Yes

Secure boot Yes

Axis Edge Vault Yes

General

Remote focus –

Remote zoom –

Built-in IR Yes

Local storage (memory card slot) Yes

Operating temperature -40 to 50 °C

Outdoor Ready Yes

Vandal rating IK10

IP rating IP66

Designed for repaint –

Sustainability PVC free
