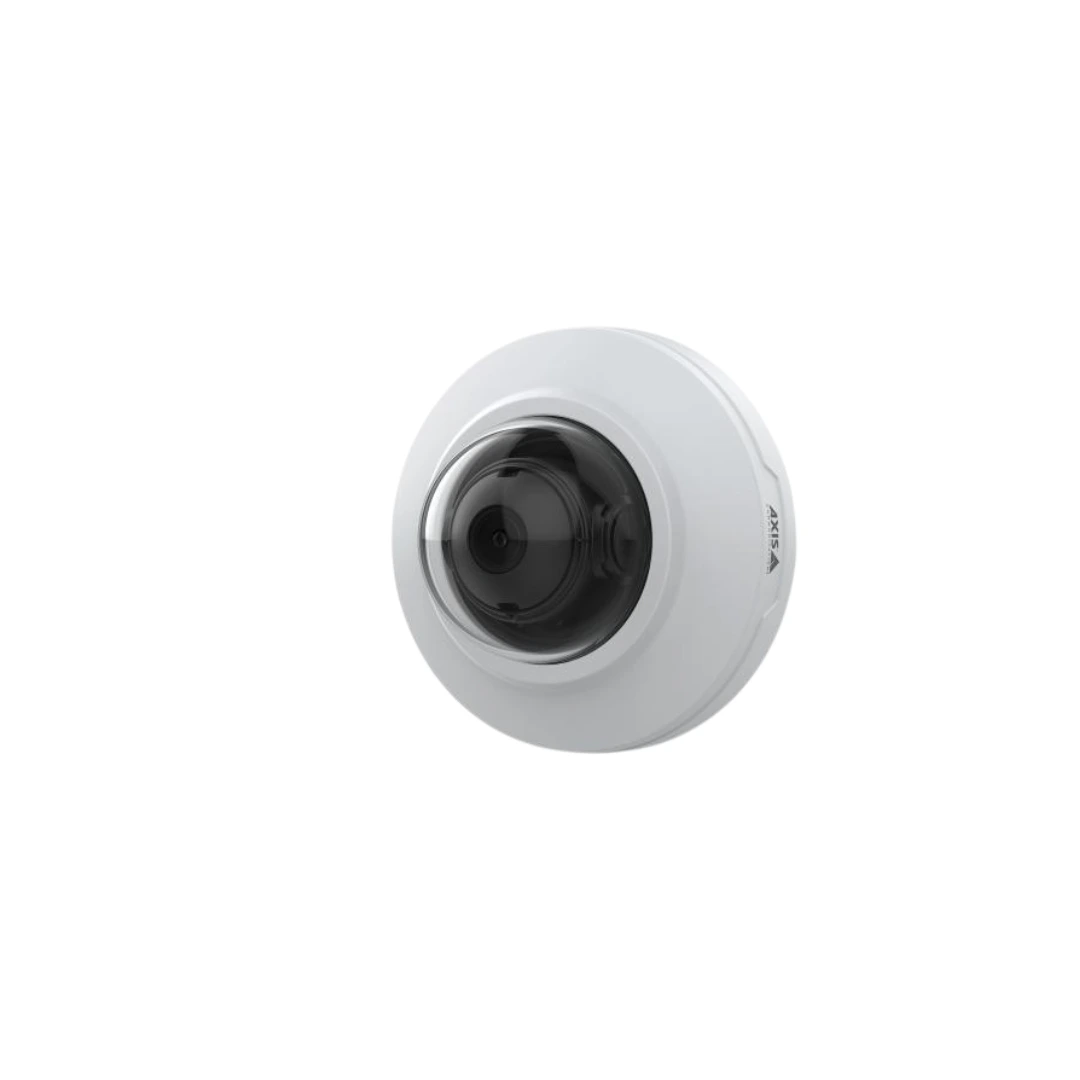

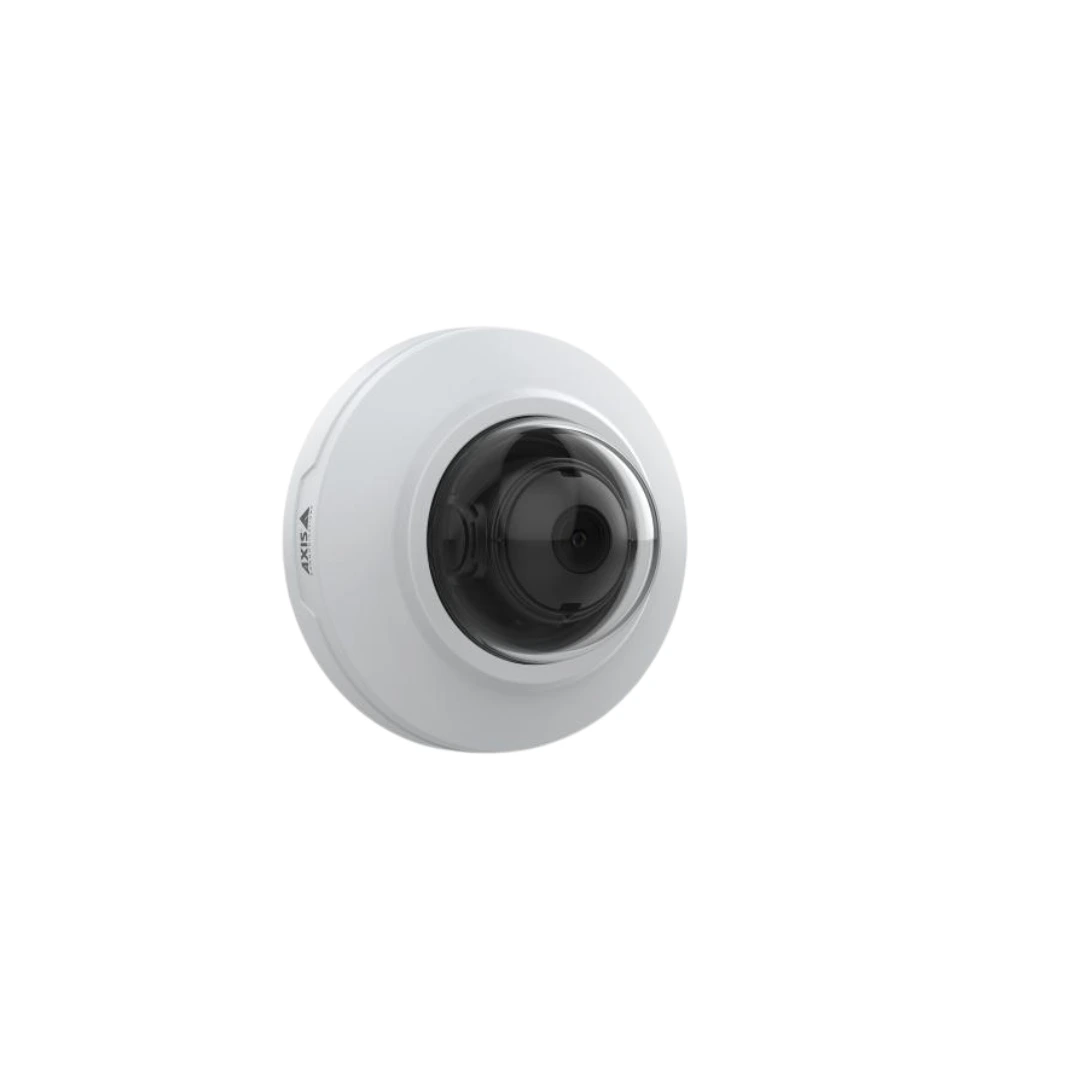

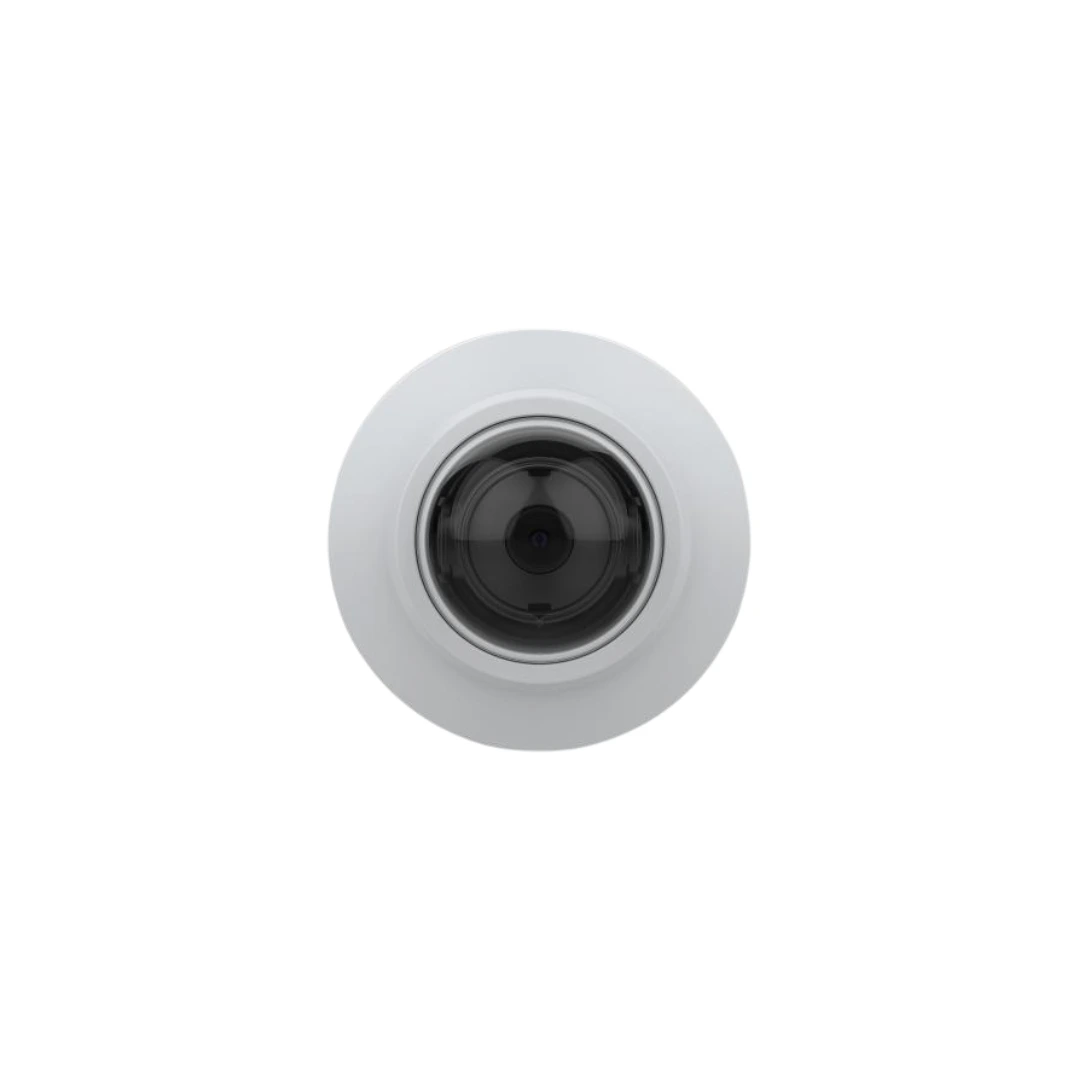

AXIS M3085-V

AXIS M3085-V is an ultra-compact, indoor fixed mini dome with Deep Learning Processing Unit (DLPU). Dust - and IK08 vandal-resistant casing, fixed lens, horizontal/vertical field of view 102°/55°. D/N functionality with automatically removable IR-cut filter. Lightfinder. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; max 2MP at 30 fps with WDR. Zipstream for reduced bandwidth and storage. Audio and I/O with optional accessories. MicroSD memory card slot for local storage. Axis Object Analytics, video motion detection and active tampering alarm. Axis Edge Vault for increased cybersecurity.

Technical specifications

Camera
Image sensor CMOS
Image sensor size 1/2.9
Lightfinder Lightfinder
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.18 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Max video resolution 1920x1080
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization
Lens
Focal length 3.1 mm
Horizontal field of view 102 °
Vertical field of view 55 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ
Compression
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone
Network
PoE Class 2
Wireless
Security
Signed firmware Yes
Secure boot Yes
Axis Edge Vault Yes
General
Remote focus
Remote zoom
Built-in IR
Local storage (memory card slot) Yes
Operating temperature 0 to 45 °C
Outdoor Ready
Vandal rating IK08
IP rating IP42
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
