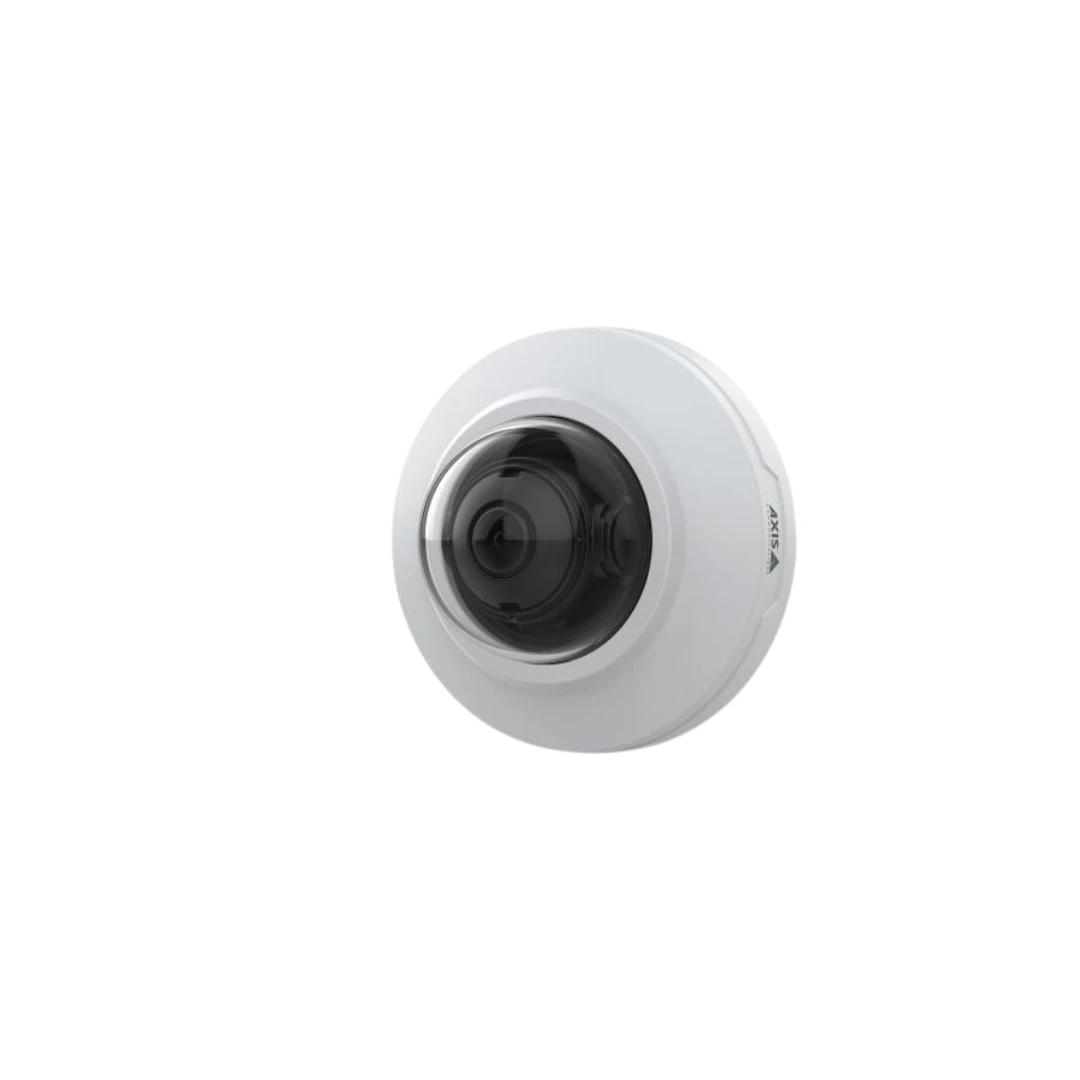

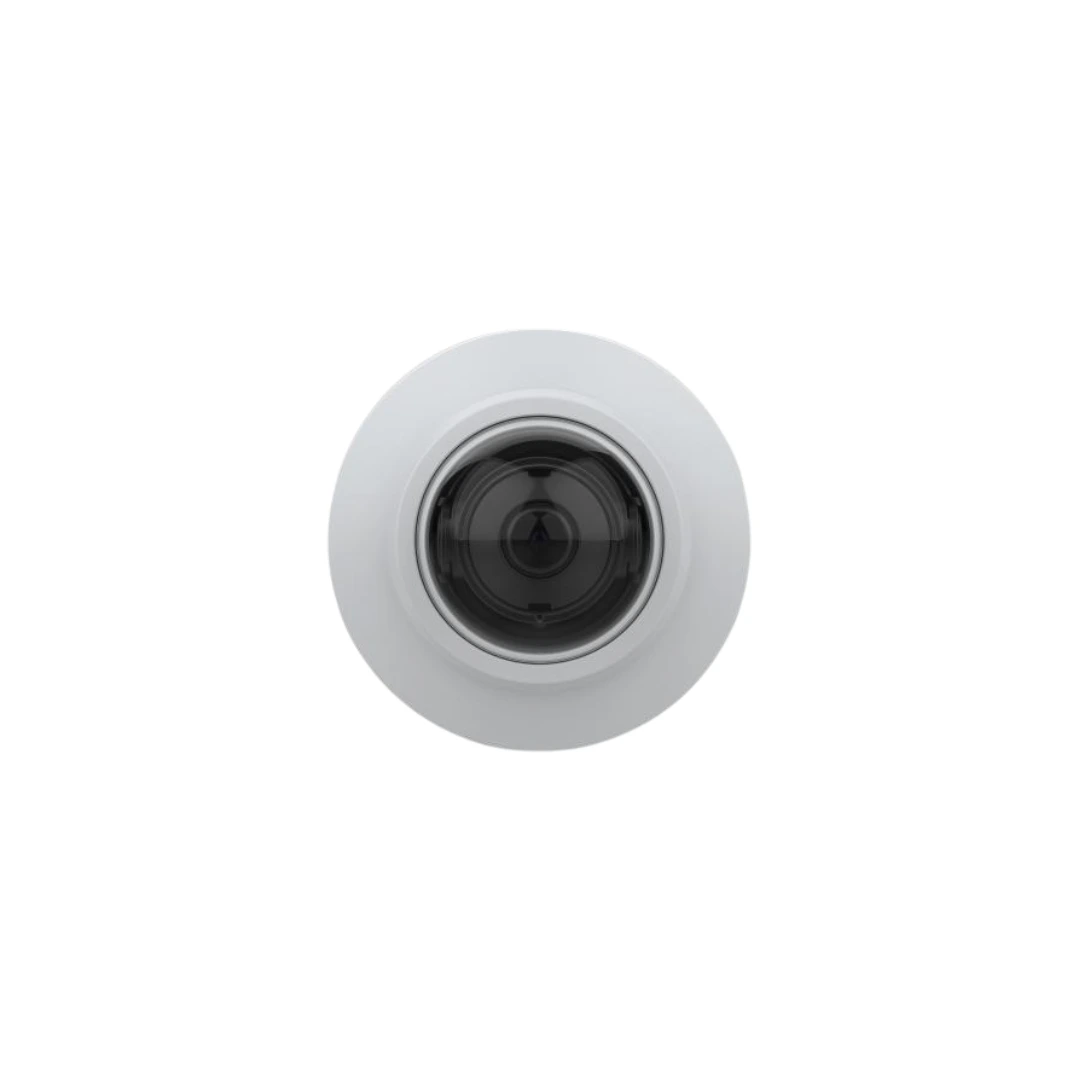

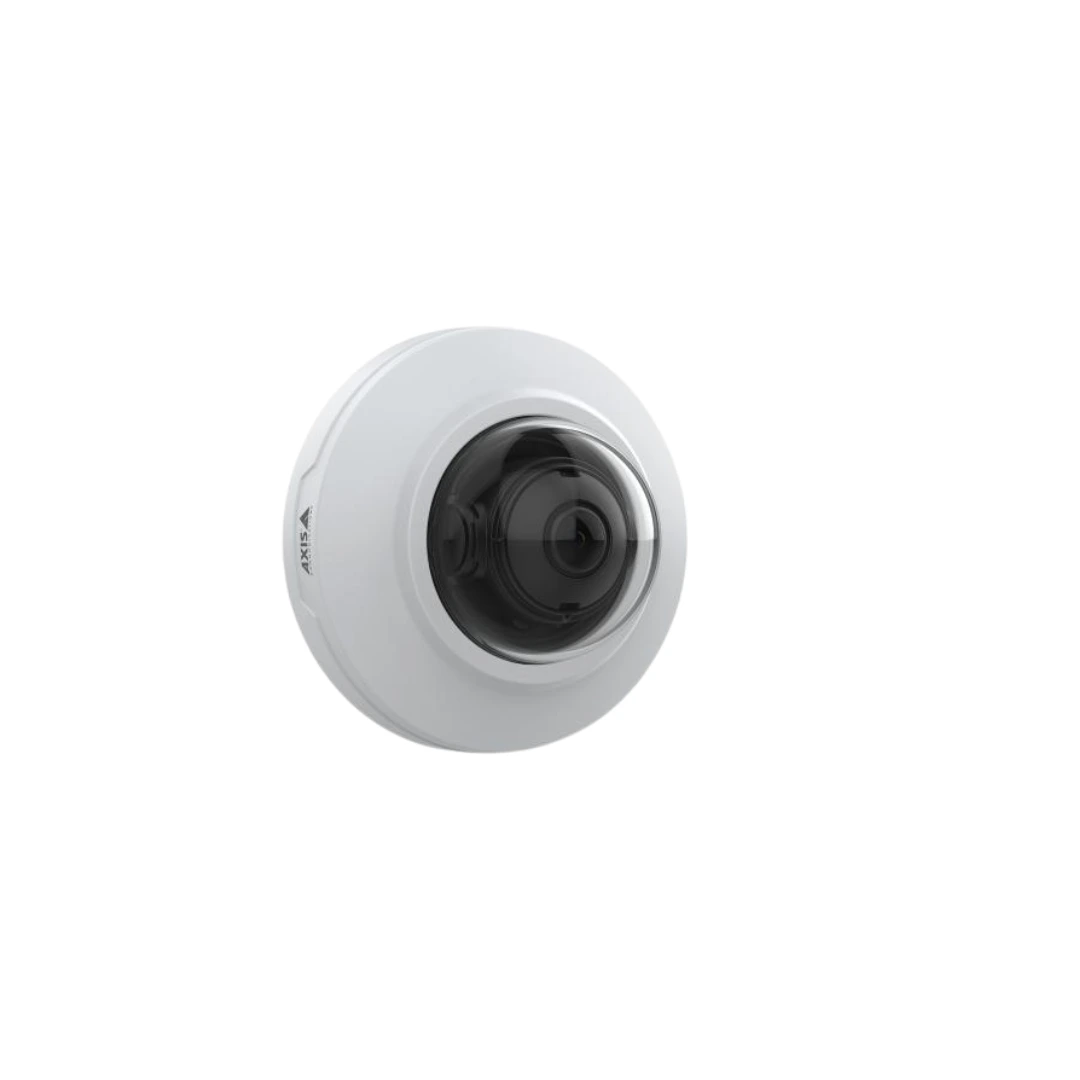

AXIS M3086-V
AXIS M3086-V is an ultra-compact, indoor fixed mini dome with Deep Learning Processing Unit (DLPU). Dust - and IK08 vandal-resistant casing, fixed lens, horizontal/vertical field of view 130°/93°. D/N functionality with automatically removable IR-cut filter. Lightfinder. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; max 4MP at 30 fps with WDR. Zipstream for reduced bandwidth and storage. MicroSD memory card slot for local storage. Audio and I/Owith optional accessories. Axis Object Analytics, video motion detection and active tampering alarm. Axis Edge Vault for increased cybersecurity Powered by IEEE 802.3af/802.3at Type 1 Class 2
Technical specifications
Camera
Image sensor CMOS
Image sensor size 1/2.7
Lightfinder Lightfinder
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.19 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Max video resolution 2688x1512
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Focal length 2.4 mm
Horizontal field of view 130 °
Vertical field of view 93 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone –
Network
PoE Class 2
Wireless –
Security
Signed firmware Yes
Secure boot Yes
Axis Edge Vault Yes
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature 0 to 45 °C
Outdoor Ready –
Vandal rating IK08
IP rating IP42
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
