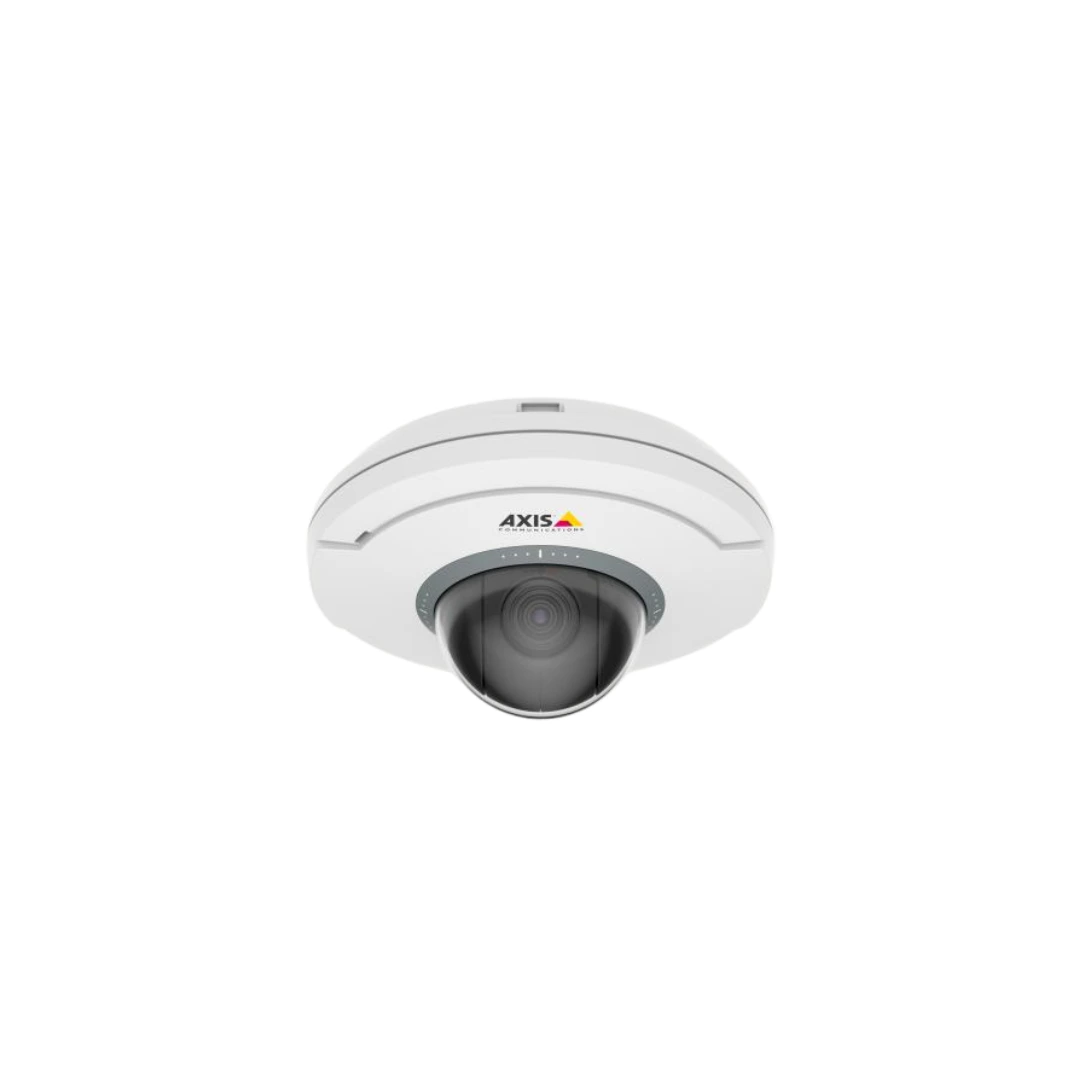

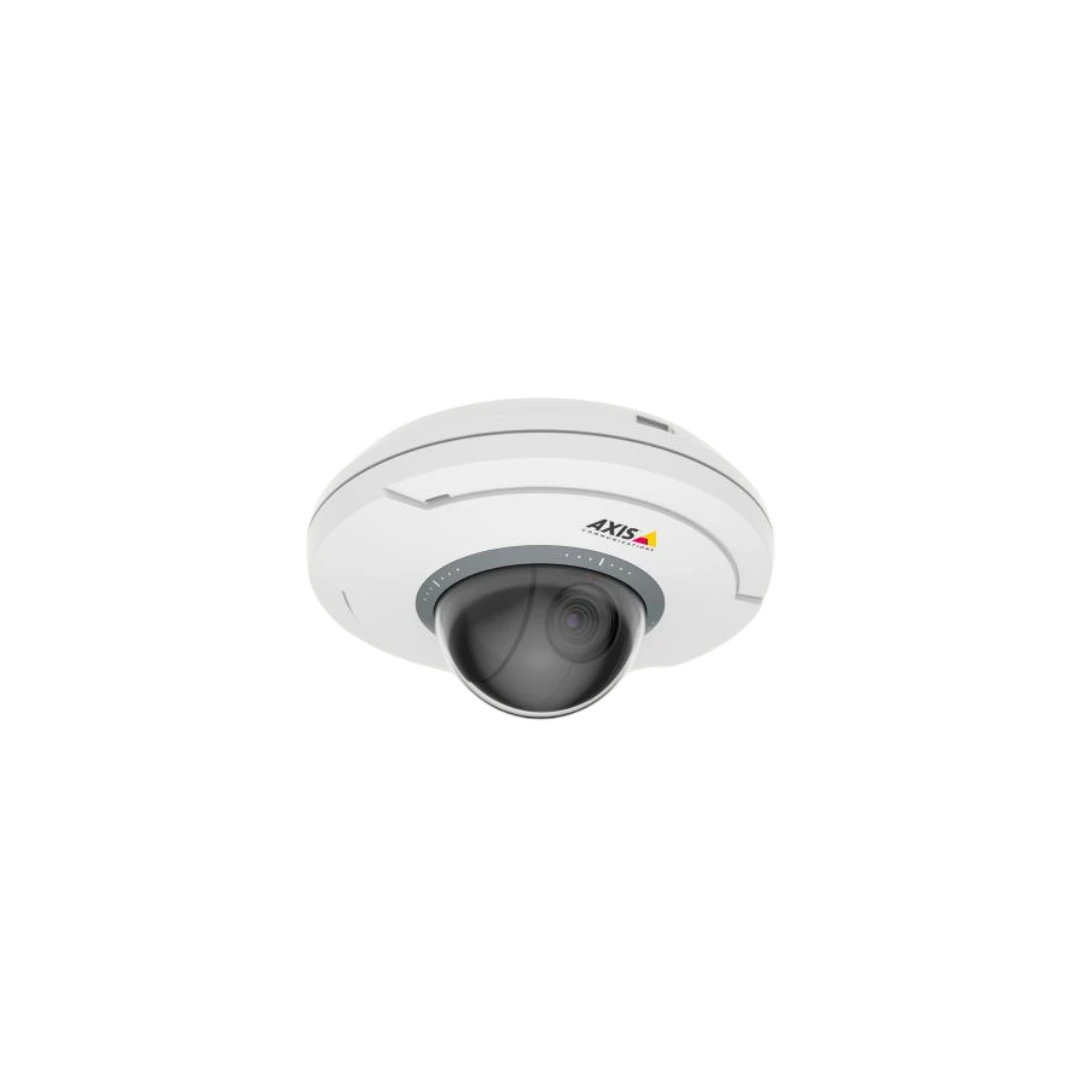

AXIS M5074 PTZ

Ceiling-mount mini PTZ dome camera with 5x Optical zoom and autofocusing, HDTV 720p (1280x720) 30fps in H.264/H.265 with Zipstream and Motion JPEG. IP51 protection against dust and water. Featuring a built-in microphone, includes built-in analytics such as scream detection.

 Only PoE, midspan not included. Surface ceiling mounting brackets included

Technical specifications

Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W)
General
Built-in IR
OptimizedIR
Local storage (memory card slot) Yes
Operating temperature 0 to 45 °C
Outdoor Ready
Vandal rating
IP rating IP51
Designed for repaint Yes
Analytics
Autotracking version
Orientation aid
Video
Max video resolution 1280x720
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization
Lens
Focal length 2.2 - 11.0 mm
Horizontal field of view 71 - 14 °
Vertical field of view 40-8 °
Pan, Tilt, Zoom
Pan range +/-179
Tilt range 90
Guard tour
Optical zoom 5
Digital zoom 12
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone Yes
System Integration
Audio detection Yes
Active tampering Yes
Alarm inputs/outputs
Network
PoE Class 3
Security
Signed firmware Yes
Secure boot
TPM
