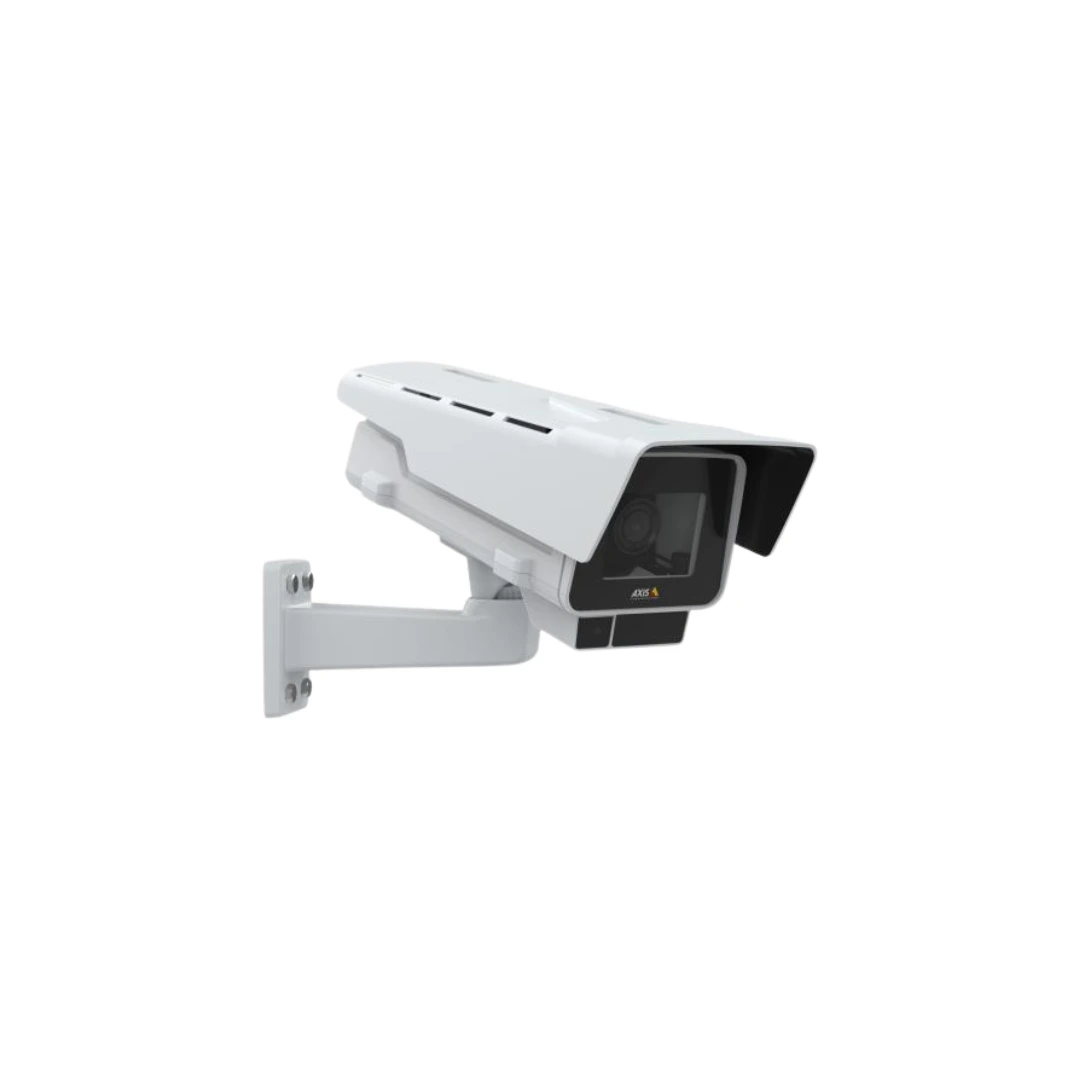

AXIS P1377-LE

Outdoor, NEMA 4X, IP66/67 and IK10-rated, 5MP resolution, day/night, fixed box camera providing providing Forensic WDR and Lightfinder technology. OptimizedIR, a power-efficient 850nm IR LED technology covering 50 meters (130 feet).Includes an IR corrected varifocal 2.8-8 mm F1.2 P-Iris lens and remote back focus. Camera also supports CS-mount DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 5MP at 50/60 fps. Axis Zipstream technology for reduced bandwidth and storage needs. Video motion detection, shock detection, active tampering alarm and open casing intrusion switch. Corridor format, barrel distortion correction, defogging and electronic image stabilization. Scene profiles. Two-way audio, audio detection with optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Operation in -40°C to +60°C. PoE+ class4 or 12-28VDC input. Support for optional AXIS P13 Weathershield Extension A. Includes pre-mounted AXIS Fixed Box IR illuminator Kit A, removable sunshield, wall bracket, Torx T20 screw driver and IP66/67- rated cable glands. Midspan or power supply not included.

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1/2.7

Lightfinder Lightfinder

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.13 lux

Min illumination/ light sensitivity (B/W) 0.03 lux

Video

Max video resolution 2592x1944

Max frames per second 180

Electronic image stabilization Yes

Lens

Focal length 2.8 - 8 mm

Horizontal field of view 90-38 °

Vertical field of view 67-28 °

Lens mount CS

Replaceable lens Yes

Compression

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Audio

Audio Support Yes

Network

Property description Property value

PoE Class 4

Wireless –

Security

Signed firmware Yes

Secure boot Yes

General

Remote focus –

Remote zoom –

Built-in IR Yes

Local storage (memory card slot) Yes

Operating temperature -40 to 60 °C

Outdoor Ready Yes

Vandal rating IK10

IP rating IP66,IP67

Designed for repaint Yes

Sustainability PVC free

Power

Power (max) 19.1 W

Power (average) 10.5 W

DC input voltage 12-28 V
