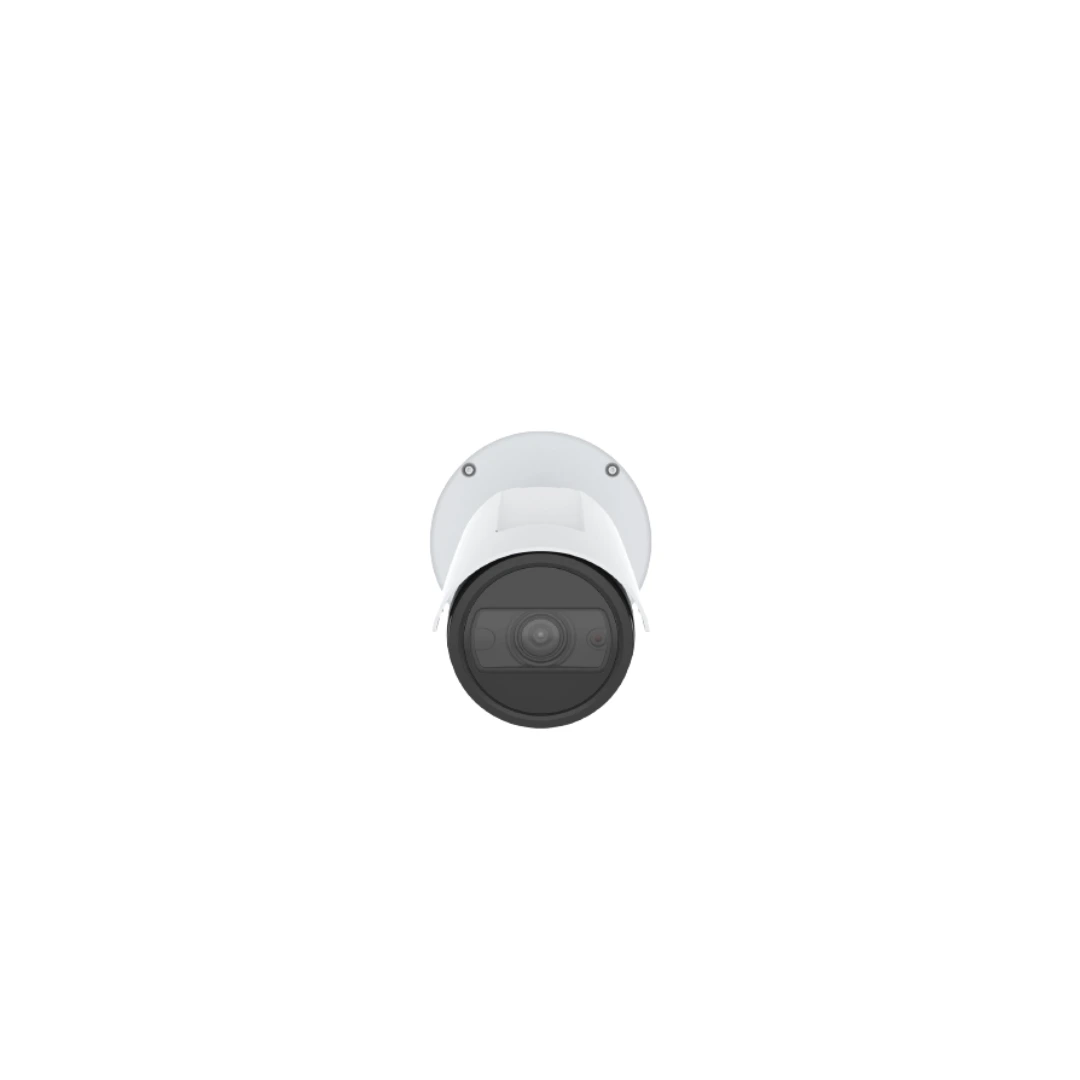

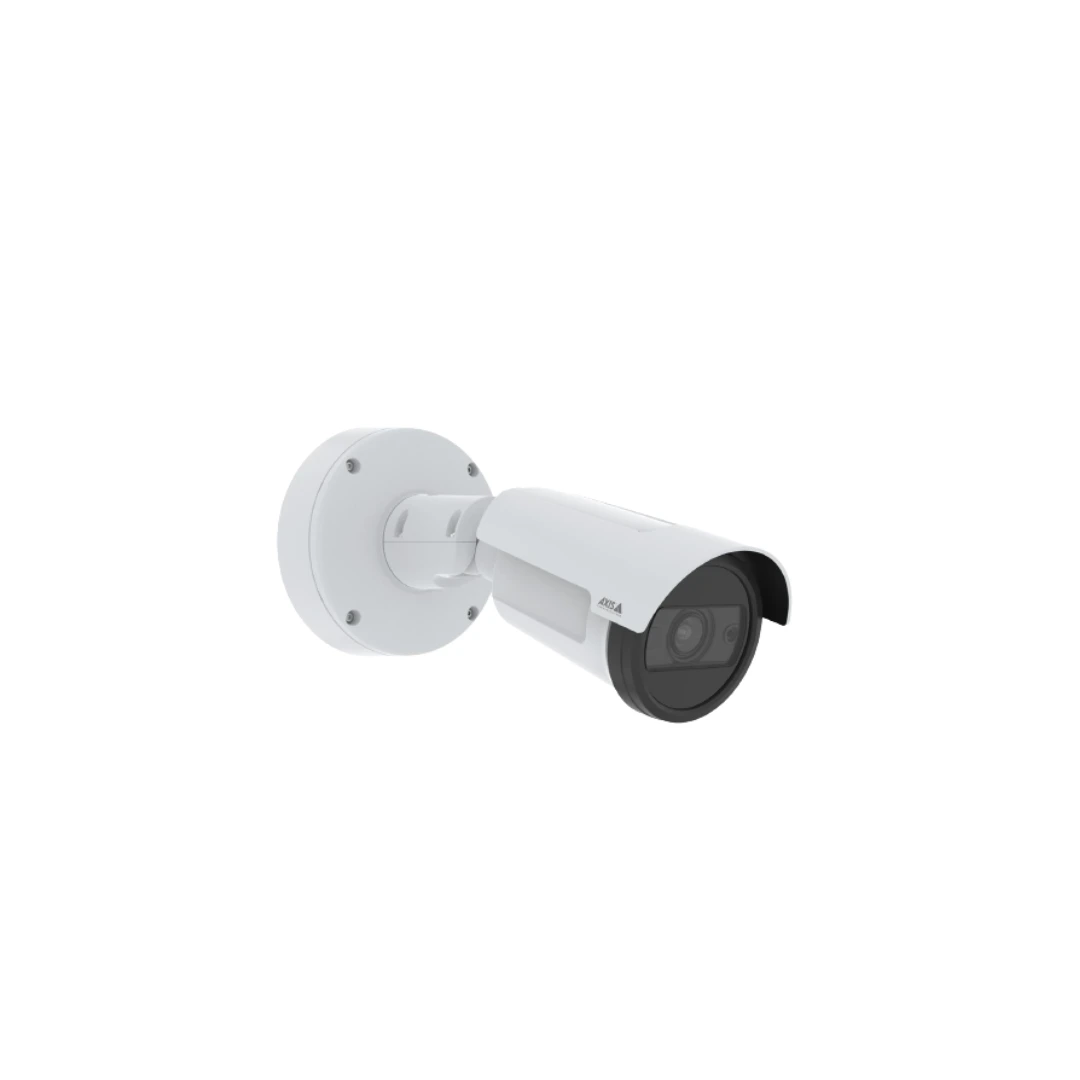

Compact outdoor, NEMA 4X, IP66, IP67 and IK10-rated 5MP resolution, day/night, fixed bullet camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0 and OptimizedIR. Varifocal 2.8-8 mm P-iris lens with remote zoom and focus. Multiple, individually configurable H.264/H.265 with Zipstream and Motion JPEG. 5MP at 25/30. Axis Zipstream technology for reduced bandwidth and storage needs. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm.
Technical specifications
Camera
Image sensor CMOS
Image sensor size 1/2.7
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.13 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 2592x1944
Max frames per second 180
Electronic image stabilization –
Lens
Focal length 2.8 - 8 mm
Optical zoom 2.9
Horizontal field of view 106-38 °
Vertical field of view 78-29 °
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support
Yes
Network
PoE Class 3
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Power
Power (max) 13.0 W
Power (average) 5.2 W
