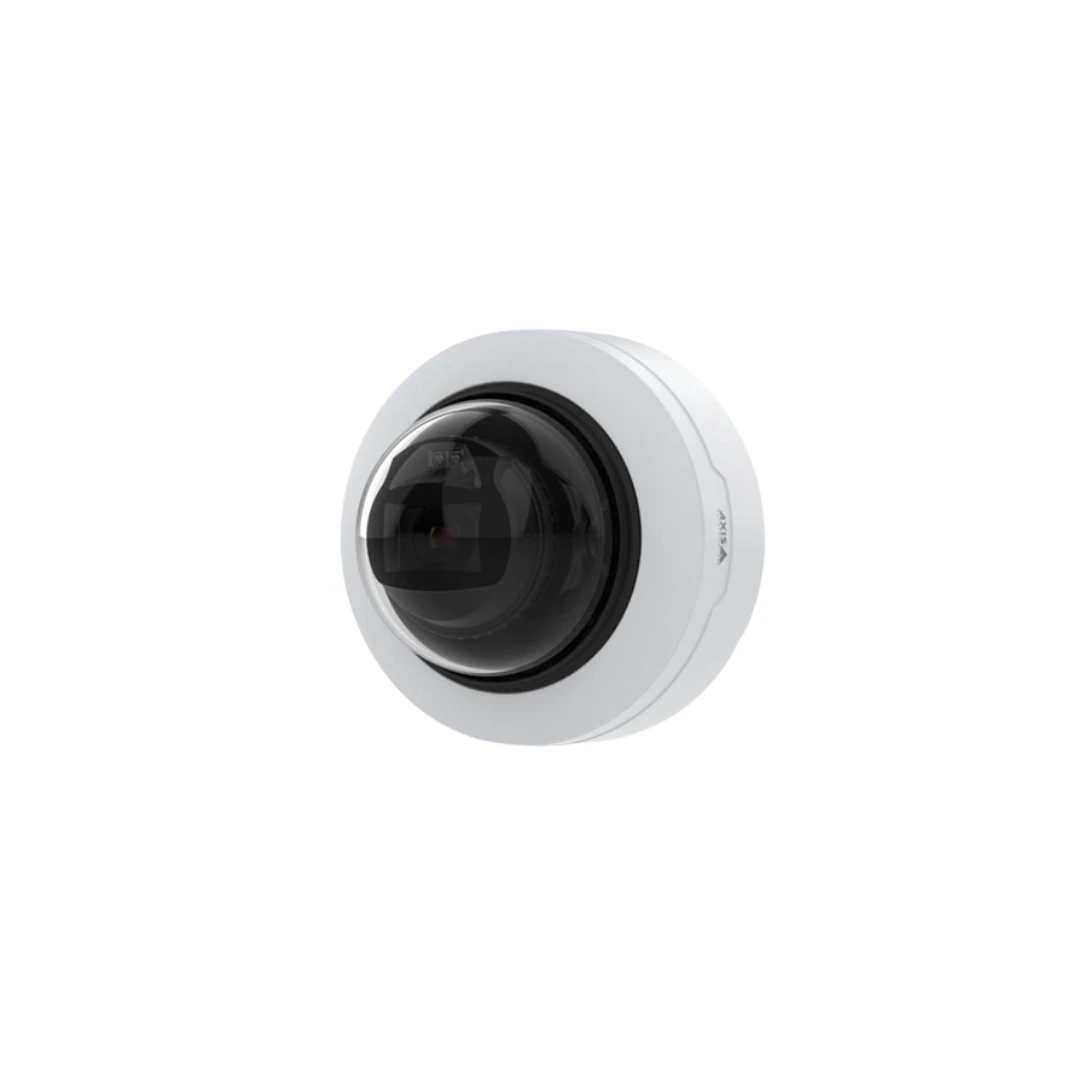

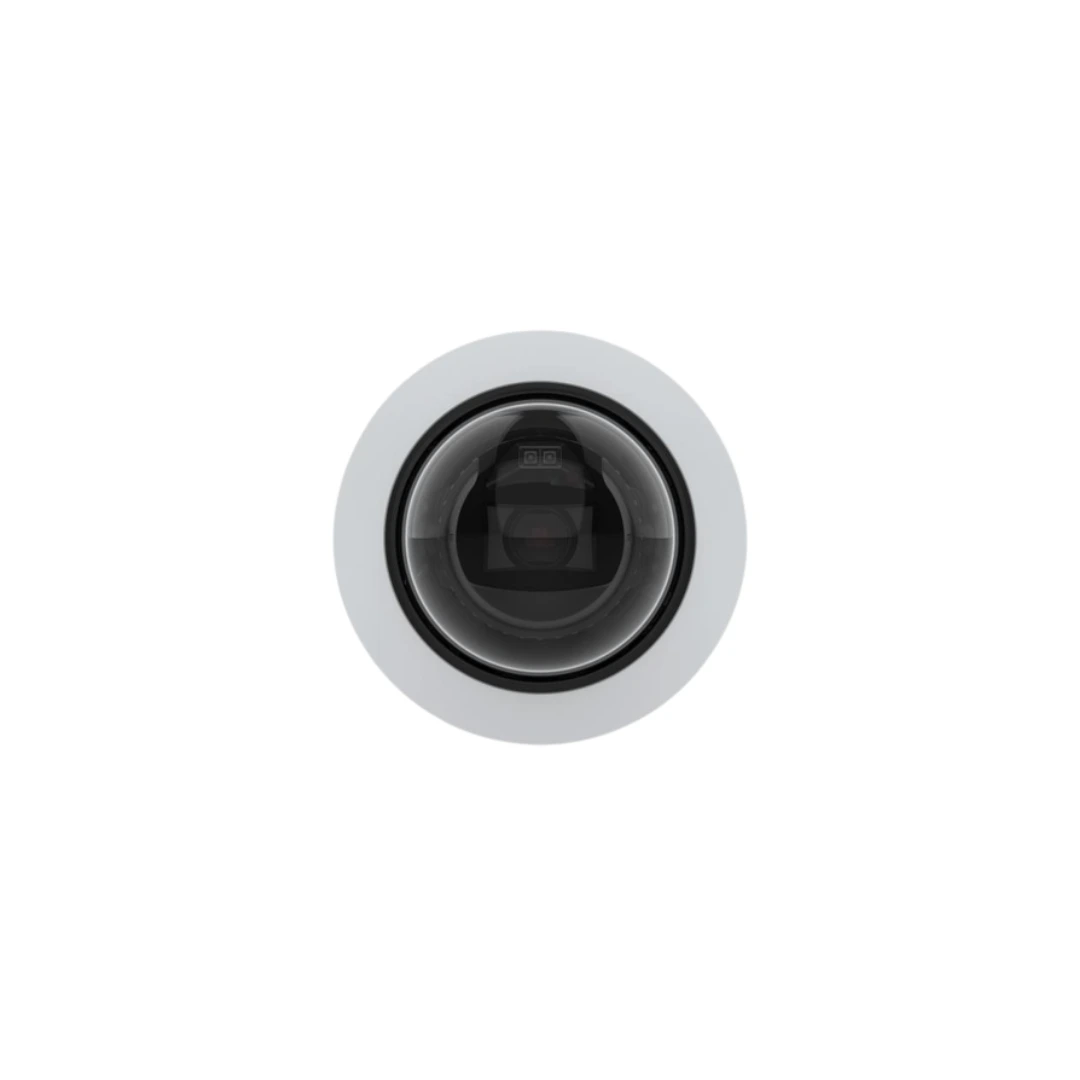

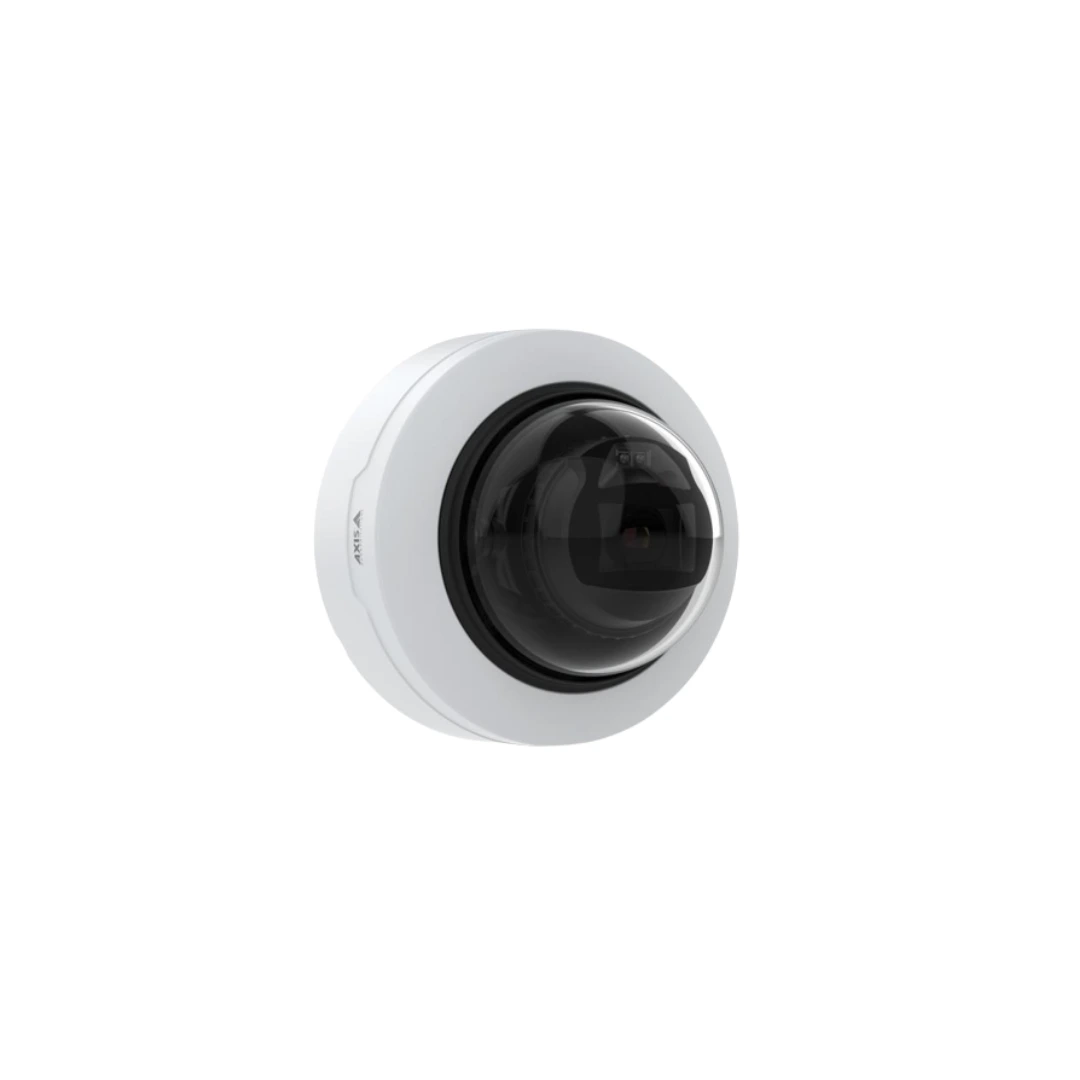

High-performance fixed dome camera with Deep Learning Processing Unit (DLPU). Forensic WDR, Lightfinder 2.0 and Optimized IR. Discreet, dust- and IK10 vandal-resistant indoor casing.
Varifocal 3.4-8.9 mm P-Iris lens with remote zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. HDTV 1080p stream up to 60 fps, 30fps with WDR. AXIS Object Analytics, Video motion detection and tampering alarm. Two-way audio and audio detection. Supervised digital input / digital output for alarm / event handling. MQTT support. Axis Edge Vault for added cyber security. MicroSD memory card slot for local storage. Powered by IEEE 802.3af/802.3at Type 1 Class 3. Includes mounting bracket.
Technical specifications
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Focal length 3.4 - 8.9 mm
Horizontal field of view 100-36 °
Vertical field of view 53-20 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware Yes
Secure boot Yes
Axis Edge Vault Yes
General
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature 0 to 50 °C
Outdoor Ready –
Vandal rating IK10
IP rating IP52
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
