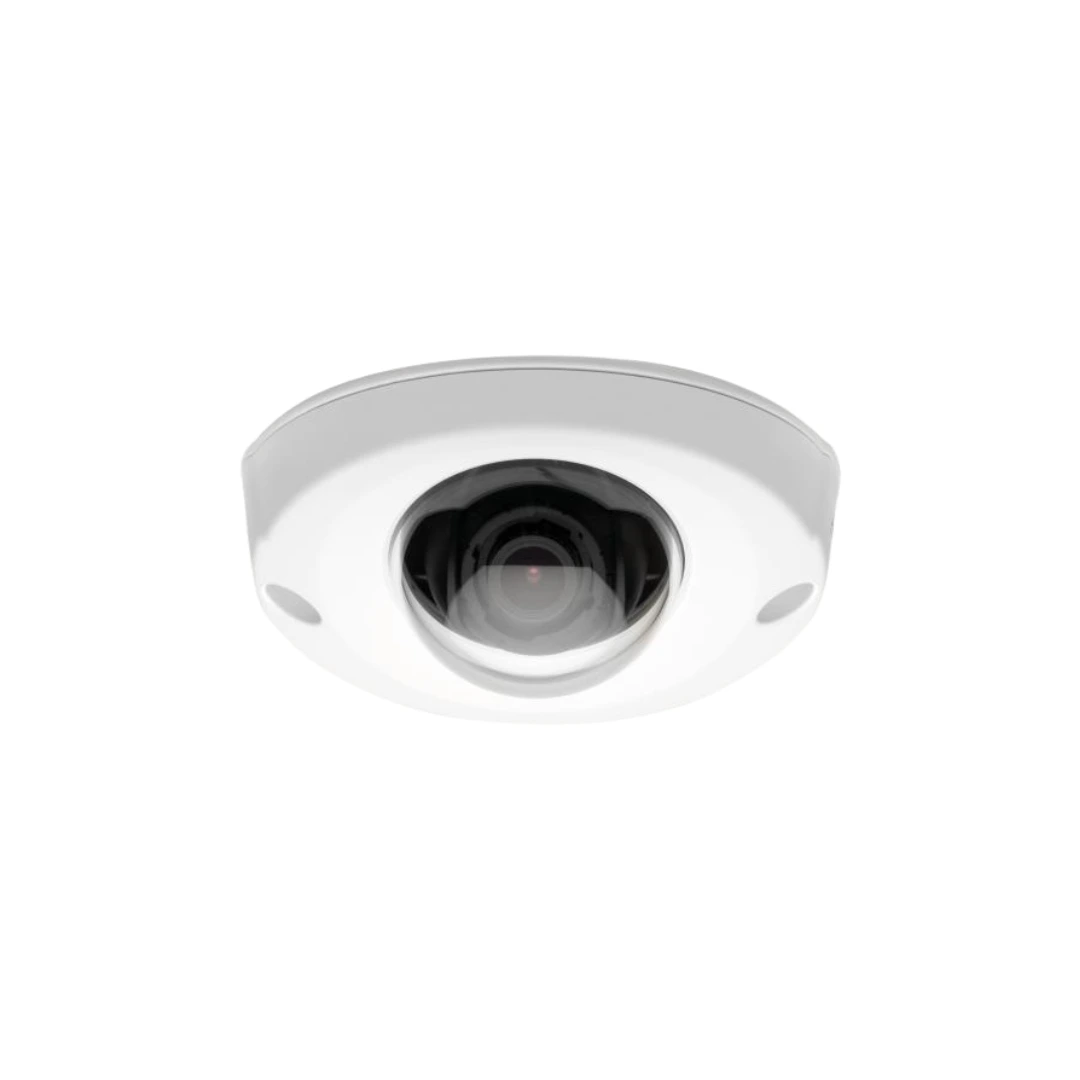

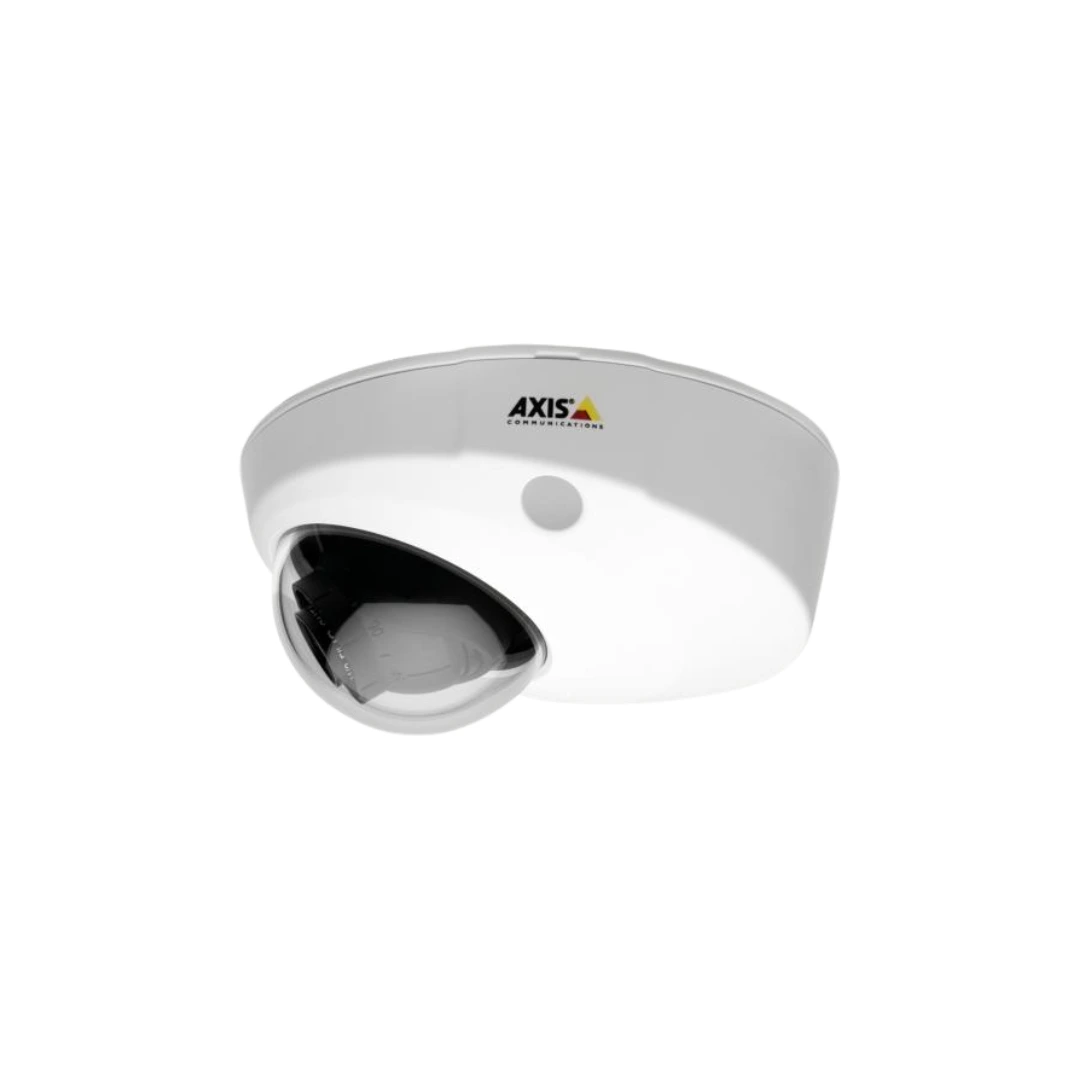

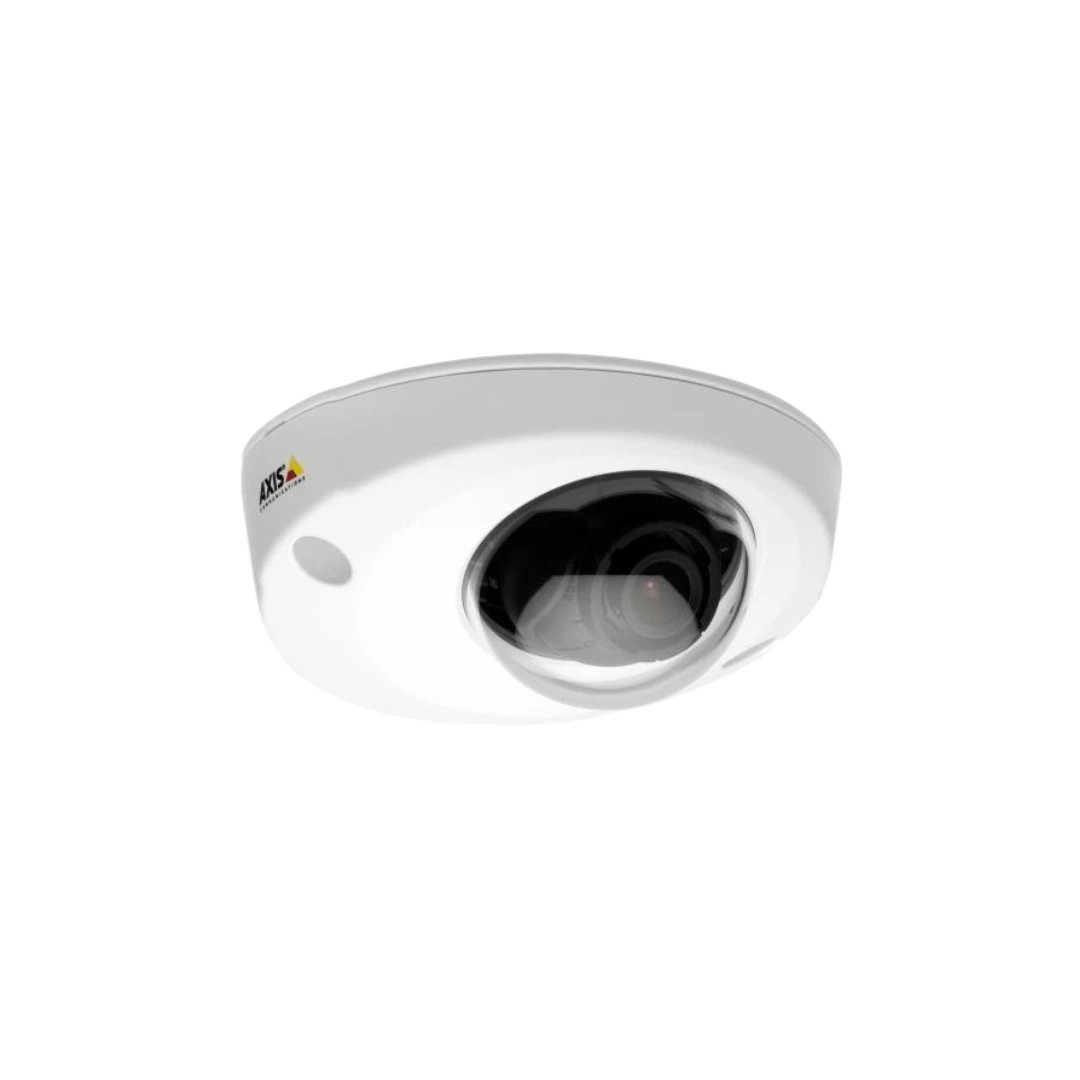

720p fixed dome onboard camera with male RJ-45 network connector. Equipped with 3.6mm, F2.0 lens in ruggedized IP66/67 casing. Includes lens tool, top cover tool, allen key, and drill template.
Camera
Image sensor CMOS
Image sensor size 1/2.9
Lightfinder Lightfinder
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) 0.06 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 1280x720
Max frames per second 25/30
Day and Night functionality –
Electronic image stabilization –
Lens
Focal length 3.6 mm
Horizontal field of view 87 °
Vertical field of view 47 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 2
Wireless –
Security
Signed firmware –
Secure boot –
Axis Edge Vault –
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready –
Vandal rating IK08
IP rating IP66, IP67
Designed for repaint –
Sustainability PVC free
