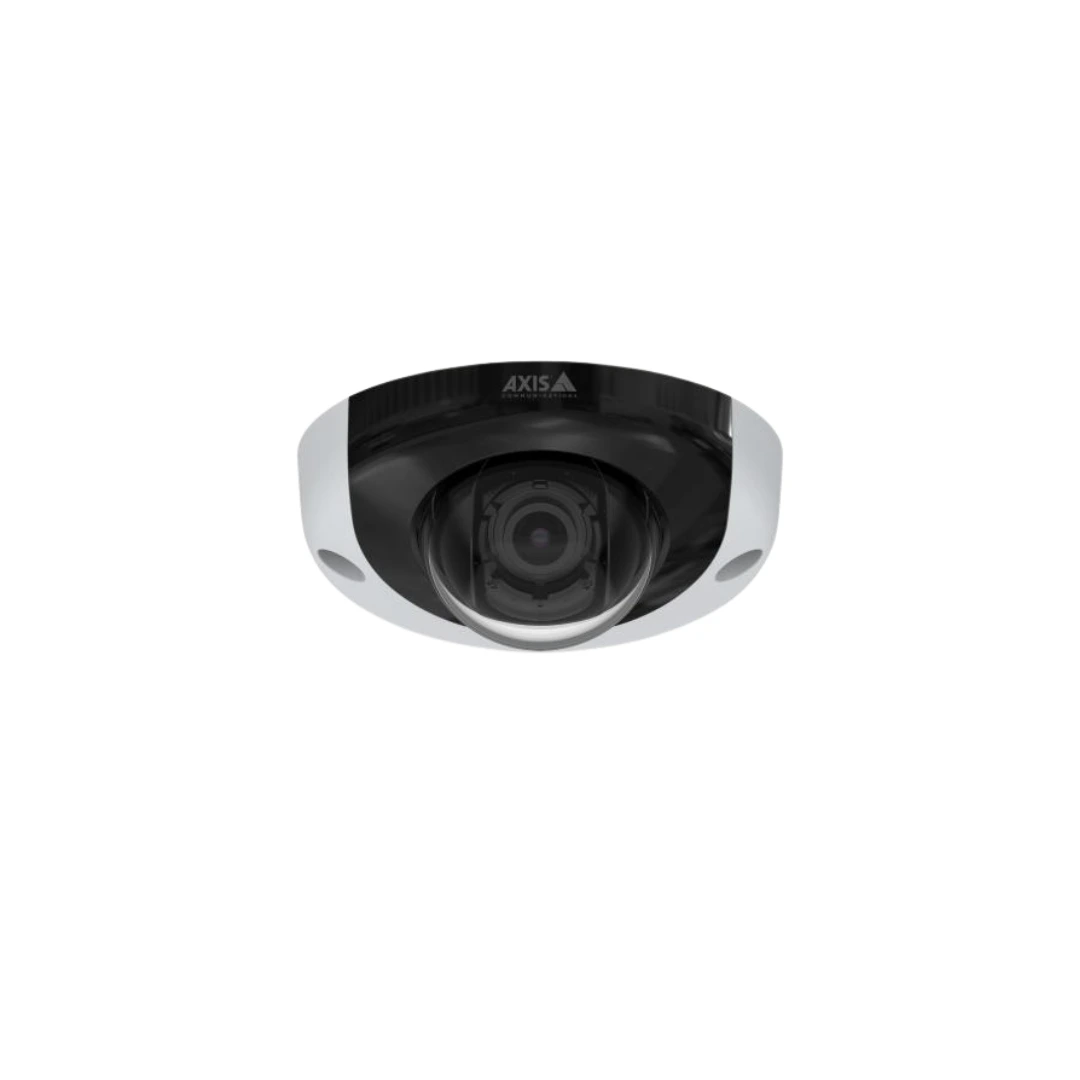

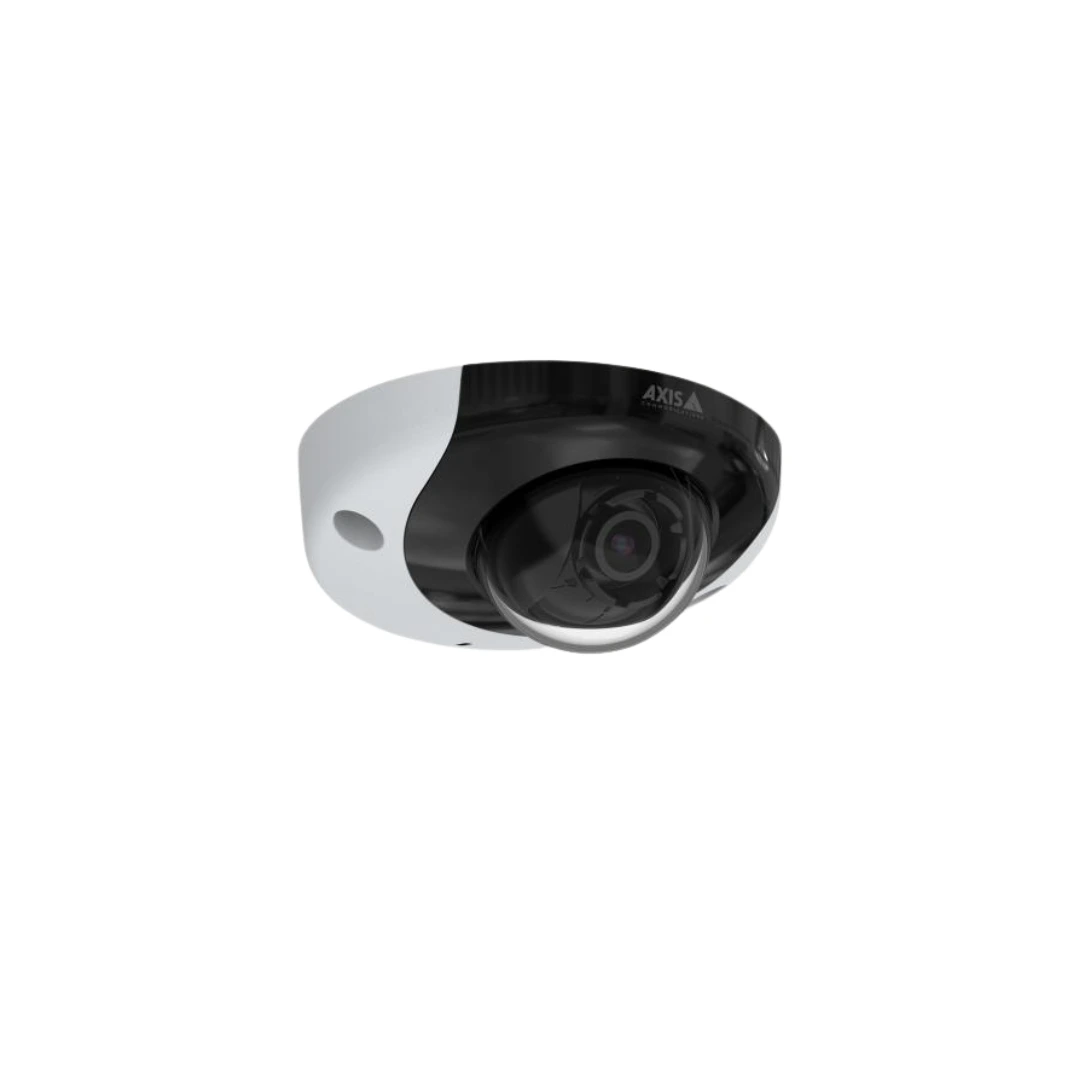

Full HDTV 1080p fixed dome onboard camera for rolling stock and vehicles with male RJ-45 network connector. Invisible 940-nm IR LEDs, I/O for alarm/event handling, built in microphone and external microphone input or line input. Equipped with 2.8mm, F1.6 lens in ruggedized IP66/IP67 and IK10 rated metal casing. Multiple, individually configurable H.264, H.265 and Motion JPEG streams. Forensic WDR, Lightfinder technology and removable IR-cut filter for day/night functionality. Axis Zipstream technology for reduced bandwidth and storage needs, microSD/microSDHC/microSDXC memory card slot for optional local video storage.
Camera
Image sensor CMOS
Image sensor size 1/2.9
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.06 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Video
Max video resolution 1920x1080
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Focal length 2.8 mm
Horizontal field of view 110 °
Vertical field of view 62 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone Yes
Network
PoE Class 3
Wireless –
Security
Signed firmware Yes
Secure boot Yes
Axis Edge Vault –
General
Remote focus –
Remote zoom –
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 55 °C
Outdoor Ready –
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint –
Sustainability PVC free
