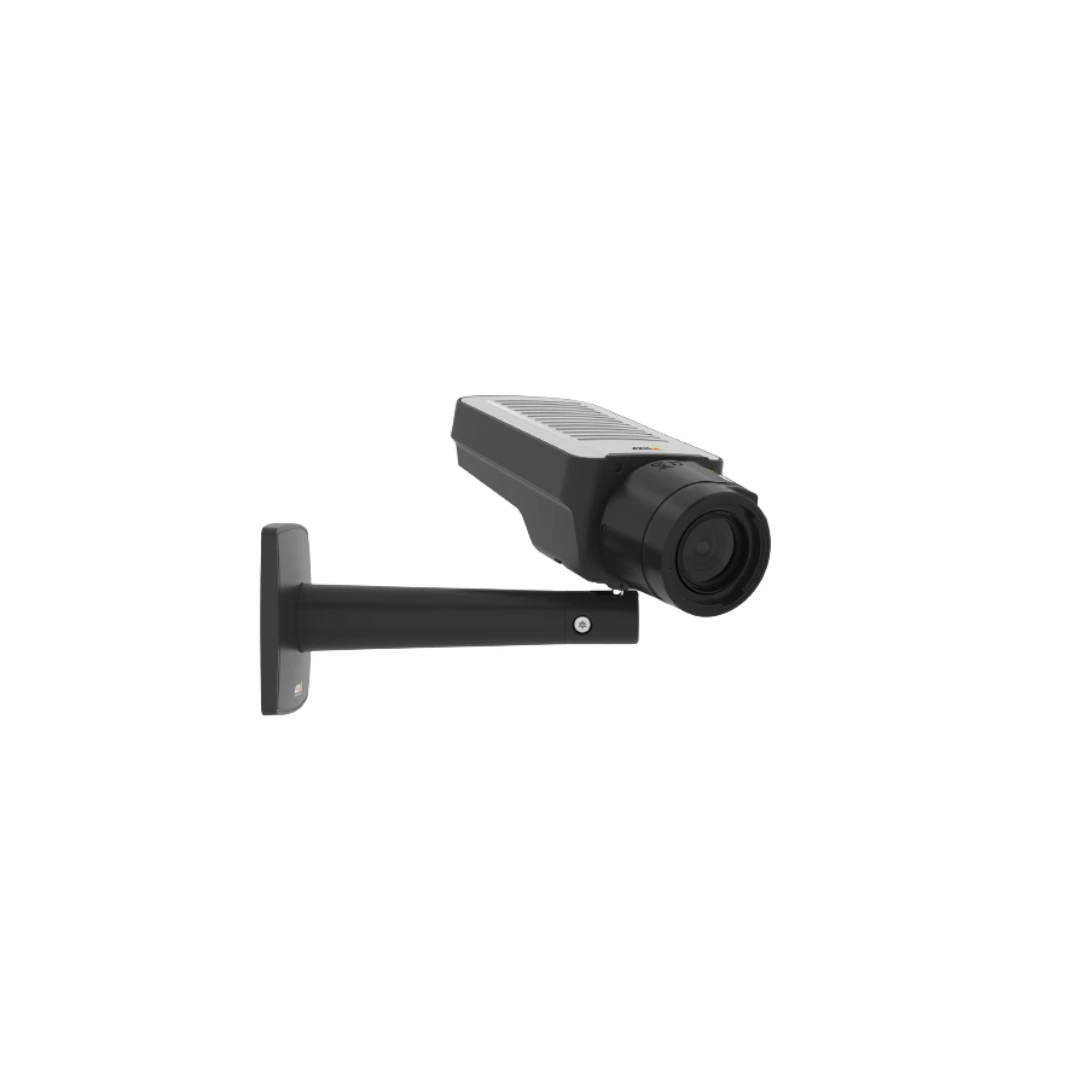

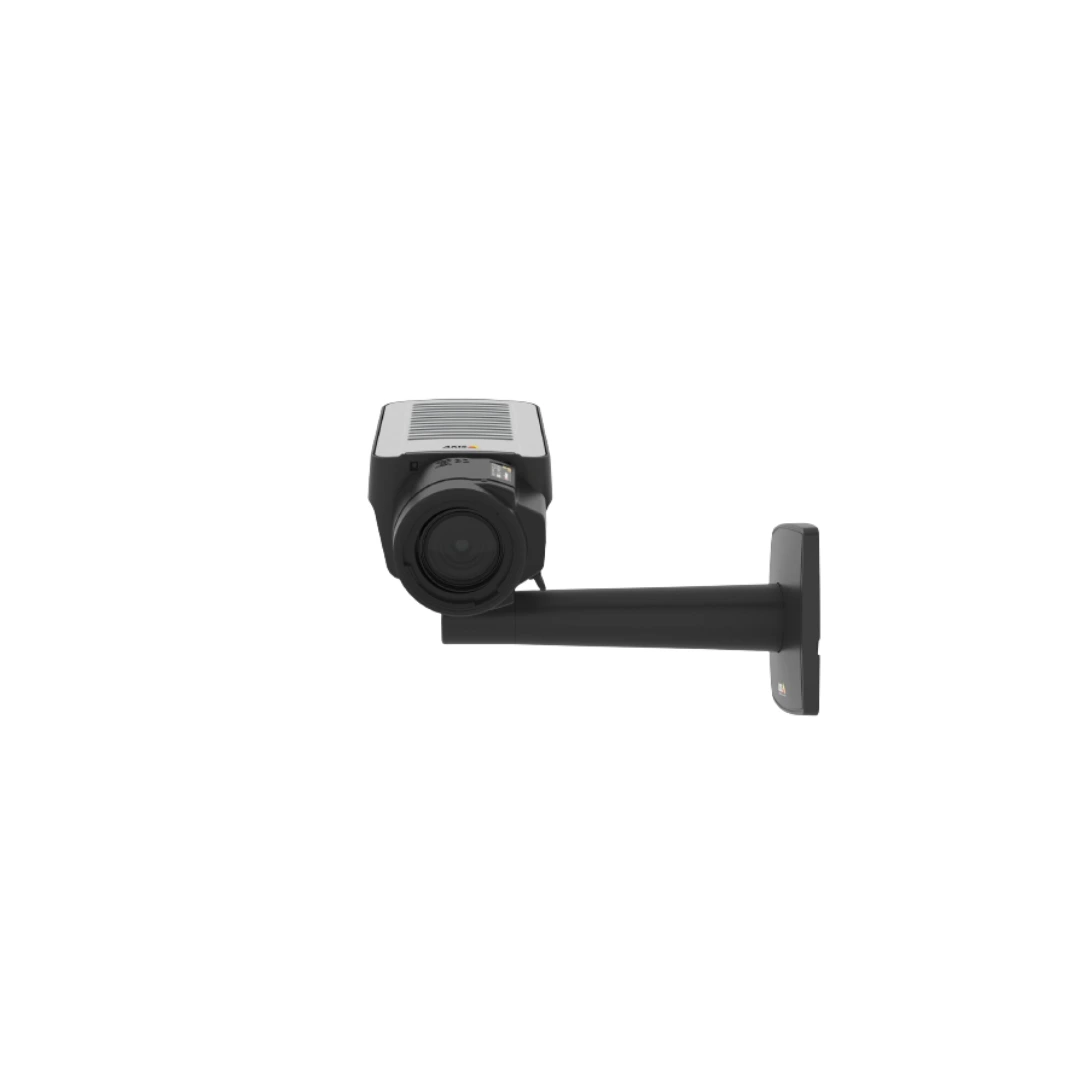

AXIS Q1647 BARE BONE

AXIS Q1647 Barebone in single pack. No lens. No power supply.

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1/2

Lightfinder Lightfinder

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.12 lux

Min illumination/ light sensitivity (B/W) 0.02 lux

Video

Property description Property value

Max video resolution 3072x1728

Max frames per second 50/60

Electronic image stabilization Yes

Lens

Property description Property value

Focal length 3.9 - 10 mm

Horizontal field of view 110-44 °

Vertical field of view 59-24 °

Lens mount CS

Replaceable lens Yes

Compression

Zipstream Yes

H.264 Baseline, High, Main

H.265 –

Motion JPEG Yes

Audio

Audio Support Yes

Network

PoE Class 3

Wireless –

Security

Signed firmware Yes

Secure boot –

General

Remote focus Yes

Remote zoom Yes

Built-in IR –

Local storage (memory card slot) Yes

Operating temperature -20 to 60 °C

Outdoor Ready –

Vandal rating –

IP rating –

Designed for repaint –

Sustainability PVC free

Power

Power (max) 11.2 W

Power (average) 6.4 W

DC input voltage 8-28 V
