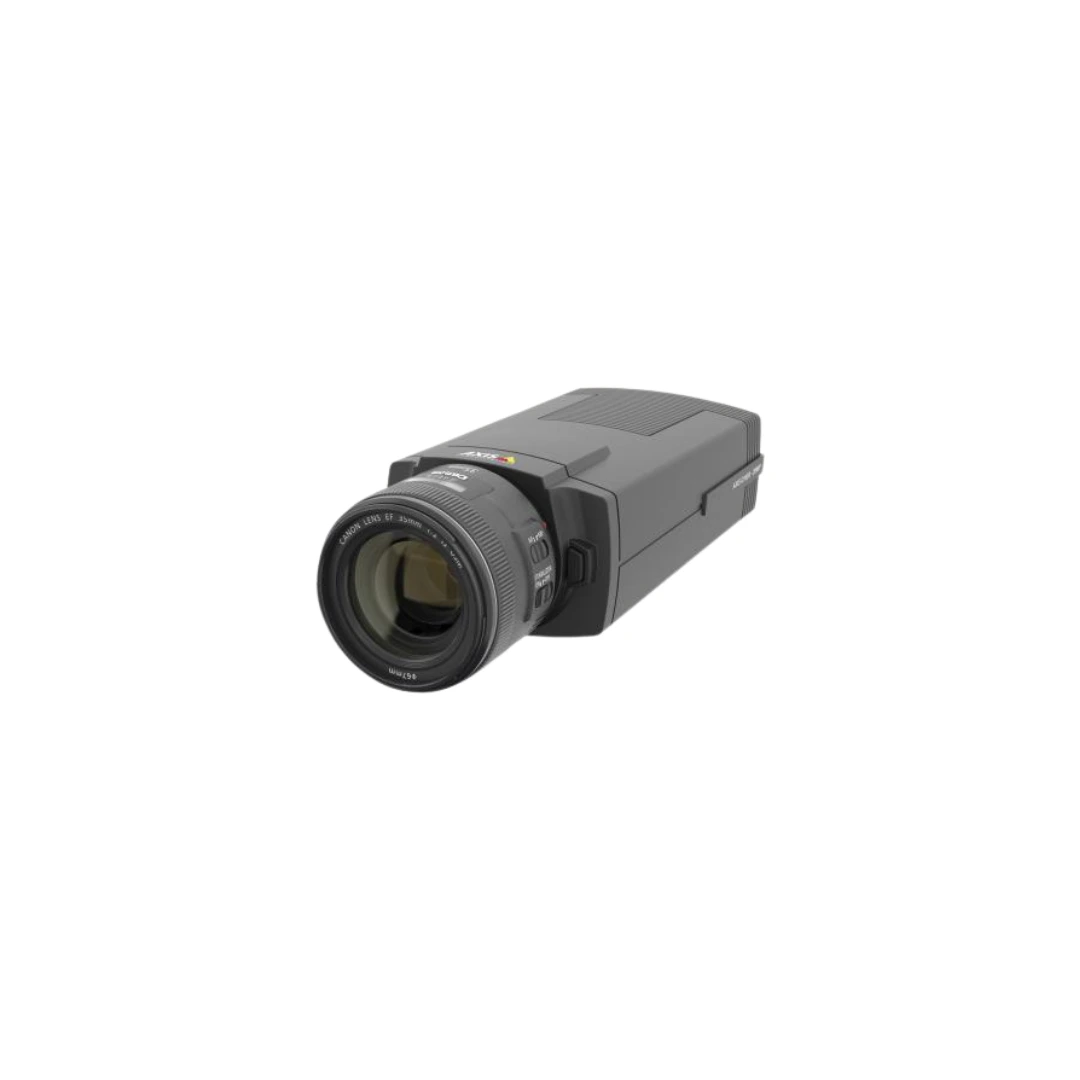

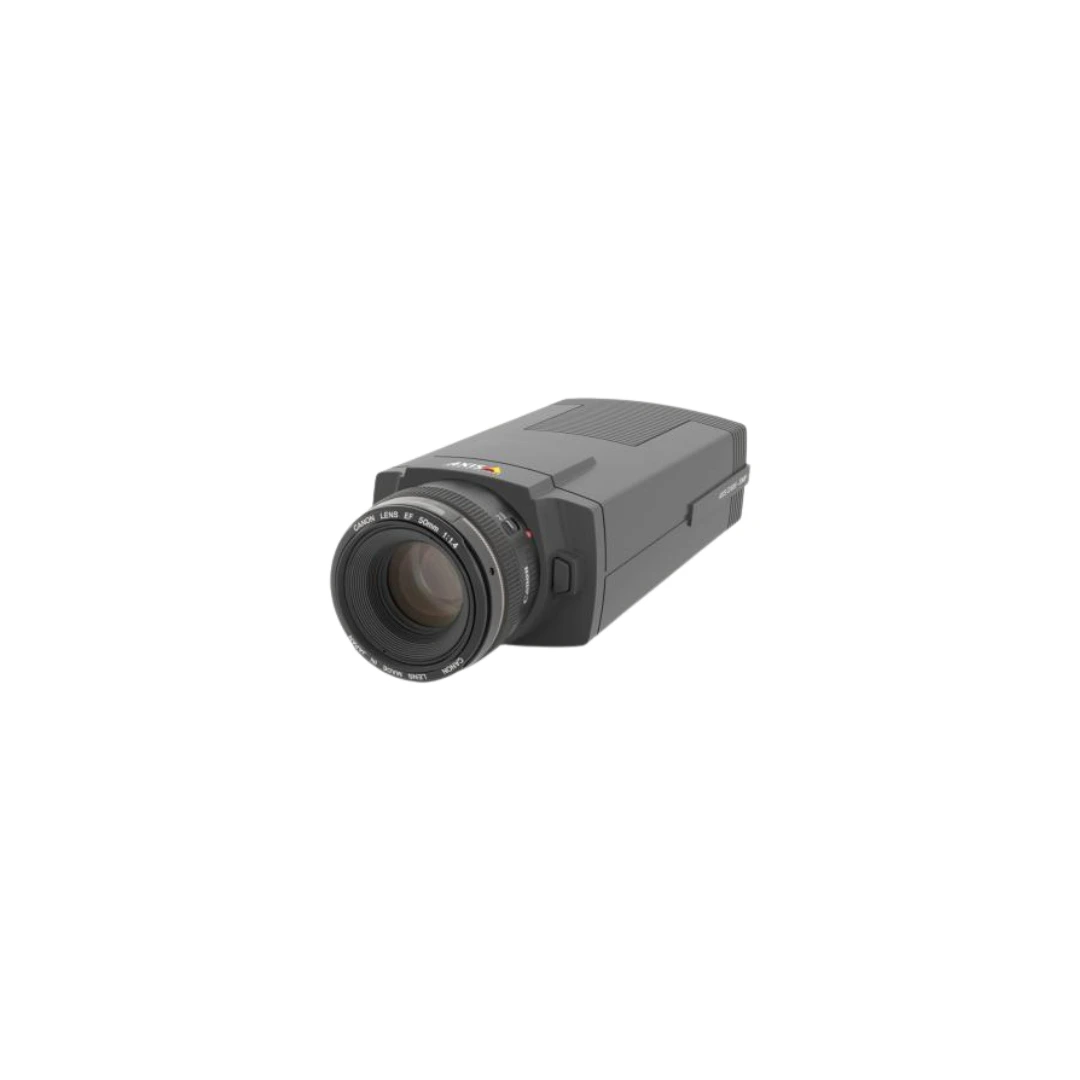

AXIS Q1659

Professional photography meets video surveillance

 AXIS Q1659 Network Camera offers ultra-high image resolution for surveillance in superb detail at 8 frames per second, achieving unprecedented levels of detail for observing open spaces and across long distances.

 It features digital single-lens reflex (DSLR) imaging technology and offers a choice of Canon EF/EF-S lenses, depending on individual user needs. Equipped with an EF lens mount, the camera enables easy lens changes.

 AXIS Q1659 is compatible with a broad number of video management systems, and it supports Zipstream that significantly reduces bandwidth and storage requirements.

 ?> 20 MP resolution

 > Canon EF mount and EF/EF-S lenses

 > Axis’ Zipstream technology

 > PoE and SFP slot for optional fiber connectivity

 > Optional accessory housing

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1

Lightfinder Lightfinder

Wide dynamic range Dynamic Contrast

Min illumination/ light sensitivity (Color) 0.04 lux

Min illumination/ light sensitivity (B/W) 0.004 lux

Video

Max video resolution 5472x3648

Max frames per second 25

Electronic image stabilization –

Lens

Focal length –

Horizontal field of view –

Vertical field of view –

Lens mount EF/EF-S

Replaceable lens Yes

Compression

Zipstream Yes

H.264 Baseline, High, Main

H.265 –

Motion JPEG Yes

Audio

Audio Support Yes

Network

PoE Class 4

Wireless –

Security

Signed firmware Yes

Secure boot –

General

Remote focus Yes

Remote zoom –

Built-in IR –

Local storage (memory card slot) Yes

Operating temperature 0 to 45 °C

Outdoor Ready –

Vandal rating –

IP rating –

Designed for repaint –

Sustainability –

Power

Power (max) 18.6 W

Power (average) 11.0 W

DC input voltage 20-28 V
