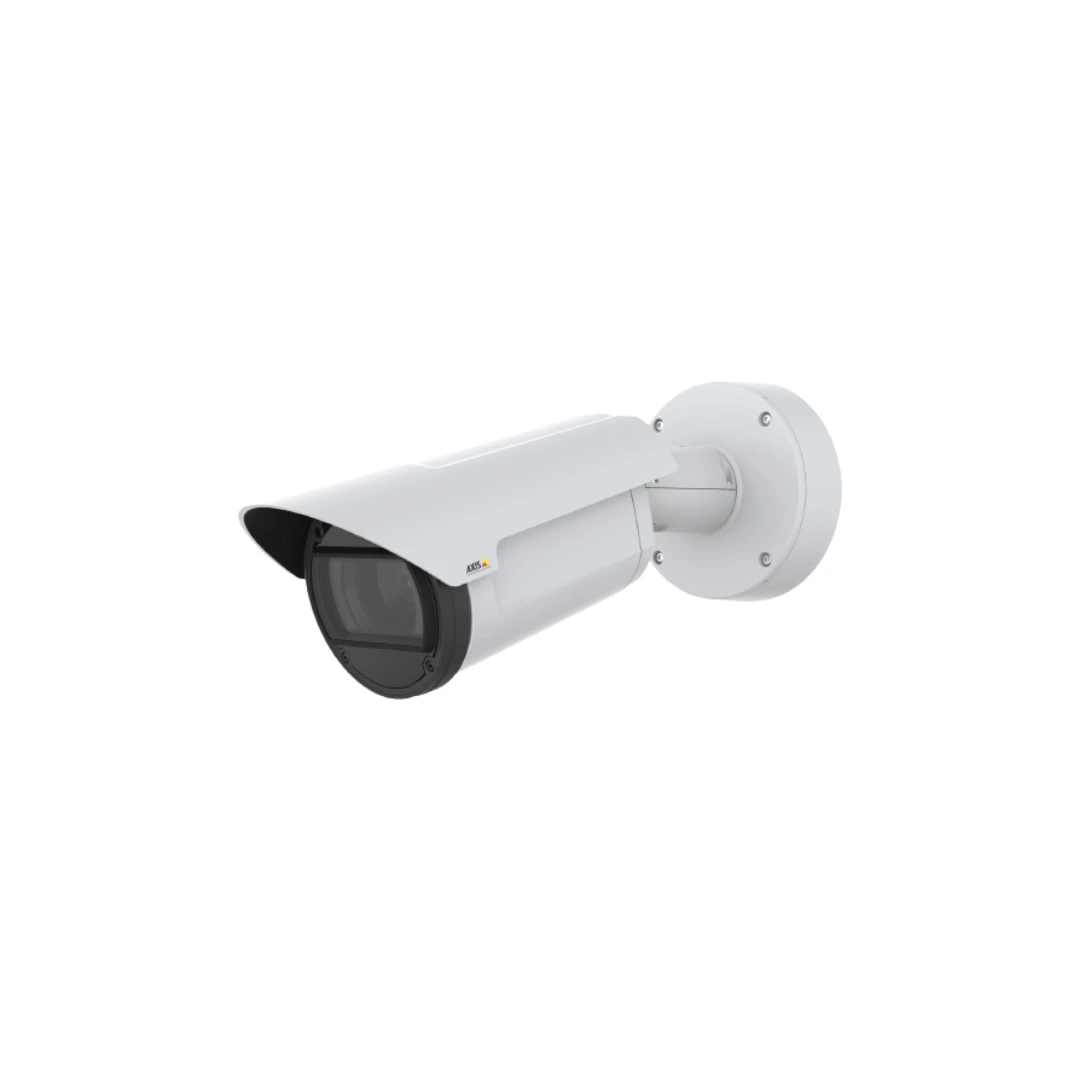

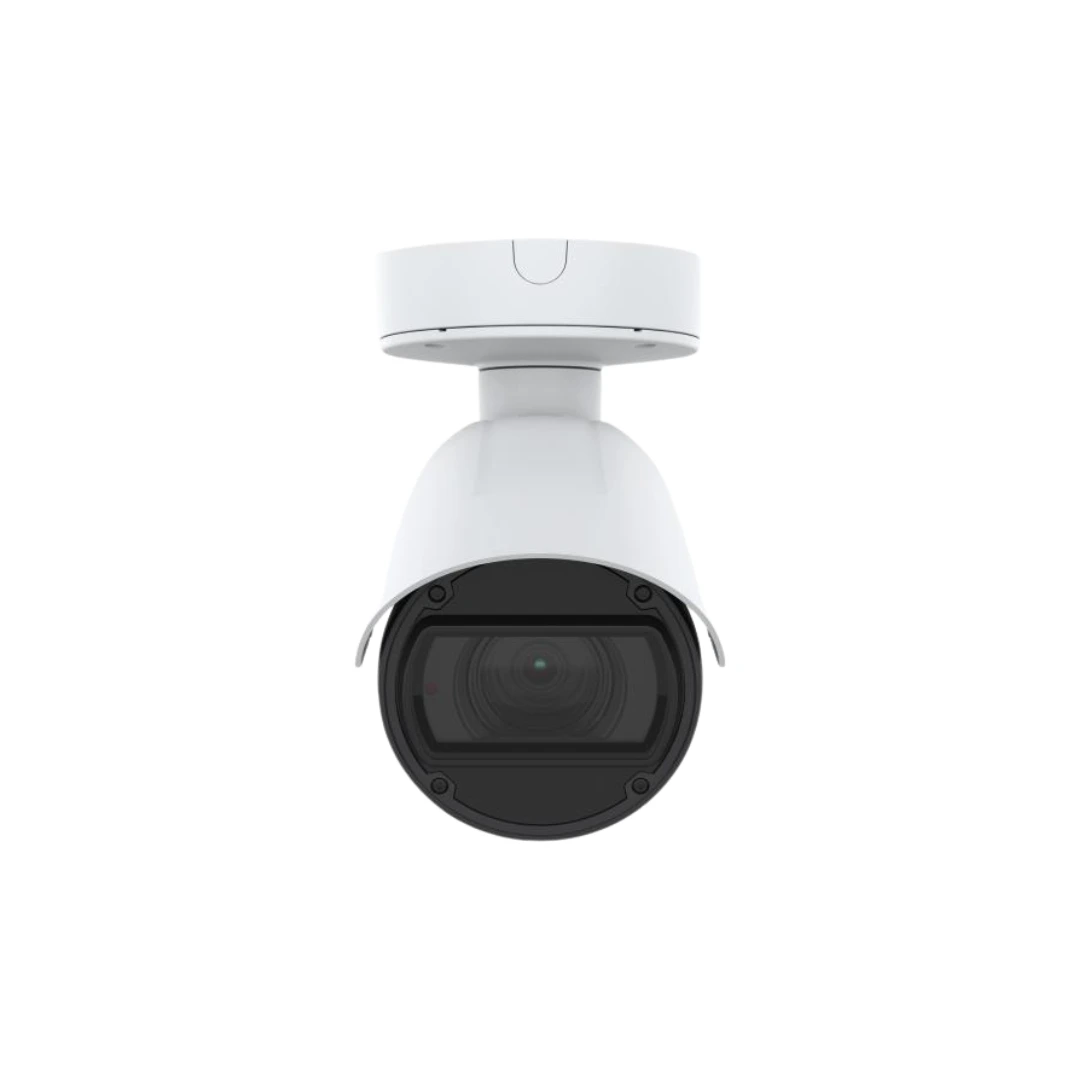

AXIS Q1786-LE

Robust outdoor, 4 MP/Quad HD1440p, day/night fixed bullet camera with 32x optical zoom. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1440p /4MP resolution at 50/60 fps. Forensic WDR and Lightfinder for demanding light conditions and Axis Zipstream technology for reduced bandwidth and storage needs.

 Varifocal 4.3–137 mm, F1.4 with remote zoom and autofocus.

 Includes analytics AXIS Guard Suite, shock detection and active tampering alarm. Corridor format, Barrel distortion correction, Defog, Electronic image stabilization and Scene profiles

 Audio mic/line in, I/O for alarm/event handling and memory card slot for optional local video storage.

 OptimizedIR, a power-efficient IR LED technology.

 Integrated bracket for easy mounting on wall and ceiling.

 NEMA 4X, IP66/67 and impact resistant in -40°C to +60°C(-40 °F to 140 °F). Powered by PoE (IEEE 802-3af), 20-28 V DC or 20-24 V AC. Includes a removable sunshield.

 Power supply or midspan not included.

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1/1.8

Lightfinder Lightfinder

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.18 lux

Min illumination/ light sensitivity (B/W) 0 lux

Video

Max video resolution 2560x1440

Max frames per second 50/60

Electronic image stabilization Yes

Lens

Focal length 4.3 - 137 mm

Optical zoom 32

Horizontal field of view 60 - 2.3 °

Vertical field of view 39-1.3 °

Compression

Zipstream Yes

H.264 Baseline, High, Main

H.265 –

Motion JPEG Yes

Audio

Audio Support Yes

Network

PoE Class 3

Security

Signed firmware Yes

Secure boot –

General

Remote focus –

Remote zoom Yes

Built-in IR Yes

Local storage (memory card slot) Yes

Operating temperature -40 to 60 °C

Outdoor Ready Yes

Vandal rating IK10

IP rating IP66, IP67

Designed for repaint Yes

Sustainability PVC free

Power

Power (max) 13.8 W

Power (average) 8.6 W
