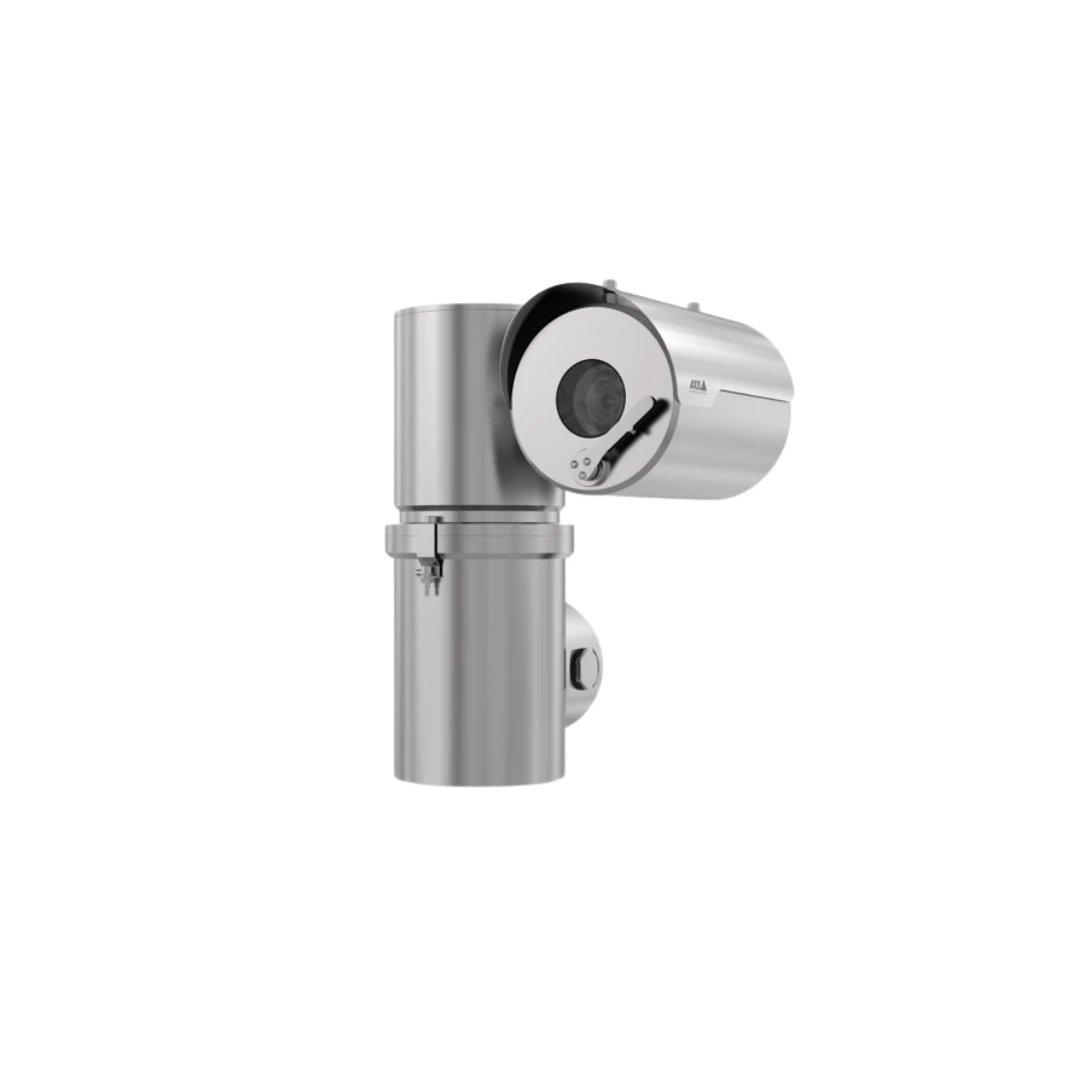

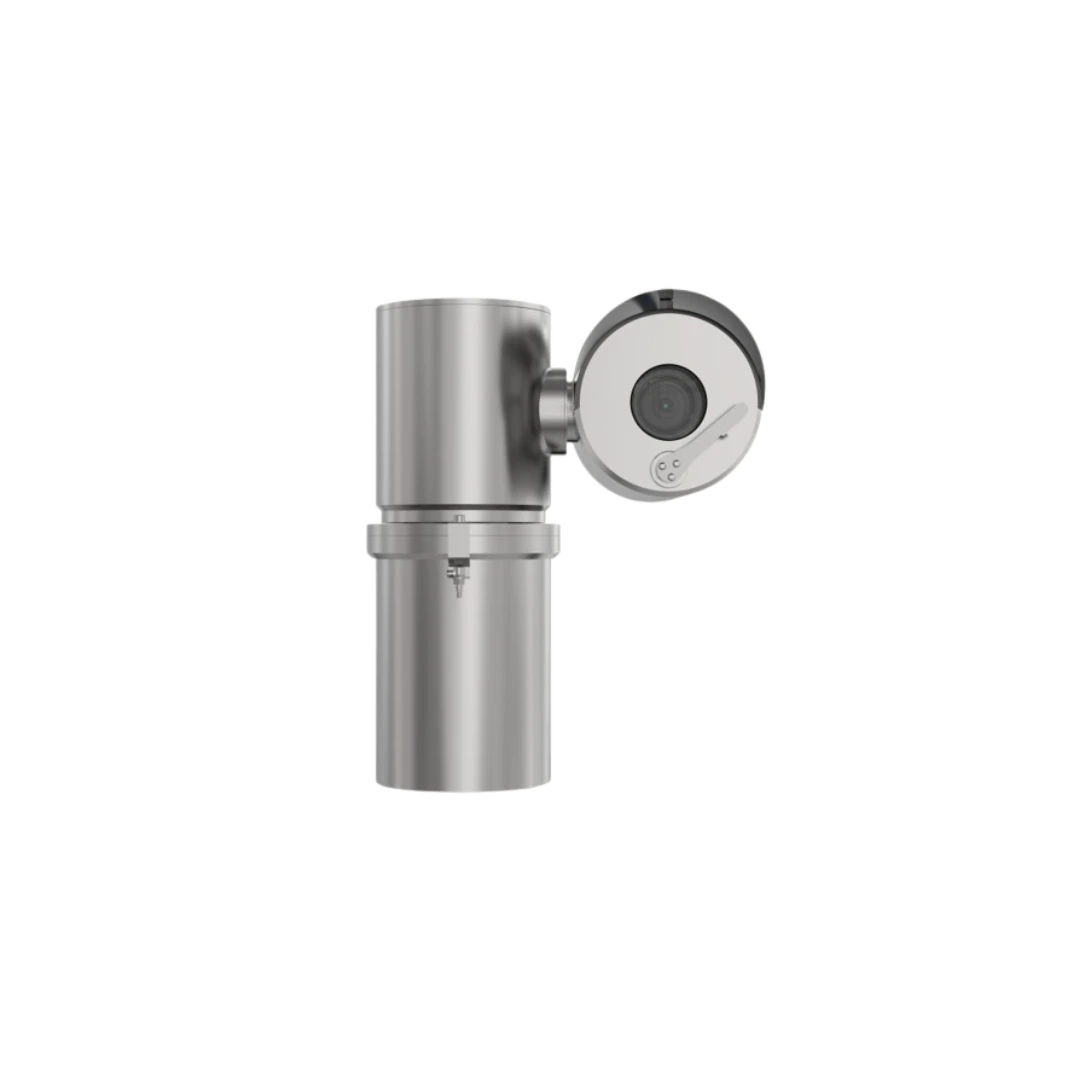

AXIS XPQ1785

Explosion-protected stainless steel (316L) PTZ network camera certified for use in hazardous areas according to ATEX, IECEx, cMETus. Ex db IIC T5 Gb, Ex tb IIIC T100°C Db, Class I/II/III Div 1 Groups B, C, D, E, F, G, Class I Zone 1 AEx db IIC T5 Gb, Zone 21 AEx tb IIIC T100°C Db. IP 66/67/68, Type 4X. Certificate: 20ATEX0651X (ATEX), EXV 20.0017X (IECEx), E115198 (cMETus), part code: P21. AXIS Q1785 1080p HDTV camera inside with 32x optical zoom, auto focus and day/night mode. Continuous 360° pan and tilt and 256 preset positions. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1080p resolution at 25/30 fps. It supports Onvif, WDR, EIS and built-in smoke and fire detection. Operating temp -60°C to +60°C. 110-230VAC, RJ45 and SFP for fiber or coax connection. Integrated wiper, sunshield and AXIS Surveillance microSDXC card 128Gb included.

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1/2.8

Lightfinder Lightfinder

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (Color) 0.16 lux

Min illumination/ light sensitivity (B/W) 0.03 lux

Video

Max video resolution 1920x1080

Max frames per second 50/60

Electronic image stabilization Yes

Lens

Focal length 4.3 - 137 mm

Optical zoom 32

Horizontal field of view 60-2.3 °

Vertical field of view 39-1.3 °

Compression

Zipstream Yes

H.264 Baseline, Main

H.265 –

Motion JPEG Yes

Network

PoE Class –

Security

Signed firmware Yes

Secure boot –

TPM –

General

Remote focus –

Remote zoom –

Local storage (memory card slot) Yes

Outdoor Ready Yes

IP rating IP66, IP67, IP68

Power

Power (max) –

Power (average) –

DC input voltage –

AC input voltage 100-240 V
