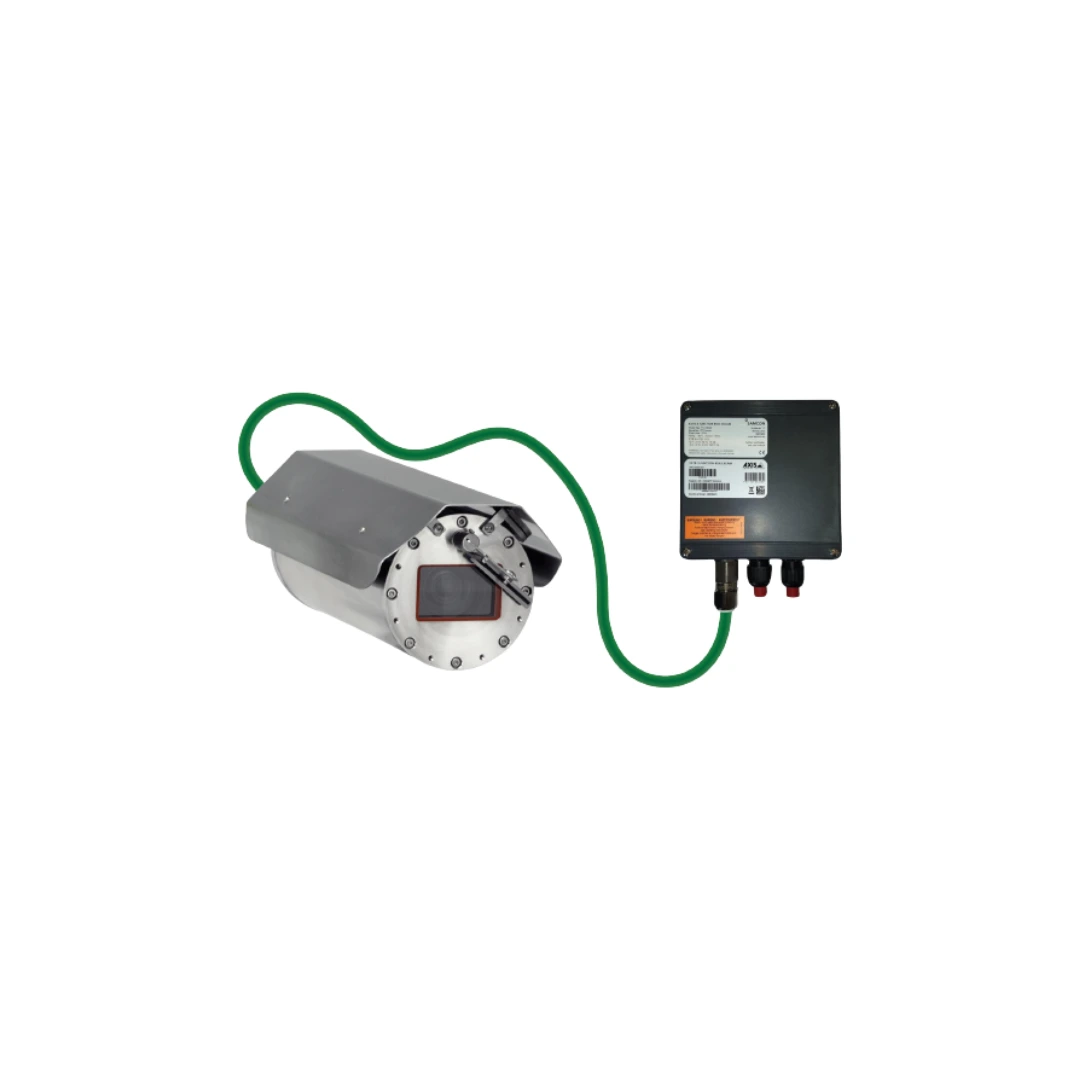

EXCAM XF Q1785
Explosion-protected, PoE powered, HDTV 1080p 32x optical zoom, ATEX/IECEx/EAC certified for hazardous locations. Ex II 2 G Ex d IIC T5 Gb, Ex II 2 D Ex t IIIC T95°C Db IP68, -60ºC <= Ta <= +60ºC. Model key:T08-VA2.3.K3.BOR5-C-005-K-LL. Stainless Steel 316L housing with wiper and sunshield. Lightfinder, Zipstream, forensic WDR, electronic image stabilization. AXIS Surveillance SD Card 64GB, 5m network and power cable preinstalled, Ex e connection box. Built to order, 6 weeks lead time.
Technical specifications
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 1920x1080
Max frames per second 50/60
Electronic image stabilization Yes
Lens
Focal length 4.3 - 137 mm
Optical zoom 32
Horizontal field of view 60-2.3 °
Vertical field of view 39-1.3 °
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Network
PoE Class 3
Security
Signed firmware Yes
Secure boot –
TPM –
General
Remote focus –
Remote zoom Yes
Local storage (memory card slot) Yes
Outdoor Ready Yes
IP rating IP68
Power
Power (max) 40.0 W
Power (average) –
DC input voltage 22-26 V
AC input voltage –
