EXCAM XPT Q6075

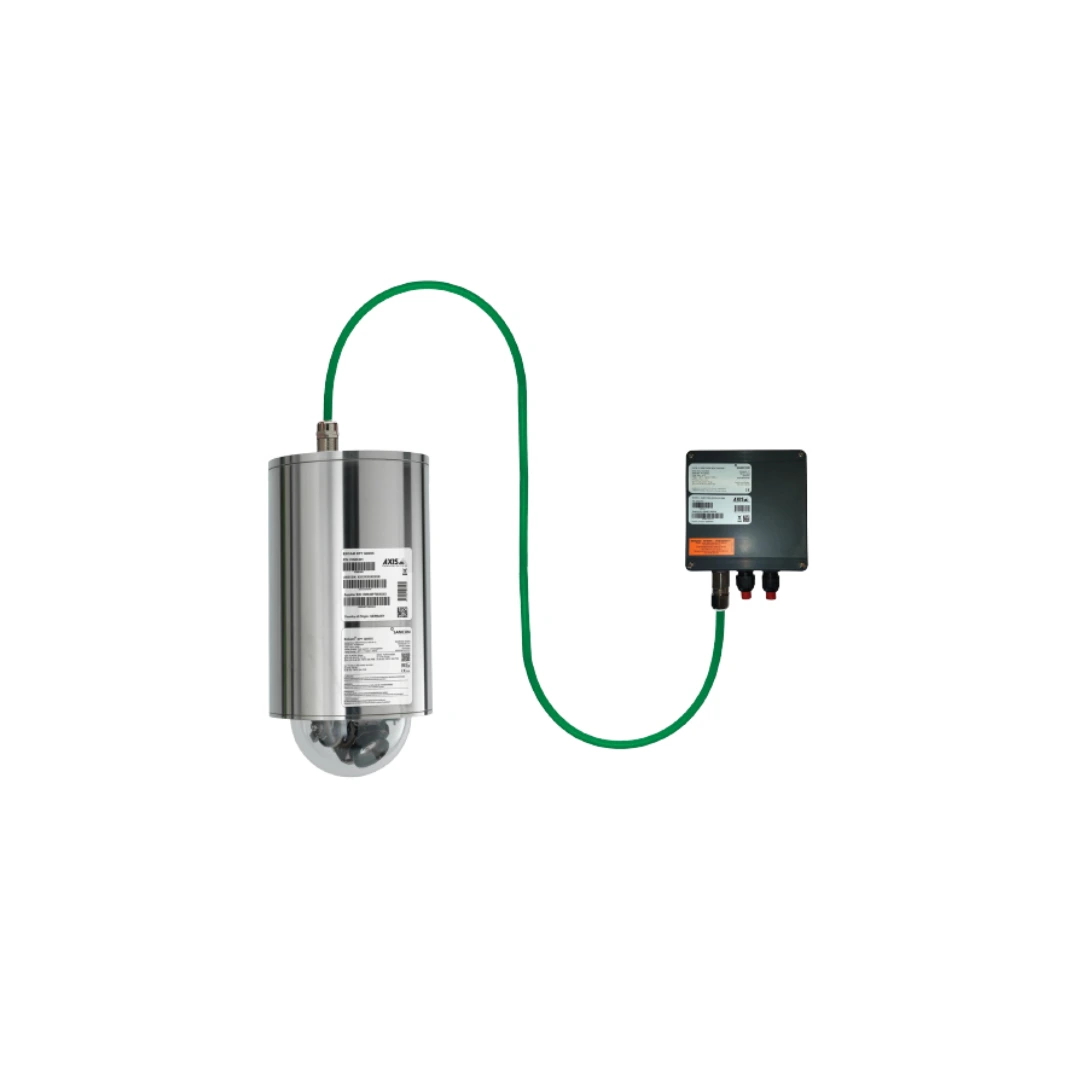

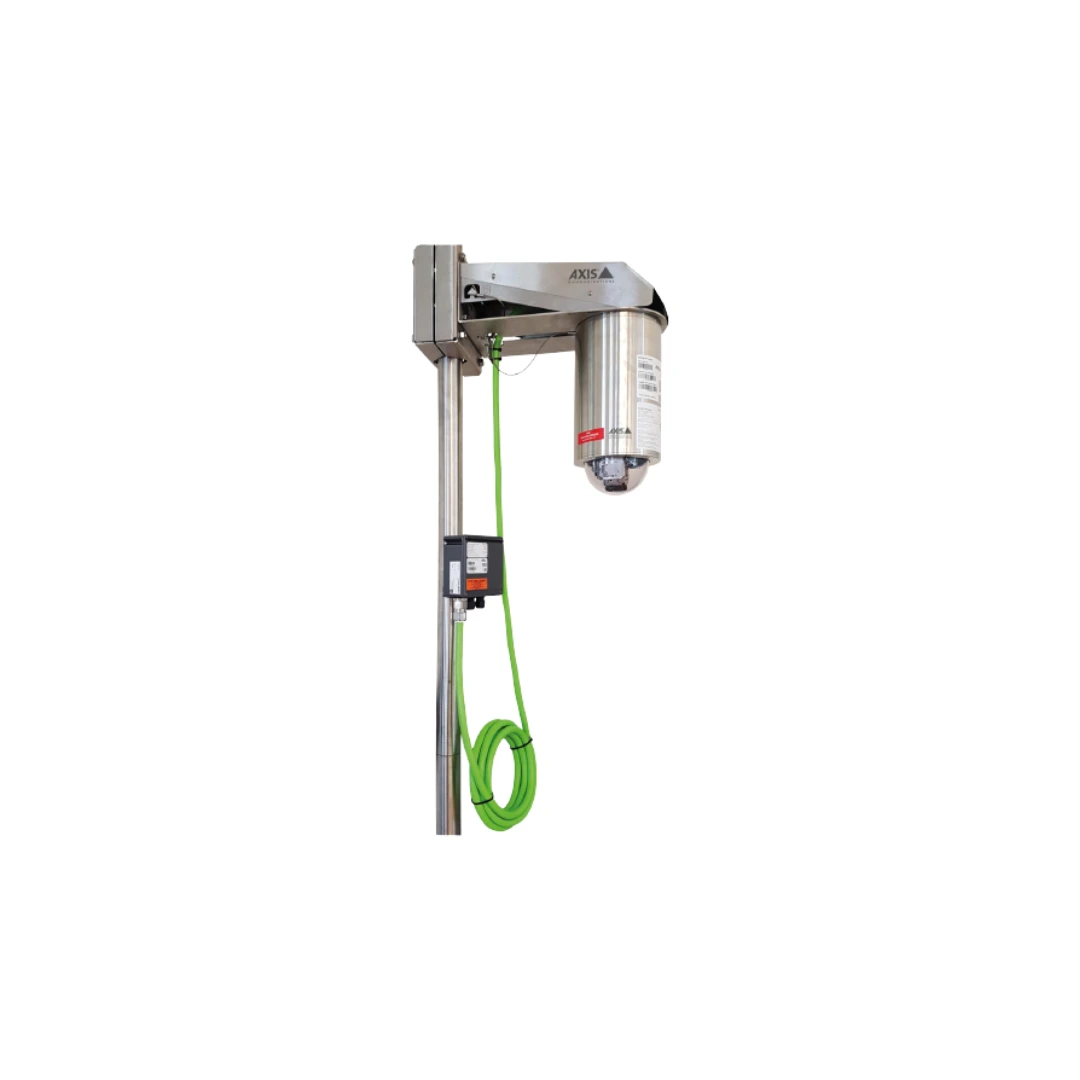

Explosion-protected, top performance, PoE powered HDTV 1080p PTZ dome network camera with 40x zoom, ATEX/IECEx/EAC certified for hazardous locations. Ex II 2 G Ex d IIC T6 Gb, Ex II 2 D Ex t IIIC T80°C Db IP68, -50ºC <= Ta <= +60ºC. Model key:T08-TNXCD-C-005-K-LL. Stainless Steel 316L housing. Auto day/night functionality, Zipstream, wide dynamic range, electronic image stabilization, highlight compensation. Continuous 360º rotation and 220º tilt with E-flip. HDTV 1080p@60 fps, Lightfinder 2.0. AXIS T8154 PoE midspan with fiber slot is included (for installation in safe area or Ex d enclosure), AXIS Surveillance SD Card 128GB, EXTB-3 connection box, 5m armored network and power cable preinstalled. Built to order, 6 weeks lead time.

Technical specifications

Camera

Image sensor CMOS

Image sensor size 1/2.8

Lightfinder Lightfinder 2.0

Wide dynamic range WDR

Min illumination/ light sensitivity (Color) 0.1 lux

Min illumination/ light sensitivity (B/W) 0.002 lux

Video

Max video resolution 1920x1080

Max frames per second 50/60

Electronic image stabilization –

Lens

Focal length 4.25 - 170 mm

Optical zoom 40

Horizontal field of view 65.1 - 2.00 °

Vertical field of view 39.1-1.18 °

Compression

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Network

PoE Class 4

Security

Signed firmware Yes

Secure boot Yes

TPM Yes

General

Remote focus –

Remote zoom –

Local storage (memory card slot) Yes

Outdoor Ready –

IP rating IP66, IP68

Power

Power (max) 60.0 W

Power (average) –

DC input voltage 22-26 V

AC input voltage –
