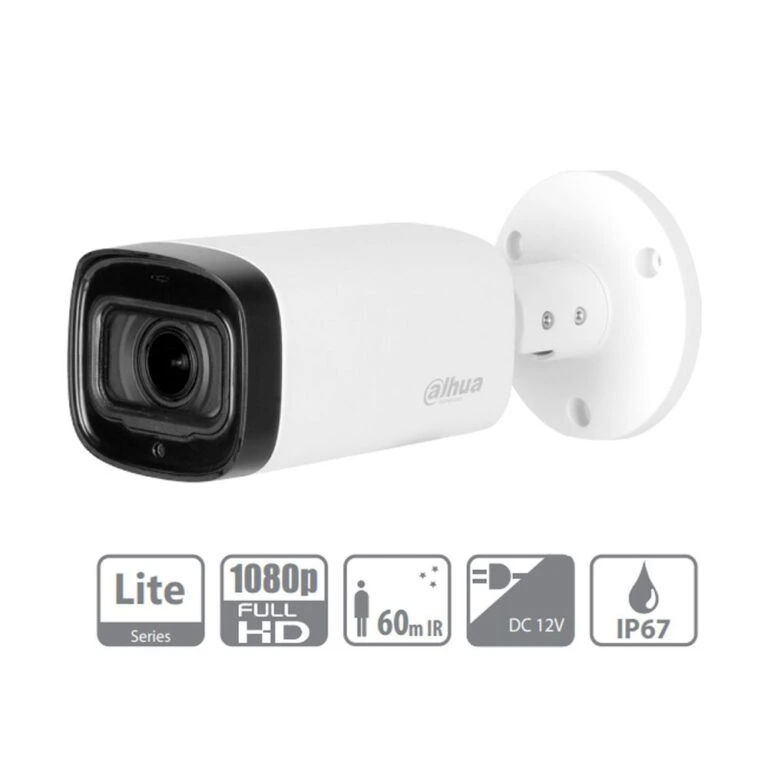

DAHUA DH-HAC-HFW1200RP-Z-IRE6

“1/2.7?””” 2Megapixel CMOS

25/30fps@1080P, 25/30/50/60fps@720P

ICR, OSD, 2.7-12mm motorized vari-focal lens

Max. IR distance: 60m(197ft), Smart IR

CVI/TVI/AHD/CVBS output switchable

DC12V, IP67?

System Overview

Experience 1080P full HD video and the simplicity of using existing cabling

infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a

compact design and offers a high quality image at a friendly price. It offers

motorized lens models with a multi-language OSD and HD/SD switchable

output. Its structural flexibility and high cost-performance makes the

camera an ideal choice for SMB solutions.

Functions

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial

cable simultaneously, i.e. video, audio*, data and power. Dual-way data

transmission allows the HDCVI camera to interact with the XVR, such as

sending control signal or triggering alarm. Moreover, HDCVI technology

supports PoC for construction flexibility.

* Audio input is available for some models of HDCVI cameras.

Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance

without any loss. It supports up to 800m(1080P)/1200m(720P)

transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via

UTP cable.*

*Actual results verified by real-scene testing in Dahua’s test laboratory.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional

analog surveillance system, making itself a best choice for investment

protection. HDCVI system can seamlessly upgrade the traditional

analog system without replacing existing coaxial cabling. The plug and

play approach enables full HD video surveillance without the hassle of

configuring a network.

Smart IR

The camera is designed with array LED IR illumination for best lowlight

performance. Smart IR is a technology to ensure brightness uniformity

in B/W image under low illumination. Dahua’s unique Smart IR adjusts to

the intensity of camera’s infrared LEDs to compensate for the distance of

an object, and prevents IR LEDs from overexposing images as the object

come closer to the camera.

Multi-formats

The camera supports multiple video formats including HDCVI, CVBS and

other two common HD analog formats in the market. The four formats can

be switched over through OSD menu or by PFM820(UTC controller). This

feature makes the camera to be compatible with most end users’ existing

HD/SD DVRs.

Multi-language OSD

OSD menu provides multiple image adjustments and function settings

to meet the requirements of different monitoring scenes. The OSD menu

includes configurations such as backlight mode, day/night, white balance,

privacy mask and motion detect. The camera supports 11 languages for

OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,

Italian, Japanese, Korean, Russian and Polish.

Protection

The camera’s outstanding reliability is unsurpassed due to its rugged design.

The camera is protected against water and dust with IP67 ranking, making it

suitable for indoor or outdoor environments.

With working temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the

camera is designed for extreme temperature environments.

Supporting ±30% input voltage tolerance, this camera suits even the

most unstable power supply conditions. Its 4KV lightning rating provides

protection against the camera and its structure from the effects of lightning.
