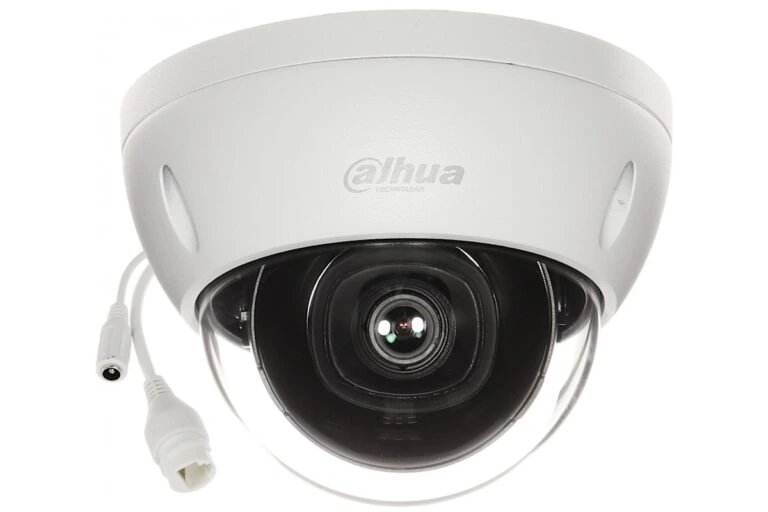

DAHUA DH-IPC-HDBW2230EP-S-S2

2 MP Fixed Lens Dome Camera without WDR

System Overview

With updraded H.265 encoding technology, Dahua Lite series camera

has efficient video encoding capacity, which saves bandwidth and

storage space. This camera adopts the latest starlight technology and

displays better colorful image in the environment of low illumination. It

supports SD card storage, waterproof function, dust-proof function and

tamper-proof function, complying to the standards of IP67 and IK10.

Functions

Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the

environment, Dahua smart encoding technology realizes the higher

efficiency than (H.265 & H.264 ), providing high-quality video, and

reducing the cost of storage and transmission.

Starlight

Dahua Starlight technology mainly applies to the environment of

low illumination, and it can provide clear colorful video. Even in the

environment of min. illumination, the technology can guarantee the

good image effect.

2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

· Outputs 2MP (1920 × 1080)@25/30 fps

· H.265 codec, high compression rate, ultra-low bit rate

· Built-in IR LED, max IR distance: 30 m

· ROI, SMART H.264/H.265, flexible coding, applicable to various

bandwidth and storage environments

· Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking,

applicable to various monitoring scenes

· Intelligent detection: Intrusion, tripwire

· Abnormality detection: Motion detection, video tampering, no SD card,

SD card full, SD card error, network disconnected, IP conflict, illegal ac-

cess, voltage detection

· Supports max. 256 GB Micro SD card

· 12V DC/PoE power support

· IP67, IK10 protection grade

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent

detection, such as tripwire and intrusion and so on.

Protection (IP67, IK10, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has

dust-proof function, and the enclosure can works normal after soaking

in 1 m deep water for 30 minutes.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg

hammer falling from a height of 40 m (Impact energy is 20J).

Wide voltage: The camera allows ±30% input voltage tolerance (wide

voltage range), and it is widely applied to outdoor environment with

instable voltage.
