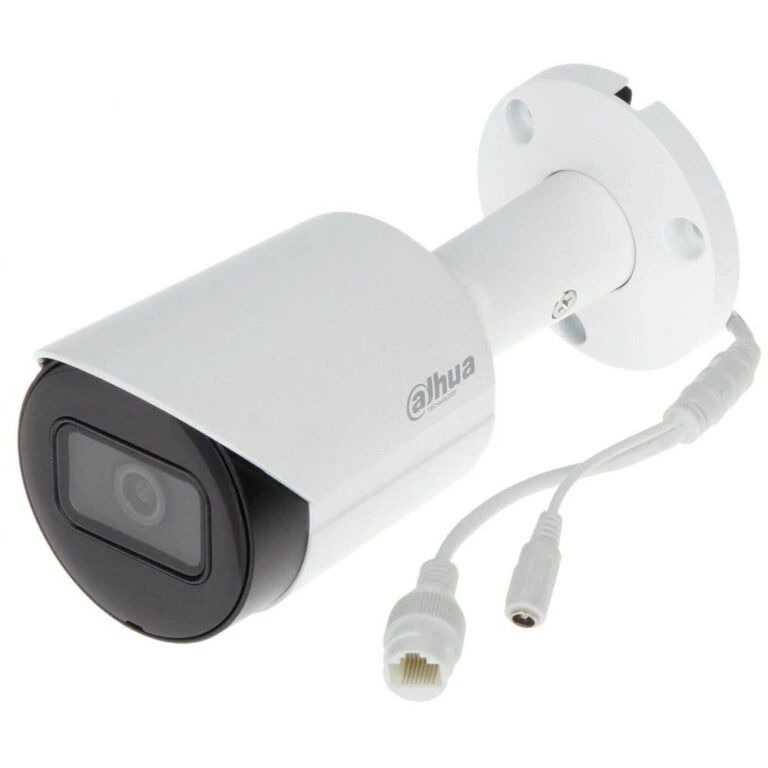

DAHUA DH-IPC-HFW2230SP-S-S2

2 MP Bullet Camera, 30 m IR, Metal Casing

System Overview

With upgraded H.265 encoding technology, Dahua Lite series camera has

efficient video encoding capacity, which saves bandwidth and storage

space. This camera adopts the latest starlight technology and displays

better colorful image in the environment of low illumination. It supports

SD card storage, waterproof function, dust-proof function, complying to

the standards of IP67.

Functions

Smart ( H.265+ & H.264+ )

Adopting advanced algorithm of auto stream control according to the

environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing

the cost of storage and transmission.

Starlight

Dahua Starlight technology mainly applies to the environment of low

illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good

image effect.

2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

· Outputs 2MP (1920 × 1080)@25/30 fps

· H.265 codec, high compression rate, ultra-low bit rate

· Built-in IR LED, max IR distance: 30 m

· ROI, SMART H.264/H.265, flexible coding, applicable to various

bandwidth and storage environments

· Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking,

applicable to various monitoring scenes

· Intelligent detection: Intrusion, tripwire

· Abnormality detection: Motion detection, video tampering, no SD card,

SD card full, SD card error, network disconnected, IP conflict, illegal

access, voltage detection

· Supports max. 256 GB Micro SD card

· 12V DC/POE power support

· IP67 protection.

Intelligent Video Analysis (IVS)

With advanced video algorithm, Dahua camera supports intelligent

detection, such as tripwire and intrusion and so on.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It

has dust-proof function, and the enclosure can works normal after

soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% input voltage tolerance (wide

voltage range), and it is widely applied to outdoor environment with

instable voltage.
