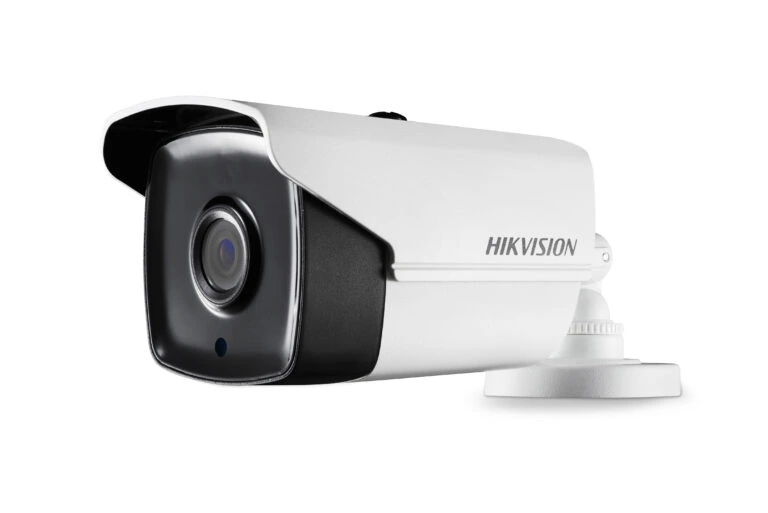

HIKVISION DS-2CE17D0T-IT1F(6mm)(C)

2MP CMOS Sensor,EXIR 30m IR, Outdoor EXIR Bullet, ICR, 0.01 Lux/F1.2, 12 VDC, Smart IR, DNR, IP66, 2.8/3.6/6mm Lens, Support TVI/AHD/CVI/CVBS video signal output

Specification

• Camera
• Image Sensor 2 MP CMOS
• Signal System PAL/NTSC
• Frame Rate
• TVI: 1080P@30fps, 1080P@25fps
• CVI: 1080P@30fps, 1080P@25fps
• AHD: 1080P@30fps, 1080P@25fps
• CVBS: PAL/NTSC
• Resolution 1920 (H) × 1080 (V)
• Min. illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50,000 s
• NTSC: 1/30 s to 1/50,000 s
• Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field of View
• 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
• 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
• 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
• Lens Mount M12
• Day & Night ICR
• WDR (Wide Dynamic Range) Digital WDR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Menu
• Image Mode STD/HIGH-SAT
• AGC Yes
• Day/Night Mode Auto/Color/BW (Black and White)
• White Balance Auto/Manual
• AE (Auto Exposure) Mode DWDR/BLC/HLC/Global
• Language English
• Functions Brightness, Sharpness, Smart IR
• 2D DNR Yes
• Interface
• Video Output Switchable TVI/AHD/CVI/CVBS
• General
• Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply 12 VDC ± 25%
• Power Consumption Max. 2.2 W
• Protection Level IP67
• Material Front Cover: Metal
• Main Body: Plastic
• IR Range Up to 30 m
• Communication HIKVISION-C
• Dimensions 78.9 mm × 75.4 mm × 216.6 mm (3.10? × 2.97? × 8.53?)
• Weight Approx. 320 g (0.71 lb.)
