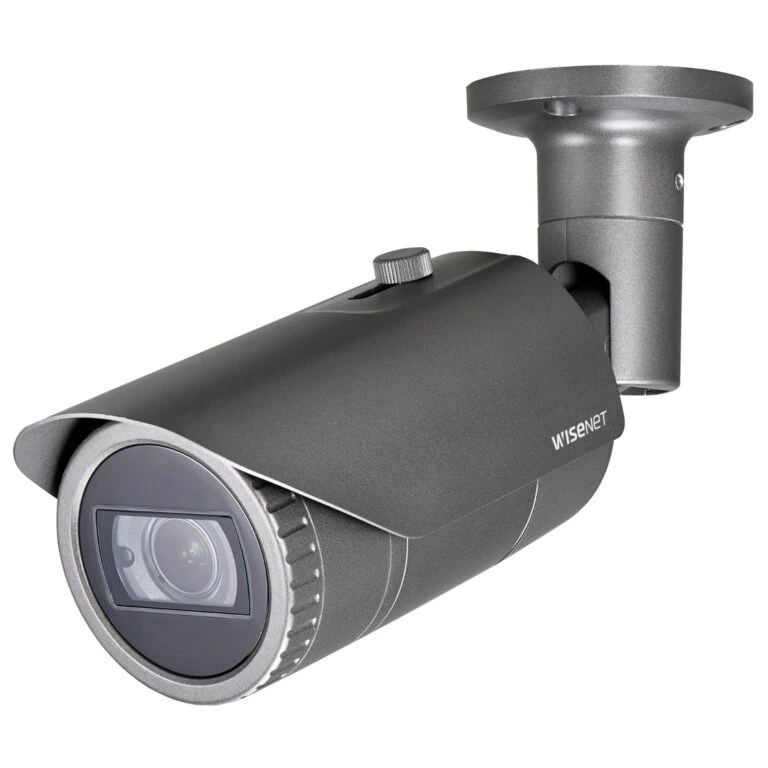

WISENET CCTV QNO-6082R

2M H.265 NW IR Bullet Camera

• Max. 2megapixel (1920 x 1080) resolution

• 0.03lux (Color), 0Lux (B/W, IR LED on)

• 3.2 ~ 10mm (3.1x) motorized varifocal lens

• Max. 30fps@2M all resolutions (H.265/H.264)

• H.265, H.264, MJPEG codec supported, Multiple streaming

• Motion detection, Tampering, Defocus detection

• Hallway view (90°/270°), LDC support

• Micro SD/SDHC/SDXC memory slot (Max. 128GB)

• IR viewable length 30m

• IP66, IK10, PoE/12VDC

Product Spec

• Video
• Imaging Device 1/2.8? 2MP CMOS
• Resolution 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
• Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
• MJPEG: Max. 15fps/12fps(60Hz/50Hz)
• Min. Illumination Color: 0.03Lux(F1.6, 1/30sec)
• BW: 0Lux(IR LED on)
• Video Out CVBS: 1.0 Vp-p / 75O composite, 720×480(N), 720×576(P) for installation
• Lens
• Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
• Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
• Angular Field of View H: 109.0°(Wide)~33.2°(Tele) / V: 57.4°(Wide)~18.7°(Tele) / D: 132.0°(Wide)~38.0°(Tele)
• Focus Control Simple focus
• Lens Type DC auto iris
• Operational
• Camera Title Displayed up to 85 characters
• Day & Night Auto(ICR)
• Backlight Compensation BLC, WDR, SSDR
• Wide Dynamic Range 120dB
• Digital Noise Reduction SSNR
• Motion Detection 4ea, polygonal zones
• Privacy Masking 6ea, rectangular zones
• Gain Control Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• LDC Support
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Video Rotation Flip, Mirror, Hallway view(90°/270°)
• Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Analytics, Network disconnect, Alarm input
• Alarm Events File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• Audio In Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• IR Viewable Length 30m(98.42ft)
• Network
• Ethernet RJ-45(10/100BASE-T)
• Video Compression H.265/H.264: Main/High, MJPEG
• Audio Compression G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Smart Codec WiseStream?
• Bitrate Control H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming Unicast(6 users) / Multicast
• Multiple streaming(Up to 3 profiles)
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
• Security HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• General
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14
• Recommended Browser: Google Chrome
• Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly)
• Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
• Memory 512MB RAM, 256MB Flash
• Environmental & Electrical
• Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
• * Start up should be done at above -20°C
• Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
• Certification IP66, IK10
• Input Voltage PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption PoE: Max 7.40W, typical 5.40W
• 12VDC: Max 6.50W, typical 4.80W
• Mechanical
• Color / Material Dark grey / Aluminum
• Product Dimensions / Weight Ø78.0×259.8mm(Ø3.07×10.23?), 900g(1.98 lb)
• DORI (EN62676-4 standard)
• Detect (25PPM/ 8PPF) Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft)
• Observe (63PPM/ 19PPF) Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft)
• Recognize (125PPM/ 38PPF) Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft)
• Identify (250PPM/ 76PPF) Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft)
• • Design and specifications are subject to change without notice.
• • Wisenet is the proprietary brand of Hanwha Techwin
