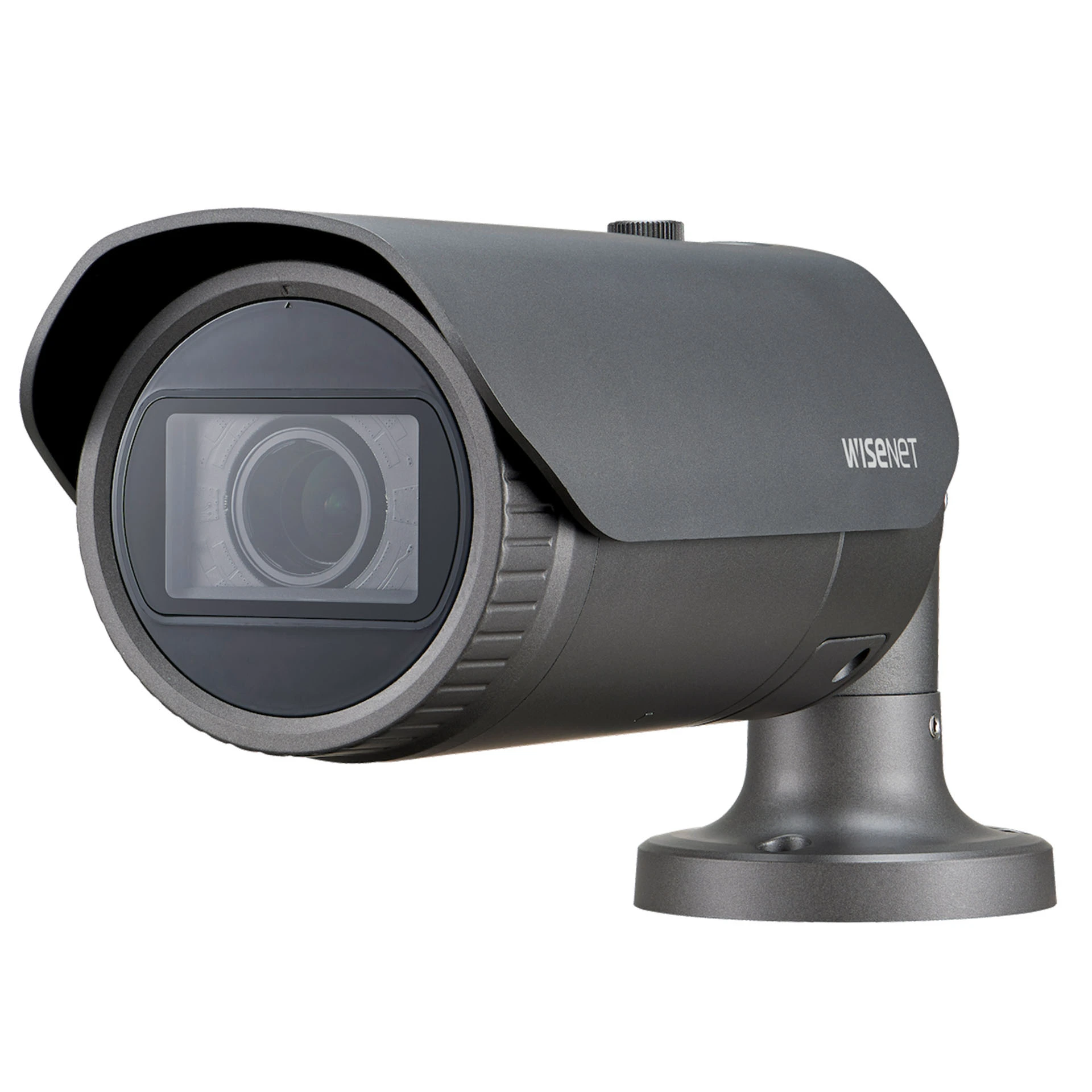

WISENET CCTV QNO-8080R

5M H.265 NW IR Bullet Camera

• Max. 5Megapixel (2592 x 1944) resolution

• 3.2~10mm(3.1x) motorized varifocal lens

• 0.15Lux (Color), 0Lux (B/W, IR LED on)

• Max. 30fps@5MP (H.265 / H.264)

• H.265, H.264, MJPEG codec support, Multiple streaming

• Day & Night, WDR (120dB)

• Tampering, Motion detection, Defocus detection

• Micro SD / SDHC / SDXC memory slot (Max. 128GB)

• Hallway view, WiseStream II support

• IR Viewable length 30m

• IP66, IK10, PoE

Product Spec

• Video
• Imaging Device 1/3? 4MP CMOS
• Resolution 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
• Max. Framerate H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution,
• MJPEG: Max 15fps/12fps(60Hz/50Hz)
• Min. Illumination Color: 0.15Lux(F1.4, 1/30sec)
• BW: 0Lux(IR LED on)
• Lens
• Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
• Max. Aperture Ratio F1.4(Wide)~F3.6(Tele)
• Angular Field of View H: 109.7°(Wide)~26°(Tele) / V: 60.8°(Wide)~15.2°(Tele) / H: 131.3°(Wide)~30.1°(Tele)
• Focus Control Simple focus
• Lens Type DC auto iris
• Operational
• Camera Title Displayed up to 20 characters per line(Max.5 lines)
• Day & Night Auto(ICR)
• Backlight Compensation BLC, WDR, SSDR
• Wide Dynamic Range 120dB
• Digital Noise Reduction SSNR
• Motion Detection 4ea, polygonal zones
• Privacy Masking 6ea, rectangular zones
• Gain Control Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• LDC Support
• Electronic Shutter Speed Minimum / Maximum / Anti flicker
• Video Rotation Flip, Mirror, Hallway view(90°/270°)
• Analytics Defocus detection, Motion detection, Tampering
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Analytics, Network disconnect, Alarm input
• Alarm Events File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• Audio In Line in
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• IR Viewable Length 30m(98.42ft)
• Network
• Ethernet RJ-45(10/100BASE-T)
• Video Compression H.265/H.264, MJPEG
• Audio Compression G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Smart Codec WiseStream?
• Bitrate Control H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming Unicast(6 users) / Multicast
• Multiple streaming(Up to 3 profiles)
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface ONVIF Profile S/G
• SUNAPI(HTTP API)
• General
• Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Recommended Browser: Google Chrome
• Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)
• Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
• Memory 512MB RAM, 256MB Flash
• Environmental & Electrical
• Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
• * Start up should be done at above -20°C
• Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
• Certification IP66, IK10
• Input Voltage PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption PoE: Max 8.00W
• 12VDC: Max 7.00W
• Mechanical
• Color / Material Dark grey / Aluminum
• Product Dimensions / Weight Ø70.0×246.0mm(Ø2.76×9.69?), 750g(1.65 lb)
• • Design and specifications are subject to change without notice.
• • Wisenet is the proprietary brand of Hanwha Techwin.
