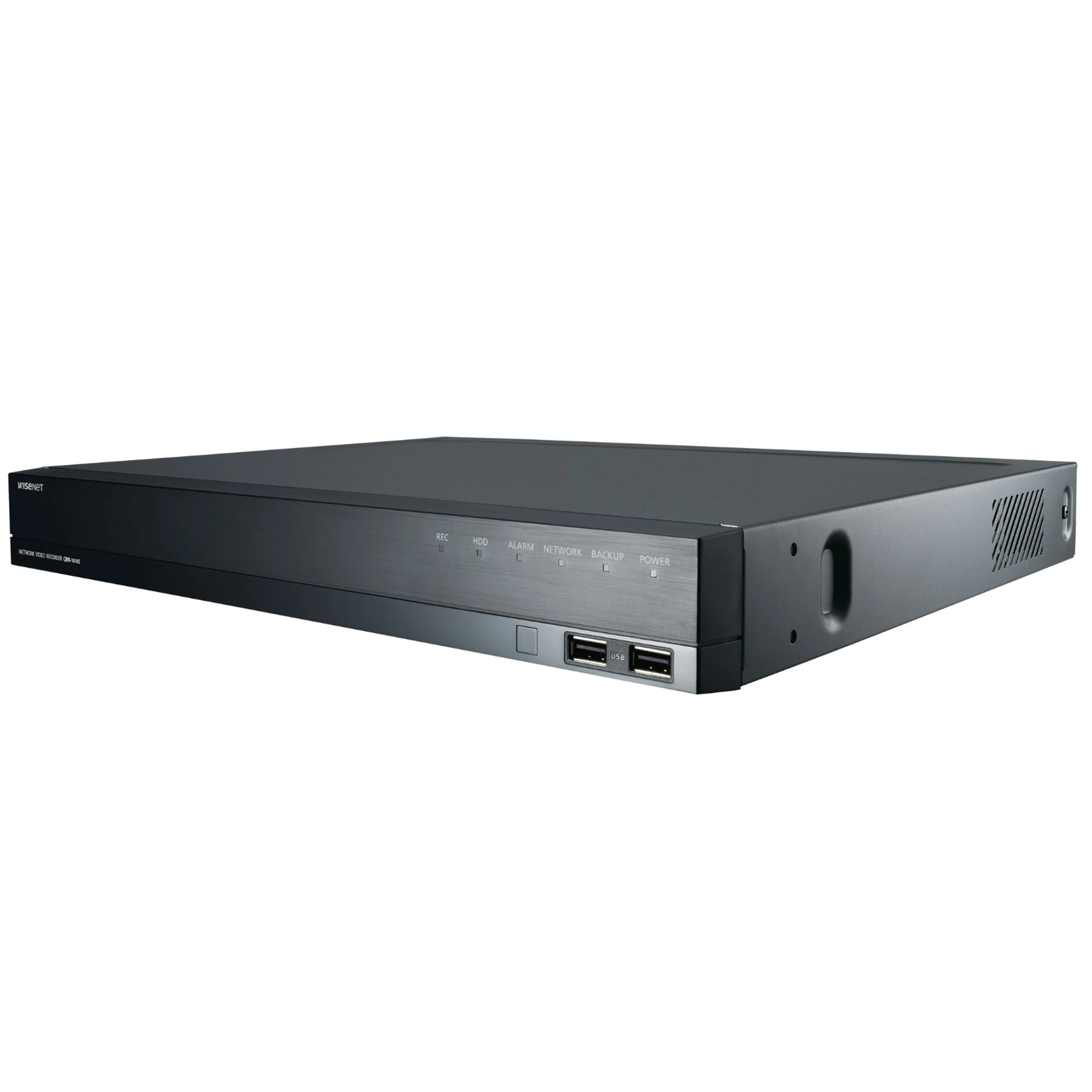

WISENET CCTV QRN-1610S

16CH 8M H.265 NVR with PoE Switch

• Up to 16ch 8megapixel supported

• H.265, H.264, MJPEG codec supported

• 128Mbps network camera recording

• Plug & play by 16 PoE ports

• Max. 2HDDs supported

• HDMI / VGA local monitor

• P2P service (QR code connect) support

Product Spec

• Display
• Network camera
• Inputs Max. 16CH
• Resolution 8MP ~ CIF
• Protocols Wisenet, ONVIF
• Decoding
• Local Display [Clone Display] HDMI: 3840 x 2160, 1920×1080, 1280×720
• VGA: 1920×1080, 1280×720
• Resolution 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps),,720p(480fps), D1(480fps)
• Performance
• Operating System
• Embedded Linux
• Record
• Compression H.265, H.264, MJPEG
• Recording Bandwidth Max. 128Mbps
• Resolution 8MP ~ CIF
• Mode Normal, Schedule(Continuous/Event), Event (Pre/Post)
• Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
• Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
• Search & Play
• Playback Bandwidth Max. 32Mbps(16CH simultaneously)
• User Max. 4 Users (Local 1, Remote 3)
• Simultaneous playback Max. 16CH(Network)
• Max. 8CH(Local Monitor)
• Fisheye Dewarping N/A (processed on Web / CMS)
• Storage
• Supported HDD Up to 6TB
• HDD Slot SATA 2ea(Max. 12TB)
• Backup
• File backup BU/Exe(GUI), JPG/AVI(Network)
• Function Multi channel(Upto 8CH) Play, Date-Time/Title display
• Network
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS Wisenet DDNS
• Transmission Bandwidth Max. 128Mbps
• Audio
• Input/Output 16 CH(network)
• Compression G.711, G.726, AAC(16/48KHz)
• Audio Communication 2-Way
• Max Remote Users Search(3), Live Unicast(10), Multicast(20)
• Security IP address filtering, User access Log, 802.1x, Encryption
• Web viewer
• Supported OS Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
• Supported browser Plug-in free web viewer
• – Supported Browser: Google Chrome 47, MS Edge 20
• Plug-in Webviewer
• – Supported MS Explore 11, Apple Safari 9 * Mac OS X only
• Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
• Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS
• Functions
• Camera Setup
• Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
• Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
• PTZ
• Control Via GUI, Webviewer, SPC-2000
• Smart phone
• Support Model iOS, Android
• Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
• Control Live(Multi-Profile Support), Playback
• Max. Remote Users Search(3), Live Unicast(10)
• Redundancy
• ARB Support
• Easy configuration P2P(QR code)
• Interface
• HDMI 1EA
• VGA 1EA
• Audio Out(1EA, RCA, Line)
• Ethernet RJ-45(10/100/1000BASE-T) x 1
• RJ-45(PoE+) x 16
• Alarm In 4EA, Out 2EA
• USB 2EA(Front 1, Rear 1)
• Power inlet AC 1EA
• System
• System Control Mouse, IR remocon, Web, Controller
• Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
• Environmental
• Operating Temperature 0°C to +40°C(32? to 104?)
• Operating Humidity 20% ~ 85% RH
• Electrical
• Power Input 100~240VAC±10%
• Power Consumption Max. 158.2W(2HDDs, PoE on)
• Max. 34.6W(2HDDs, PoE off)
• PoE Budget Max. 100W
• Mechanical
• Color / Material Black / Metal
• Dimension (WxHxD) W370.0 x H44.0 x D320 mm (14.57? x 1.73? x 12.6?) (1U)
• Weight 2.79Kg (6.15lb)
• • Design and specifications are subject to change without notice.
• • Wisenet is the proprietary brand of Hanwha Techwin
