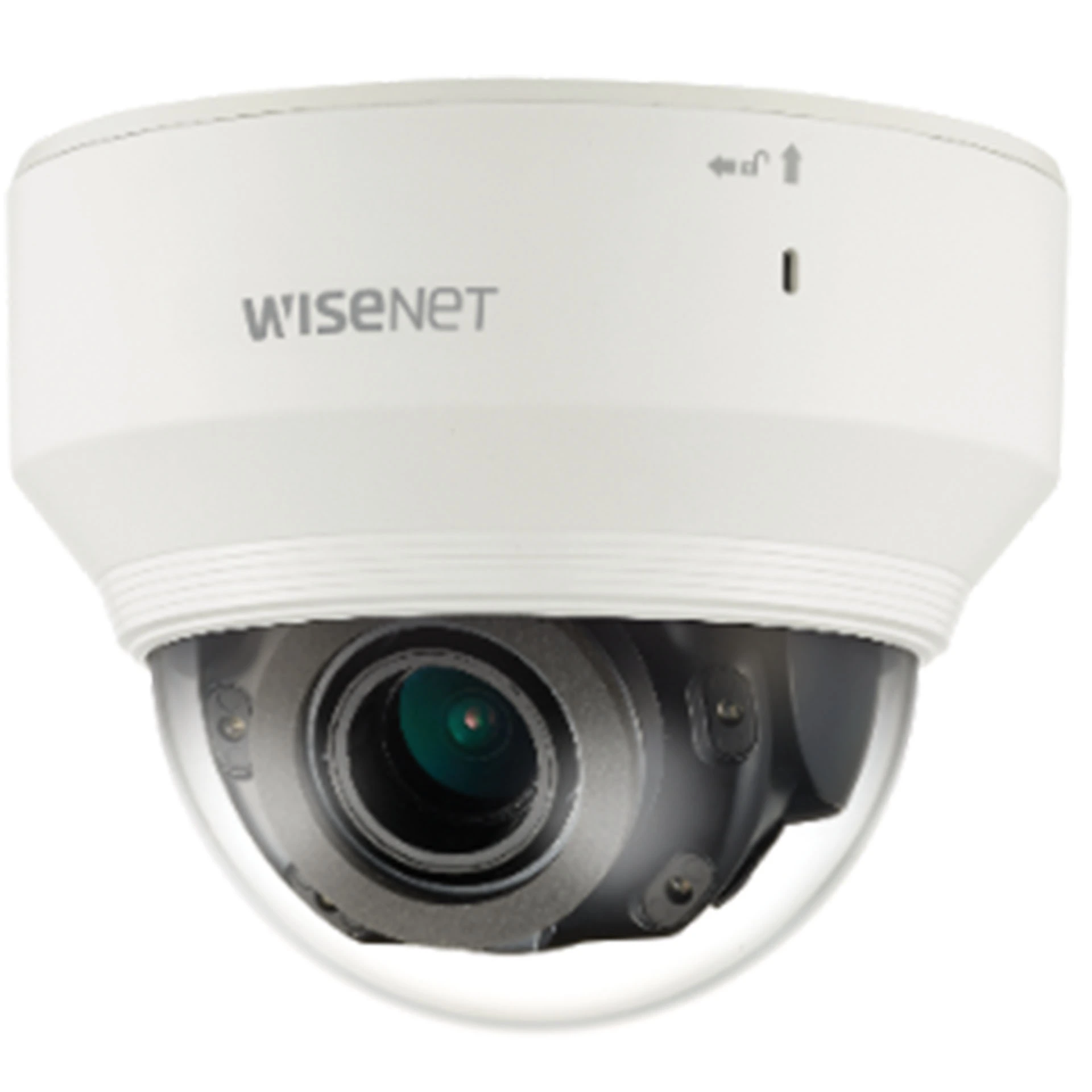

WISENET PND-9080R

PND-9080R

4K H.265 NW IR Dome Camera

• Max. 12M (4000 x 3000) resolution

• Max. 20fps@12M, Max.30fps@8M

• 0.3Lux@F1.6 (Color), 0Lux (B/W : IR LED on)

• 4.5 ~ 10mm (2.2x) motorized varifocul lens

• H.265, H.264, MJPEG suppport

• Day & Night (ICR), WDR (120dB), Simple focus, P-Iris

• Motion detection, Defocus detection, Tampering

• SD/SDHC/SDXC memoty slot (Max, 128GB), NAS, Local PC

support

Video

• Imaging Device 1/1.7” 12.4MP CMOS
• Effective Pixels 4072(H)x3046(V)
• Min. Illumination Color: 0.3Lux(F1.6, 1/30sec), 0.01Lux(F1.6, 2sec)
• B/W: 0Lux(IR LED On)
• Video Out CVBS: 1.0 Vp-p / 75O composite, 720×480(N), 720×576(P) for installation
• Lens
• Focal Length (Zoom Ratio) 4.5~10mm(2.2x) motorized varifocal
• Max. Aperture Ratio F1.6
• Angular Field of View [4096×2160] H: 100.3°(Wide)~45.6°(Tele) / V: 49.7°(Wide)~24.0°(Tele)
• [3840×2160] H: 92.3°(Wide)~42.6°(Tele) / V: 49.7°(Wide)~24.0°(Tele)
• Min. Object Distance 0.5m(1.64ft)
• Focus Control Simple focus, Manual
• Lens Type P iris
• Pan / Tilt / Rotate
• Pan / Tilt / Rotate Range 0°~354° / 0°~67° / 0°~355°
• Operational
• IR Viewable Length 30m(98.42ft)
• Camera Title Displayed up to 60 characters
• Day & Night Auto(ICR)
• Backlight Compensation BLC, WDR, SSDR
• Wide Dynamic Range 120dB
• Digital Noise Reduction SSNR
• Defog Support(built-in optical filter)
• Motion Detection 8ea, polygonal zones
• Privacy Masking 16ea, rectangular zones
• – Color: Grey/Green/Red/Blue/Black/White
• Gain Control Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation Flip, Mirror, Hallway view(90°/270°)
• Analytics Defocus detection, Fog detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Analytics, Network disconnect, Alarm input
• Alarm Events File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• Audio In Selectable(mic in/line in/built-in mic)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out Line out, Max.output level: 1Vrms
• Network
• Ethernet RJ-45(10/100/1000BASE-T)
• Video Compression H.265/H.264: Main/Baseline/High, MJPEG
• Resolution [8M mode] 4096×2160, 3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
• [12M mode] 4000×3000, 3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
• Max. Framerate H.265/H.264: Max. 20fps@4000×3000, Max. 30fps@4096×2160
• MJPEG: 2fps@4000×3000 ~ 2592×1464, 15fps@1920×1080 ~ 320×240
• Smart Codec Manual(5ea area), WiseStream?
• Bitrate Control H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming Unicast(15 users) / Multicast
• Multiple streaming(Up to 3 profiles)
• Audio Compression G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
• Application Programming Interface ONVIF Profile S/G/Q
• SUNAPI(HTTP API)
• SVNP
• Wisenet open platform
• Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Recommended Browser: Google Chrome
• Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)
• Memory 1024MB RAM , 256MB Flash
• Environmental
• Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
• * Start up should be done at above -10°C (+14°F)
• Storage Temperature / Humidity -40°C ~ +60°C(-40°F ~ +140°F) / Less than 90% RH
• Certification IK08
• Electrical
• Input Voltage PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption PoE: Max 10.50W
• 12VDC: Max 9.50W
• Mechanical
• Color / Material Ivory / Plastic+Aluminum
• Product dimensions / weight Ø140.8×113.0mm(Ø5.54×4.45?), 610g(1.34 lb)
