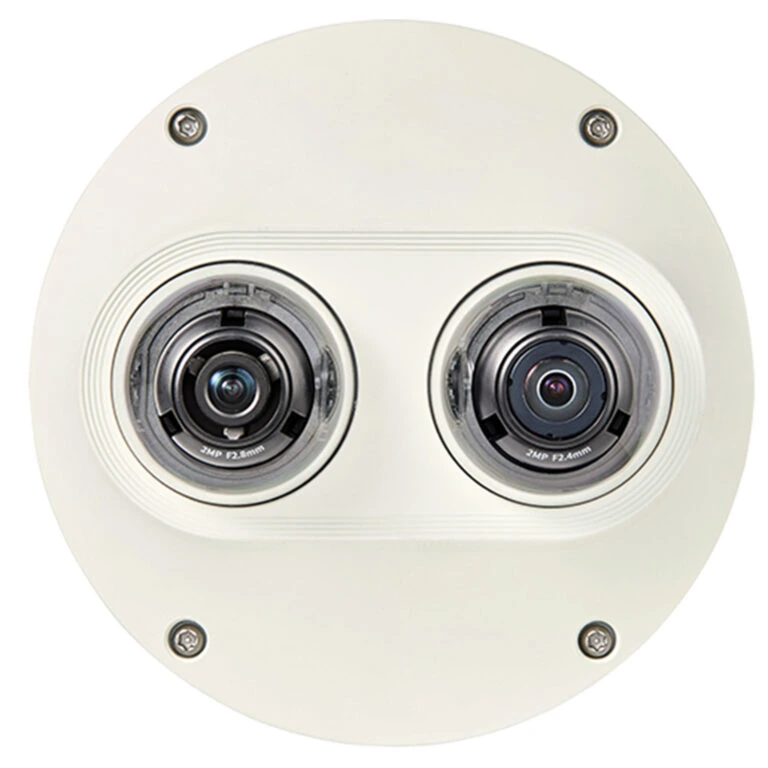

WISENET PNM-7000VD

PNM-7000VD

2x2MP outdoor dome

Network vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP X 2 sensors) 4MP @ 60fps, modular lenses from 2.4, 2.8, 3.6 and 6mm lenses, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, built in analytics, 2x SD card, hallway view, HLC, defog detection, DIS, PoE, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F). Lens modules: SLA-2M2400D (2.4mm), SLA-2M2800D (2.8mm), SLA-2M3600D (3.6mm), SLA-2M6000D (6mm)

VIDEO

• Video Out CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• OPERATIONAL
• Camera Title
• Off / On (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White),
• Transparency, Auto scale by resolution
• Day & Night Auto (Electrical) / Color / B/W / Schedule
• Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range 150dB
• Contrast Enhancement SSDR (Off / On)
• Digital Noise Reduction SSNR? (2D + 3D noise filter) (Off / On)
• Digital Image Stabilization Off / On
• Defog Off / Auto / Manual
• Motion Detection Off / On (8ea, 8point polygonal zones)
• Privacy Masking
• Off / On (32ea, polygonal zones)
• – Color : Gray / Green / Red / Blue / Black / White
• – Mosaic
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor (included mercury & Sodium)
• Contrast Level adjustment
• LDC (Lens Distortion Correction) On / Off (5 Levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital Zoom 24x
• Flip / Mirror Off / On, Hallway view : 90°/270°
• Video & Audio Analytics Tampering, Loitering, Directional detection, Fog & Dust detection, Virtual line,
• Enter / Exit, (Dis)Appear, Face detection, Motion detection
• Alarm Triggers Motion detection, Video analytics, Network disconnect
• Alarm Events File upload via FTP, E-mail, Notification via E-Mail
• Local storage (SD / SDHC / SDXC) or NAS recording at event triggers
• Pixel Counter Support
• NETWORK
• Ethernet RJ-45 (10/100/1000BASE-T)
• Video Compression Format H.265/H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x
• 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : 2M Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec Manual Mode (area-based : 5EA)
• WiseStream II Support
• Video Quality Adjustment H.265 / H.264, MJPEG : Target Bitrate Level Control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple Streaming (Up to 10 Profiles)
• IP IPv4, IPv6
• Protocol
• TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS,
• DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS,
• UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication,
• IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 users at unicast mode
• Edge Storage
• SD/SDHC/SDXC 2slots (Each)
• – Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.
• Local PC for instant recording
• Application Programming Interface ONVIF Profile S, SUNAPI (HTTP API)
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese,
• Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Non-plugin Webviewer
• Supported Browser : Google Chrome 63, MS Edge 41, Mozilla Firefox 57
• (Windows 64bit only), Apple Safari 11 (Mac OS X only)
• Plug-in Webviewer
• Supported Browser : MS Explorer 11, Apple Safari 11 (Mac OS X only)
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Ingress Protection IP66
• Vandal Resistance IK10
• ELECTRICAL
• Input Voltage / Current PoE (IEEE802.3af, Class3)
• Power Consumption Max. 12.95W (PoE)
• MECHANICAL
• Color / Material Ivory (NCS S 0502-Y) / Metal
• Dimensions (WxH) Ø161.0 x 73.0mm (6.34? x 2.87?)
• Weight 840g (1.85 lb)
• Key Features
• • 2ea x 1920 x 1080 resolution
• • Max. 60fps@2M (H.265 / H.264)
• • H.265, H.264, MJPEG codec supported
• • Day & Night, WDR (150dB)
• • Loitering, Directional detection, Fog detection,
• Motion detection, Tampering
• • SD/SDHC/SDXC memory 2 slots (each camera),
• WiseStreamII Support
• 2M Multi-Directional Camera
• PNM-7000VD
• Lens (Optional)
• Accessories (Optional)
• * The lastest product information / specification can be found at hanwha-security.com
