WISENET PNM-9000VQ

PNM-9000VQ

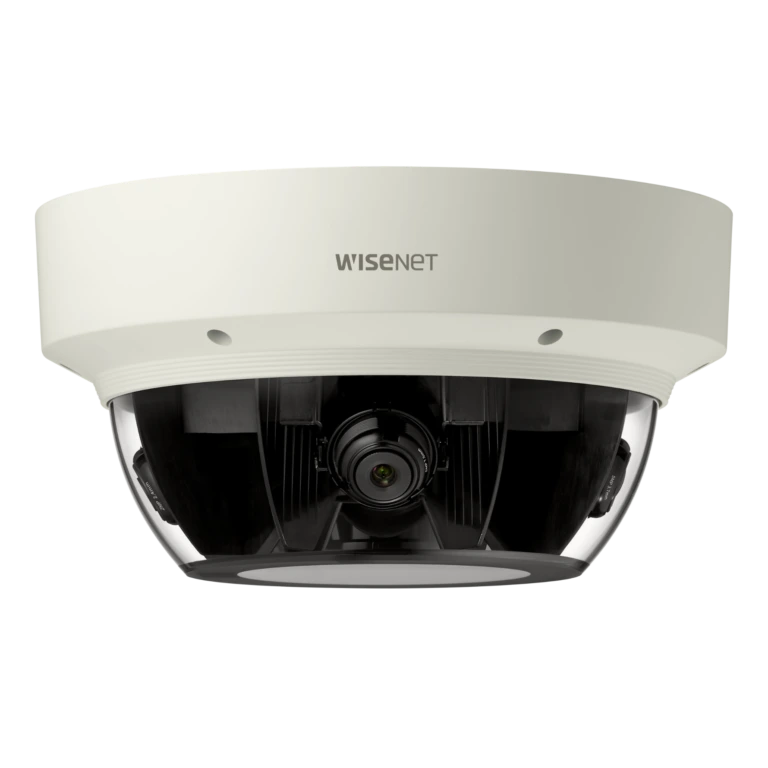

4x 2MP / 5MP Multi-sensor Multi-directional camera

Network vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP/5MP X 4 sensors) 8MP ~20MP (2MP @ 60fps or 5MP @30fps), fixed focal lens modules, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR @ 2MP or 120dB @ 5MP, defocus detection, built in analytics, 4x SD card, hallway view, HLC, fog detection, DIS(Gyro Sensor), PoE+, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F)

VIDEO

• Imaging Device (See the optional lens)
• Total Pixels (See the optional lens)
• Effective Pixels (See the optional lens)
• Scanning System (See the optional lens)
• Min. Illumination (See the optional lens)
• S / N Ratio (See the optional lens)
• Video Out CVBS : 1.0 Vp-p / 75O composite, 720×480 (N), 720×576 (P), for installation
• OPERATIONAL
• Camera Title
• On / Off (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency,
• Auto scale by resolution
• Day & Night Auto (Electrical) / Color / B/W / Schedule
• Backlight Compensation Off / BLC / HLC (Masking / Dimming) / WDR
• Contrast Enhancement SSDR (On / Off)
• Digital Noise Reduction SSNR5 (2D + 3D noise filter) (On / Off)
• Digital Image Stabilization On / Off
• Defog Off / Auto / Manual
• Motion Detection On / Off (8ea, 8 point polygonal zones)
• Privacy Masking
• On / Off (32ea, polygonal zones)
• – Color : Grey / Green / Red / Blue / Black / White
• – Mosaic
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
• Contrast Level adjustment
• LDC On / Off (5 levels with Min / Max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1 / 12,000sec)
• Digital Zoom 24x
• Flip / Mirror On / Off, Hallway view : 90° / 270°
• Intelligent Video Analytics Tampering, Loitering, Directional detection, Fog detection, Virtual line, Enter / Exit,
• Appear / Disappear, Face detection, Motion detection, Defocus detection
• Alarm Triggers Motion detection, Video analytics, Network disconnect
• Alarm Events File upload via FTP, E-Mail / Notification via E-Mail
• Local storage (SD / SDHC / SDXC) at event triggers
• Pixel Counter Support
• NETWORK
• Ethernet RJ-45 (10 / 100 / 1000 BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, Motion JPEG
• Resolution
• 5MP : 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
• 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 320 x 240
• 2MP : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448,
• 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : 2M Max. 60fps, 5M 30fps at all resolutions
• Motion JPEG : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStream? Support
• Video Quality Adjustment H.264 / H.265 : Target bitrate level control
• MJPEG : Target bitrate level control
• Bitrate Control Method H.264 / H.265 : CBR or VBR
• MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 profiles)
• IP IPv4, IPv6
• FIRST EDITION 07-2018 © 2018 Hanwha Techwin Co., Ltd. All rights reserved.
• PNM-9000VQ
• Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP,
• ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security HTTPS (SSL) login authentication, Digest login authentication. IP address filtering,
• User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 users at Unicast mode
• Edge Storage
• SD / SDHC / SDXC 4 slots (Each CH)
• – Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded.
• – Local PC for instant recording
• Application Programming Interface ONVIF Profile S
• SUNAPI (HTTP API)
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese,
• Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer
• Supported OS: Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12
• Non-plugin Webviewer supported browser
• : Google Chrome 54, MS Edge 38, Mozilla Firefox 49(Windows 64bit only) ,
• Apple Safari 9 (Mac OS X only)
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Ingress Protection IP66
• Vandal Resistance IK10
• ELECTRICAL
• Input Voltage / Current PoE+ (IEEE802.3at)
• Power Consumption 25.5W
• MECHANICAL
• Color / Material Ivory / Metal
• Dimension (W x H x D) Ø 253 x 130 mm (Ø 9.96” x 5.12”)
• Weight 3.0 kg (6.7 lb)
• OPTIONAL LENS
• SLA-2M2400Q 1 / 2.8? 2MP, 2.4mm, H : 135.4°/ V : 71.2°/ D : 161.6°
• SLA-2M2800Q 1 / 2.8? 2MP, 2.8mm, H : 107.4°/ V : 62.2°/ D : 122.0°
• SLA-2M3600Q 1 / 2.8? 2MP, 3.6mm, H : 94.8°/ V : 49.3°/ D : 114.3°
• SLA-2M6000Q 1 / 2.8? 2MP, 6.0mm, H : 50.4°/ V : 28.8°/ D : 58.1°
• SLA-5M3700Q 1 / 1.8? 5MP, 3.7mm, H : 97.5°/ V : 71.9°/ D : 126.2°
• SLA-5M4600Q 1 / 1.8? 5MP, 4.6mm, H : 77.9°/ V : 57.9°/ D : 98.7°
• SLA-5M7000Q 1 / 1.8? 5MP, 7.0mm, H : 50.7°/ V : 37.8°/ D : 63.8°
