WISENET QND-6010R/QND-6020R/QND-6030R

SAMSUNG WISENET QND-6010R/QND-6020R/QND-6030R

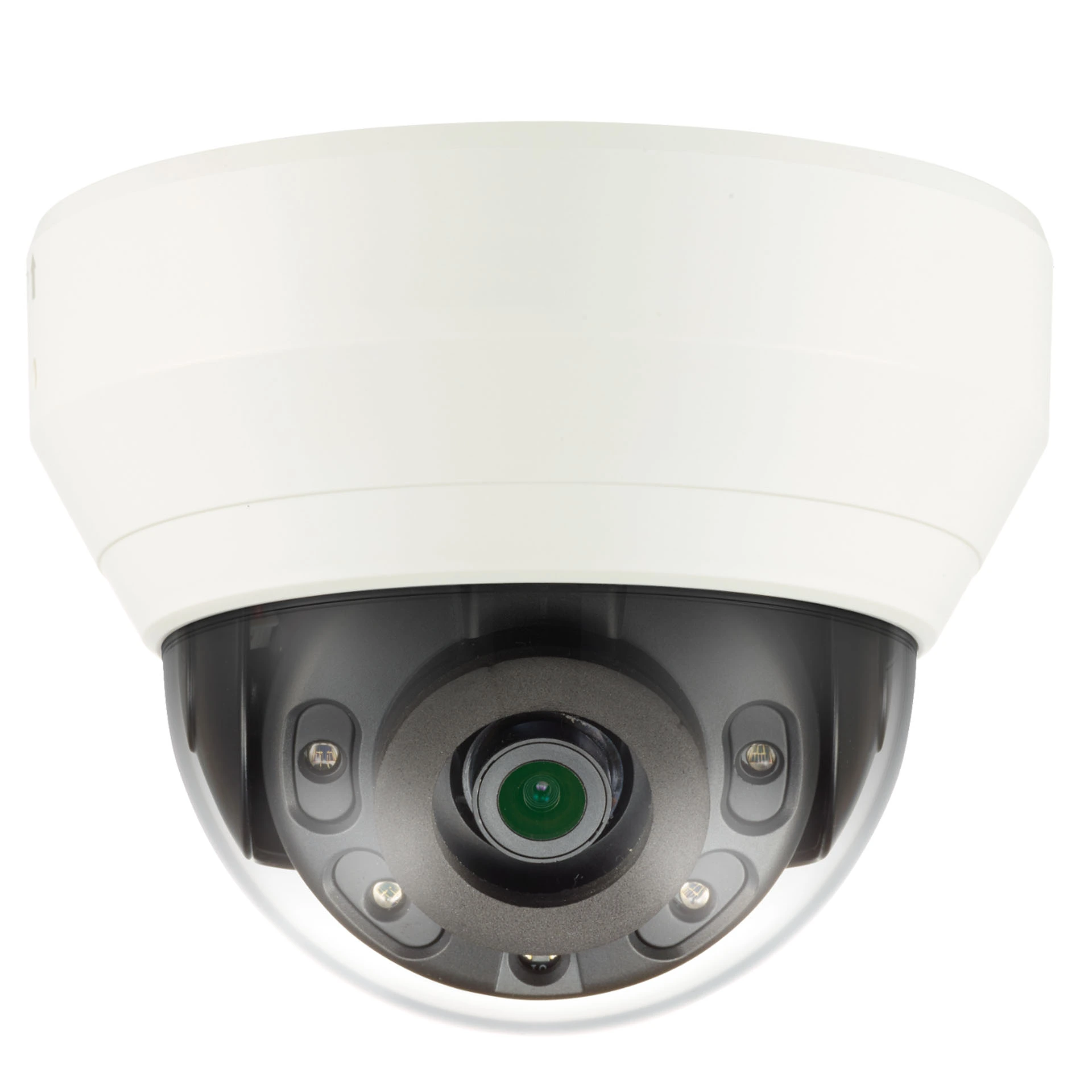

Samsung QND-6010R/QND-6020R/QND-6030R is a 2MP indoor dome network camera featuring WiseStream, Hanwha’s compression technology, It Support triple codec H.265/H.264/MJPEG, 2.8mm lens(QND-6010R)3.6mm(6020R)6mm(6030R), 20M IR, Supports PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB)

VIDEO

• Imaging Device 1/2.9? 2.19M CMOS
• Total Pixels 2,000(H) x 1,121(V)
• Effective Pixels 1,984(H) x 1,105(V)
• Scanning System Progressive
• Min. Illumination Color : 0.15Lux, B/W : 0Lux (IR LED on)
• S / N Ratio 50dB
• LENS
• Focal Length (Zoom Ratio) 2.8mm fixed (QND-6010R), 3.6mm fixed (QND-6020R), 6mm fixed (QND-6030R)
• Max. Aperture Ratio F1.8
• Angular Field of View
• H : 110.0° / V : 61.0° / D : 125.0° (QND-6010R)
• H : 86.48° / V : 46.22° / D : 102.44° (QND-6020R)
• H : 52.54° / V : 28.86° / D : 61.14° (QND-6030R)
• Lens Type Fixed
• Mount Type Board type
• PAN / TILT / ROTATE
• Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
• OPERATIONAL
• IR Viewable Length 20m (65.62ft)
• Camera Title
• Off / On (Displayed up to 20 characters per line)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
• Transparency, Auto scale by resolution
• Day & Night True Day & Night
• Backlight Compensation Off / BLC / WDR
• Wide Dynamic Range 120dB
• Digital Noise Reduction SSNR (Off / On)
• Motion Detection Off / On (4ea polygonal zones)
• Privacy Masking Off / On (6ea rectangular zones)
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• LDC (Lens distortion correction) Off / On (5 levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker
• Flip / Mirror Flip / Mirror / Hallway view
• Intelligent Video Analytics Motion detection with metadata, Tampering, Defocus detection
• Alarm I/O Input 1 / Output 1
• Alarm Triggers Motion detection, Tampering detection, SD card error, NAS error,
• Alarm input, Defocus detection
• Alarm Events File upload via FTP and E-mail, Local storage recording at event,
• Notification via E-mail, External output
• Pixel Counter Support (Plug-in viewer only)
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.265, H.264, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
• 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265/H.264 : Max. 30fps at all resolutions, MJPEG : Max. 15fps
• Smart Codec WiseStream
• Video Quality Adjustment H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
• Bitrate Control Method H.265/H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 3 profiles)
• Audio In Selectable (Built-in microphone), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
• Audio Compression Format G.711 u-law / G.726 selectable
• G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Audio Communication Uni-directional audio
• IP IPv4, IPv6
• Protocol
• TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS,
• DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS,
• QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication
• IP address filtering, User access log, 802.1x authentication
• Streaming Method Unicast / Multicast
• Max. User Access 6 users at unicast mode
• Storage
• micro SD/SDHC/SDXC (Max. 128GB), NAS
• – Motion images recorded in the SD memory card can be downloaded
• – Manual recording at local PC
• Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
• Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
• Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek
• Web Viewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
• Plug-in free Webviewer
• – Supported Browser : Google Chrome 47, MS Edge 20
• Plug-in Webviewer
• – Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
• Central Management Software SmartViewer
• ENVIRONMENTAL
• Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Vandal Resistance IK08
• ELECTRICAL
• Input Voltage / Current PoE (IEEE802.3af, Class3) / 12V DC
• Power Consumption Max. 7W (PoE), Max. 5.8W (12V DC) : QND-6010R
• Max. 6.5W (PoE), Max. 5.43W (12V DC) : QND-6020R/6030R
• MECHANICAL
• Color / Material Ivory / Plastic
• Dimensions (WxH) Ø110.0 x 86.0mm (Ø4.33? x 3.39?)
• Weight 290g (0.64 lb)
