WISENET QNV-6070R

SAMSUNG QNV-6070R

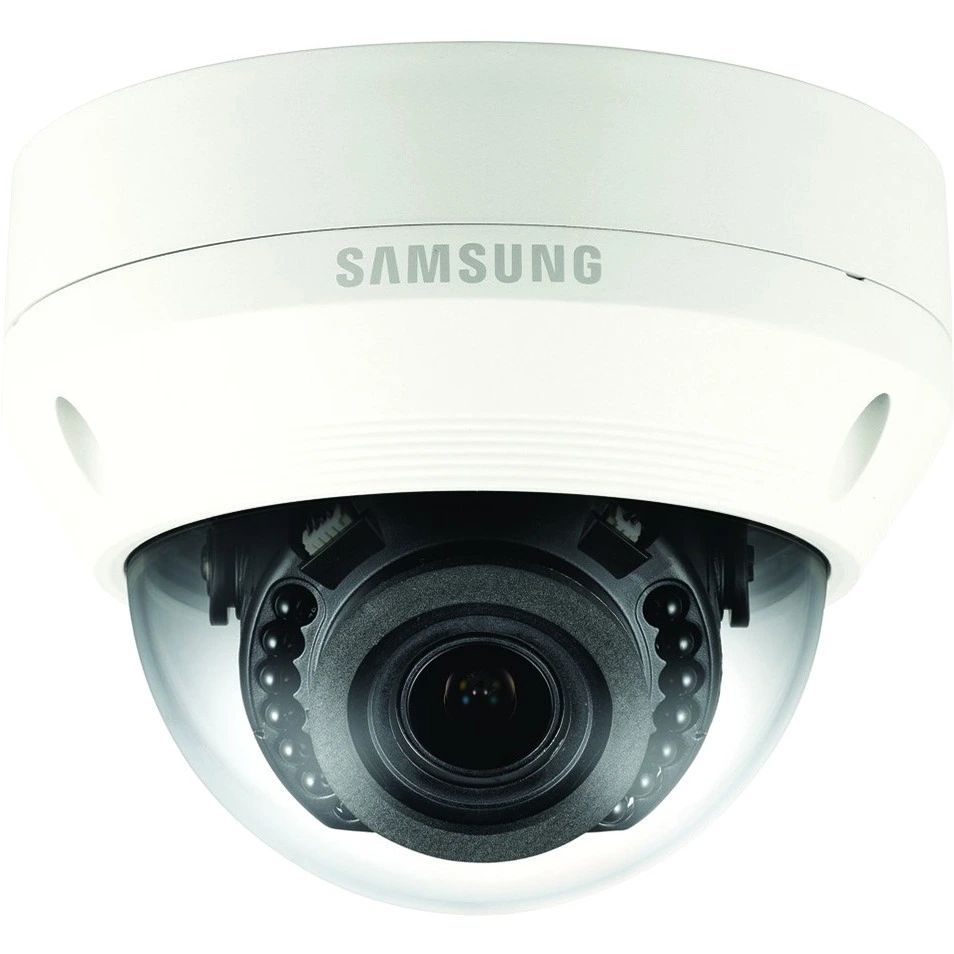

The QNV-6070R from Hanwha’s Q Series affordable network camera line is a 2MP outdoor vandal dome network camera featuring WiseStream, Hanwha’s compression technology, triple codec H.265/H.264/MJPEG, 2.8 ~ 12.0mm manual varifocal lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).

VIDEO

• Imaging Device 1/2.9? 2.19M CMOS
• Total Pixels 2,000(H) x 1,121(V)
• Effective Pixels 1,984(H) x 1,105(V)
• Scanning System Progressive
• Min. Illumination Color : 0.095Lux (30IRE), B/W : 0Lux (IR LED on)
• S / N Ratio 50dB
• LENS
• Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) manual
• Max. Aperture Ratio F1.4
• Angular Field of View H : 103.8° ~ 32.4° / V : 53.7° ~ 18.4° / D : 121.9° ~ 37.1°
• Focus Control Manual
• Lens Type DC auto iris
• Mount Type Board type
• PAN / TILT / ROTATE
• Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
• OPERATIONAL
• IR Viewable Length 30m (98.43ft)
• Camera Title
• Off / On (Displayed up to 20 characters per line)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
• Transparency, Auto scale by resolution
• Day & Night True Day & Night
• Backlight Compensation Off / BLC / WDR
• Wide Dynamic Range 120dB
• Digital Noise Reduction SSNR (Off / On)
• Motion Detection Off / On (4ea polygonal zones)
• Privacy Masking Off / On (6ea rectangular zones)
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• LDC (Lens distortion correction) Off / On (5 levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker
• Flip / Mirror Flip / Mirror / Hallway view
• Intelligent Video Analytics Motion detection with metadata, Tampering, Defocus deteciton
• Alarm I/O Input 1 / Output 1
• Alarm Triggers Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
• Alarm Events File upload via FTP and E-mail, Local storage recording at event,
• Notification via E-mail, External output
• Pixel Counter Support (Plug-in viewer only)
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.265, H.264, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
• 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240
• Max. Framerate H.265/H.264 : Max. 30fps at 2M all resolutions, MJPEG : 15fps
• Smart Codec WiseStream
• Video Quality Adjustment H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
• Bitrate Control Method H.265/H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 3 profiles)
• Audio In Selectable (microphone/Line-in), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
• Audio Compression Format G.711 u-law / G.726 selectable
• G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Audio Communication Uni-directional audio
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
• SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication
• IP address filtering, User access log, 802.1x authentication
• Streaming Method Unicast / Multicast
• Max. User Access 6 users at unicast mode
• Storage
• micro SD/SDHC/SDXC (Max. 128GB), NAS
• – Motion images recorded in the SD memory card can be downloaded
• – Manual recording at local PC
• Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
• Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
• Web Viewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
• Plug-in free Webviewer
• – Supported Browser : Google Chrome 47, MS Edge 20
• Plug-in Webviewer
• – Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
