WISENET SND-L6083R

SAMSUNG SND-L6083R

SND-L6083R SND-L6083R

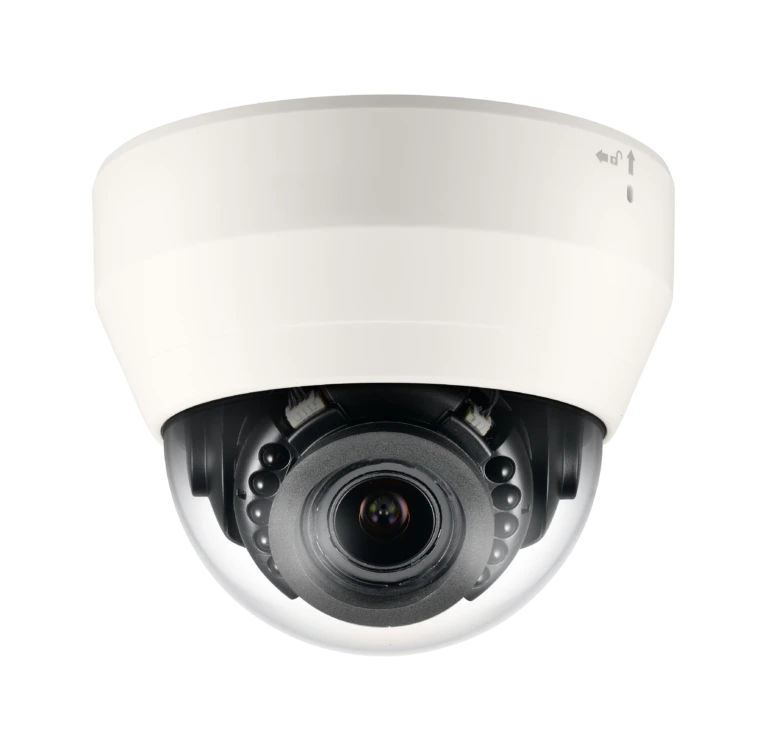

2MP Full HD IR Dome

The SND-L6083R indoor dome camera from Hanwha Techwin’s Wisenet Lite series is perfect for high resolution Full HD monitoring.The horizontal field of view can be adjusted from 32°-103° while the lens distortion correction ensures a natural, distortion-free image. The built-in IR LEDs provide illumination up to 49ft.

VIDEO

• Imaging Device 1/2.9? 2.19M CMOS
• Total Pixels 2,000(H) x 1,121(V)
• Eective Pixels 1,984(H) x 1,105(V)
• Scanning System Progressive
• Min. Illumination Color : 0.095Lux (1/30sec, F1.4), 0.002Lux (2sec, F1.4) B/W : 0Lux (IR LED on)
• LENS
• Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) varifocal
• Max. Aperture Ratio F1.4
• Angular Field ofView H : 103.8°(Wide) ~ 32.4°(Tele) / V : 53.7°(Wide) ~ 18.4°(Tele) /
• D : 121.9°(Wide) ~ 37.1°(Tele)
• Min. Object Distance 0.5m (1.64ft)
• Focus Control Manual
• Lens Type DC auto iris
• Mount Type Board type
• PAN / TILT / ROTATE
• Pan / Tilt/ Rotate Range 0° ~ 350° / 0° ~ 67°/ 0° ~ 355°
• OPERATIONAL
• IRViewable Length 15m (49.21ft)
• Camera Title O / On (Displayed up to 15 characters)
• Day & Night True Day & Night
• Backlight Compensation O / BLC
• Contrast Enhancement (DWDR) SSDR (O / On)
• Digital Noise Reduction SSNR (O / On)
• Motion Detection O / On (4ea rectangular zones)
• Privacy Masking O / On (6ea rectangular zones)
• Gain Control O / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• LDC (Lens Distortion Correction) O / On (5 levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti icker
• Flip / Mirror Flip / Mirror/ Hallway view
• IntelligentVideo Analytics Motion detection with metadata, Tampering
• AlarmTriggers Motion detection, Tampering detection, SD card error, NAS error
• Alarm Events File upload via FTP and E-mail, Localstorage recording at event, Notication via E-mail
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.264, MJPEG
• Resolution 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768,
• 800 x 600, 720 x 576, 640 x 480, 320 x 240
• Max. Framerate
• H.264 : Max. 30fps at all resolutions
• MJPEG : Max. 1fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768,
• Max. 15fps at other resolution
• VideoQuality Adjustment H.264 : Target bitrate level control, MJPEG : Quality level control
• Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 3 proles)
• Audio I/O Built-in mic
• Audio Compression Format G.711 u-law / G.726 selectable
• G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Audio Communication Uni-directional audio
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security
• HTTPS(SSL) login authentication, Digest login authentication
• IP address ltering, User accesslog, 802.1x authentication
• Streaming Method Unicast / Multicast
• Max. User Access 6 users at unicast mode
• Storage
• micro SD/SDHC max. 32G, NAS – Motion imagesrecorded in the SD memory card can be downloaded – Manual recording at local PC
• Application Programming Interface ONVIF Prole S/G, SUNAPI (HTTP API)
• Webpage Language
• English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
• Croatian, Hungarian, Greek, Norwegian, Finnish
• WebViewer
• Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
• Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35),
• Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X
• 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7)
• * Mac OS X only
• Central Management Software SmartViewer
• ENVIRONMENTAL
• OperatingTemperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F)/ Lessthan 90% RH
• Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F)/ Lessthan 90% RH
• ELECTRICAL
• InputVoltage / Current PoE (IEEE802.3af, Class2)
• Power Consumption Max. 5.4W
• MECHANICAL
• Color/ Material Ivory / Plastic
• Dimensions(WxH) Ø119.8 x 98.8mm (Ø4.72? x 3.89?)
