WISENET SNP-6320HN/ME

SAMSUNG SNP-6320HN/ME

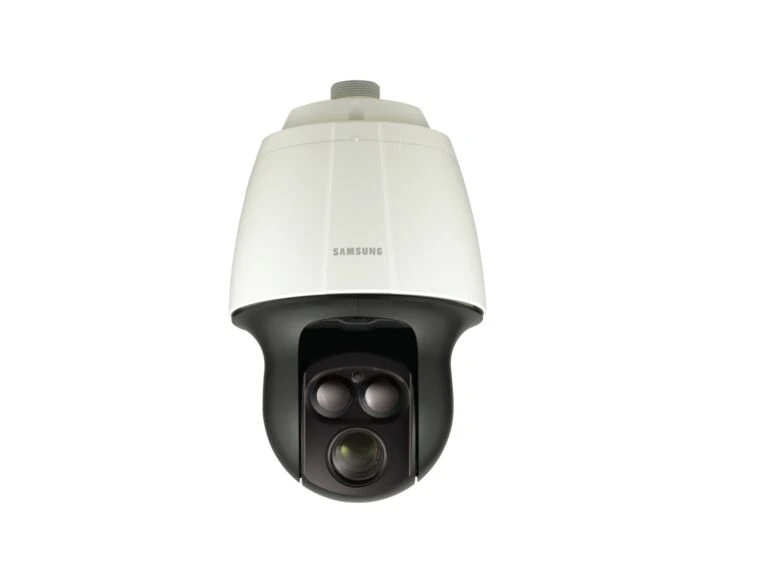

SNP-6320H

2MP Full HD 32x Network PTZ Camera

The SNP-6320H is a 32x optical zoom, 2 megapixel PTZ camera. has the ability to zoom in perfect clarity at an incredible speed allowing it to track your evidence while capturing smooth video. Ultra fast frame rate provides up to 60 frames per second for latency free clear images of moving objects. Auto tracking allows the camera to zoom in on moving objects automatically for operator-free operation. The high-speed pan/tilt mechanism allows movement up to 700 degrees/second for instant response. To meet the rigors of the outdoor environment the camera is IK10 & IP66 rated. Versatile installation is provided using PoE+ for most temperature conditions (-22°F) while 24v AC allows operation down to -58°F.

Imaging Device 1/2.8? 2.38M CMOS

• Total / Effective Pixels 1,952(H) x 1,116(V), 2.18M pixels/ 1,944(H) x 1,104(V), 2.14M pixels
• Scanning System Progressive
• Min. Illumination
• Color : 0.3Lux (1/30sec, F1.6, 50IRE) , 0.005Lux (2sec, F1.6, 50IRE)
• B/W : 0.03Lux (1/30sec, F1.6, 50IRE), 0.0005Lux (2sec, F1.6, 50IRE)
• Color : 0.2Lux (1/30sec, F1.6, 30IRE), 0.003Lux (2sec, F1.6, 30IRE)
• B/W : 0.01Lux (1/30sec, F1.6, 30IRE), 0.0001Lux (2sec, F1.6, 30IRE)
• S / N Ratio 50dB
• Video Output CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• LENS
• Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
• Max.Aperture Ratio F1.6(Wide) / F4.4(Tele)
• Angular Field of View H : 62.8°(Wide) ~ 2.23°(Tele) / V : 36.8°(Wide) ~ 1.26°(Tele)
• Min. Object Distance Wide : 1.4m (4.59ft), Tele : 1.9m (6.23ft) Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
• Focus Control Auto / Manual / One push
• Lens / Mount Type DC auto iris/ Board-in type
• PAN / TILT / ROTATE
• Pan / Tilt Range 360° Endless/ 210° (-15° ~195° )
• Pan / Tilt Speed Preset : 700°/sec,Manual : 0.024°/sec ~ 120°/sec
• Preset / Preset Accuracy 255ea / ±0.2°
• Auto Tracking / Aut0 Run Off / On – Home, Preset, Swing, Group, Tour, Auto Pan, Schedule
• OPERATIONAL
• Camera Title Off / On (Displayed up to 15 characters)
• Day & Night Auto (ICR) / Color / B/W
• Backlight Compensation Off / BLC / HLC
• Wide Dynamic Range 120dB
• Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
• Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
• Digital Image Stabilization Off / On
• Defog Off / Auto / Manual
• Motion Detection Off / On (4ea rectangle zone)
• Privacy Masking Off / On (32 zones of rectangle zone)
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital Zoom 16x
• Flip / Mirror Off / On
• Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear,Audio detection, Face detection
• Alarm I/O Input 4ea / Output 2ea (Relay)
• Remote Control Interface RS-485
• RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell,AD, Vicon, Bosch, GE
• Alarm Triggers Motion detection, Tampering,Audio detection, Face detection, Video analytics,Alarm input, Network disconnection
• Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP,
• Localstorage (SD/SDHC/SDXC) or NAS recording at event alarm triggers, External output
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.264 (MPEG-4 part 10 / AVC),MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
• 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
• Max. Framerate
• H.264 :Max. 60fps at all resolutions
• MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 :Max. 15fps
• 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 :Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea), Face detection mode
• Video Quality Adjustment H.264 : Compression level, Target bitrate level control,MJPEG : Quality level control
• Bitrate Control Method H.264 : CBR or VBR,MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 profiles)
• Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out Line out (3.5mm mono jack),Max output level : 1 Vrms
• Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz,
• G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Audio Communication Bi-directional audio
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
• SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2),ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication
• IP addressfiltering, User accesslog, 802.1x authentication
• Streaming Method Unicast / Multicast
• Max. User Access 15 users at unicast mode
• Edge Storage
• SD/SDHC/SDXC (SNP-6320 :micro SD type, SNP-6320H : SD type)
• Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded
• NAS (Network Attached Storage)
• Application Programming Interface ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2
• Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese,
• Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
• Web Viewer
• Supported OS :Windows XP / VISTA / 7 / 8 / 8.1,MAC OS X 10.7 / 10.8
• Supported Browser :Microsoft Internet Explorer (Ver. 8 ~ 11),Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 32),Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 Only), 5.1.7)
• * Mac OS X only
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature /
• Humidity
• 24V AC :-50°C ~ +55°C (-58°F ~ +131°F) /
• Lessthan ~ 90% RH
• PoE+ :-30°C ~ +55°C (-22°F ~ +131°F) /
• Lessthan 90% RH
• -10°C ~ +55°C (+14°F ~ +131°F) /
• Lessthan 90% RH
• Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Lessthan 90% RH
• Ingress Protection / Vandal Resistance IP66 / IK10 N/A / IK10 (With SHP-3701H)
• ELECTRICAL
• Input Voltage / Current 24V AC, PoE+ (IEEE802.3at, Class3)
• Power Consumption Max. 24W (Heater off),Max. 65W (Heater on, 24V AC) Max. 20W
• MECHANICAL
• Color / Material Ivory / Plastic + Metal
• Dimensions (WxH) Ø223.4 x 293.6mm (Ø8.8? x 11.56?) Ø152.0 x 218.0mm (Ø5.98? x 8.58?)
• Weight 3.3Kg (7.28 lb) 2.2Kg
