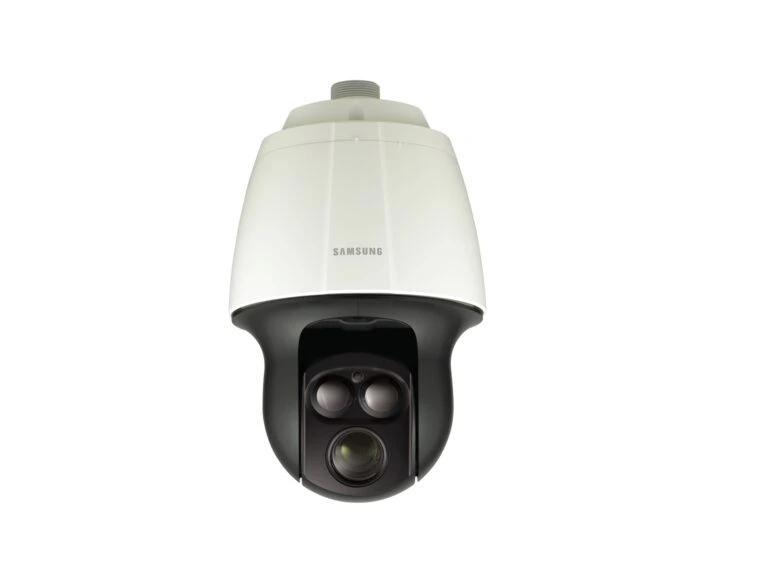

WISENET SNP-6320RH

SAMSUNG SNP-6320RH

SNP-6320RH

2MP Full HD 32x Network IR PTZ Dome Camera

The SNP-6320RH features a 32x optical zoom lens and IR viewable length up to 493ft enabling users to capture Full HD high quality images anytime, anywhere. With endless 360° pan rotation and 190° tilt control, advanced Auto Tracking functions are suitable to make your monitoring more powerful. Power is supplied by 24v AC to accomodate powerful IR illuminators & ultra-low temperature operations.

VIDEO

• Imaging Device 1/2.8? 2.38M CMOS
• Total/ Eective Pixels 1,952(H) x 1,116(V), 2.18M pixels/ 1,944(H) x 1,104(V), 2.14M pixels
• Scanning System Progressive
• Min. Illumination
• Color : 0.3Lux (1/30sec, F1.6, 50IRE), 0.005Lux (2sec, F1.6, 50IRE)
• 0.1Lux (1/30sec, F1.6, 30IRE), 0.0005Lux (2sec, F1.6, 30IRE)
• B/W : 0Lux (IR LED on)
• S / N Ratio 50dB
• Video Output CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• LENS
• Focal Length (Zoom Ratio) 4.4 ~ 140.8mm (Optical 32x)
• Max. Aperture Ratio F1.6(Wide) / F4.9(Tele)
• Angular Field ofView H : 63.68°(Wide) ~ 2.24°(Tele) / V : 37.52°(Wide) ~ 1.28°(Tele)
• Min. Object Distance 1.5m (4.92ft)
• Focus Control AF / One-shot AF / Manual
• Lens/ Mount Type DC auto iris(IR corrected) / Board-in type
• PAN / TILT / ROTATE
• Pan / Tilt Range 360° Endless/ 190° (-5° ~185° )
• Pan / Tilt Speed Preset : 250°/sec, Manual : 0.024°/sec ~ 120°/sec
• Sequence / Preset Accuracy Preset (255ea), Swing, Group (6ea), Trace, Tour, Auto run, Schedule / ±0.2°
• Azimuth Yes(E / W / S / N / NE / SE / NW / SW OSD)
• AutoTracking O / On
• OPERATIONAL
• IR LED 2ea
• Viewable Length 150m (492.13ft)
• Camera Title O / On (Displayed up to 15 characters)
• Day & Night Auto (ICR)/ Color / B/W
• Backlight Compensation O / BLC / HLC / WDR
• Wide Dynamic Range 120dB
• Contrast Enhancement SSDR (O / On)
• Digital Noise Reduction SSNRIII (2D+3D noise lter) (O / On)
• Digital Image Stabilization O / On
• Defog O / Auto / Manual
• Motion Detection O / On (4ea, Rectanglular zones)
• Privacy Masking O / On (32ea, Rectanglular zones)
• – Color : Grey / Green / Red / Blue / Black / White, – Zoom ratio option for mask mode
• Gain Control O / Low / Medium / High / Manual
• White Balance ATW / AWC / Manual / Indoor/ Outdoor / Mercury / Sodium
• Electronic Shutter Speed Minimum / Maximum / Anti icker (2 ~ 1/12,000sec)
• Digital Zoom 16x, area zoom funtion support digital zoom 2x
• Flip / Mirror O / On
• IntelligentVideo Analytics Tampering (Scene change), Virtual line, Enter/ Exit, (Dis)Appear,
• Audio detection, Face detection
• Alarm I/O Input 4ea / Output 3ea (Relay type)
• Remote Control Interface RS-485/422
• RS-485 Protocol Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE
• AlarmTriggers Alarm input, Motion detection, Intelligent video analytics, Network disconnect
• Alarm Events File upload via FTP and E-mail, Notication via E-mail, Localstorage (SD/SDHC) or NAS recording at Network disconnected, External output, PTZ preset
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
• 800 x 600, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180
• Max. Framerate
• H.264 : Max. 60fps at all resolutions
• MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
• 800 x 600, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea), Face detection mode
• VideoQuality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
• Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 proles)
• Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out Line out (3.5mm stereo mini jack), Max output level : 1 Vrms
• Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz,
• G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Audio Communication Bi-directional audio (2-way)
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security
• HTTPS(SSL) login authentication, Digest login authentication
• IP address ltering, User accesslog, 802.1x authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast/ Multicast
• Max. User Access 15 users at unicast mode
• Edge Storage
• SD/SDHC/SDXC (Up to 128G)
• Motion imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded
• NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface ONVIF prole S, SUNAPI (HTTP API), SVNP 1.2, Wisenet Open Platform
• Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish,
• Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
• WebViewer
• Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
• Supported Browser : Microsoft Internet Explorer (Ver.8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19),
• Google Chrome (Ver. 15 ~ 25), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7)
• * Mac OS X only
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• OperatingTemperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F)/ Lessthan 90% RH
• Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F)/ Lessthan 90% RH
• Ingress Protection /Vandal Resistance IP66 / IK10
• ELECTRICAL
• InputVoltage / Current 24V AC only / 6A
• Power Consumption Max. 30W (Heater o)/ Max. 35W/90W (Heater o/on, IR on)
