WISENET SNP-6321

SNP-6321

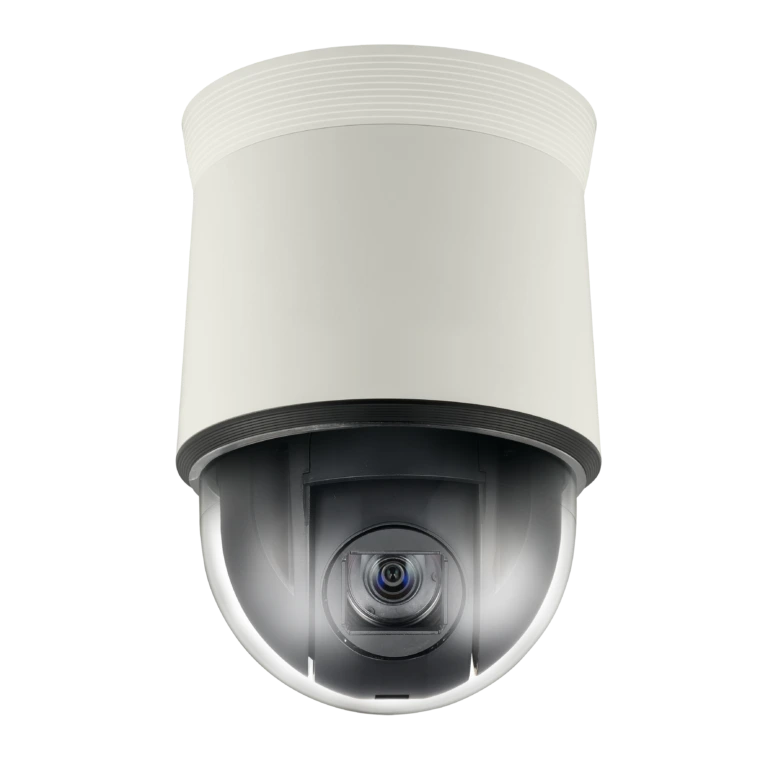

2MP HD 32x Network PTZ Dome Camera

The SNP-6321 is a PTZ dome camera that provides 32x zoom at 2 megapixel Full HD resolution. This Indoor PTZ Dome camera has the ability to zoom in with perfect clarity at an incredible speed allowing you to track your evidence while capturing smooth video. Includes 32 privacy zones with zoom threshold to ensure privacy without obscuring general surveillance. Advanced features include WDR, Intelligent Video Analytics, defog, on-screen compass directions, & SDXC memory card support. Powered by PoE+ for easy installation or 24v AC low voltage.

VIDEO

• Imaging Device 1/2.8? 2.38M CMOS
• Total / Effective Pixels 1,952(H) x 1,116(V), 2.18M pixels/ 1,944(H) x 1,104(V), 2.14M pixels
• Scanning System Progressive
• Min. Illumination
• Color : 0.3Lux (1/30sec, F1.6, 50IRE,AGC high) , 0.005Lux (2sec, F1.6, 50IRE,AGC high)
• B/W : 0.03Lux (1/30sec, F1.6, 50IRE,AGC high), 0.0005Lux (2sec, F1.6, 50IRE,AGC high)
• Color : 0.15Lux (1/30sec, F1.6, 30IRE), 0.0025Lux (2sec, F1.6, 30IRE)
• B/W : 0.015Lux (1/30sec, F1.6, 30IRE), 0.00025Lux (2sec, F1.6, 30IRE)
• S / N Ratio 50dB
• Video Output CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• LENS
• Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
• Max.Aperture Ratio F1.6(Wide) / F4.4(Tele)
• Angular Field of View H : 62.8°(Wide) ~ 2.23°(Tele) / V : 36.8°(Wide) ~ 1.26°(Tele)
• Min. Object Distance Wide : 1.5m (4.92ft), Tele : 1.9m (6.23ft) Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
• Focus Control Auto / Manual / One push
• Lens / Mount Type DC auto iris/ Board-in type
• PAN / TILT / ROTATE
• Pan / Tilt Range 360° Endless/ 210° (-15° ~195° )
• Pan / Tilt Speed Preset : 700°/sec,Manual : 0.024°/sec ~ 120°/sec
• Sequence Preset (255ea), Swing, Group (6ea), Trace, Tour (1ea),Auto run, Schedule
• Preset Accuracy ±0.2°
• Azimuth Yes(E / W / S / N / NE / NW / SE / SW)
• OPERATIONAL
• Camera Title Off / On (Displayed up to 45 characters)
• Day & Night Auto (ICR) / Color / B/W
• Backlight Compensation Off / BLC
• Wide Dynamic Range 120dB
• Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
• Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
• Digital Image Stabilization Off / On
• Defog Off / Auto / Manual
• Motion Detection Off / On (4ea rectangle zone)
• Privacy Masking Off / On (32 zones of rectangle zone) with zoom threshold mosaic option
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital Zoom 16x
• Flip / Mirror Off / On
• Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear,Audio detection, Face detection
• Alarm I/O Input 4ea / Output 2ea (Relay)
• Remote Control Interface RS-485
• RS-485 Protocol Samsung-T/E, Pelco-P/D, Panasonic, Honeywell,AD, Vicon, Bosch, GE
• Alarm Triggers Motion detection, Tampering,Audio detection, Face detection, Video analytics,Alarm input, Network disconnection
• Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Localstorage (SD/SDHC/
• SDXC) or NAS recording at network disconnected & event (Alarm triggers), External output
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.264 (MPEG-4 part 10 / AVC),MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180
• Max. Framerate
• H.264 :Max. 60fps at all resolutions
• MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 :Max. 15fps
• 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 :Max. 30fps
• Smart Codec Yes Video Quality Adjustment H.264 : Compression level, Target bitrate level control,MJPEG : Quality level control
• Bitrate Control Method H.264 : CBR or VBR,MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 profiles)
• Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out Line out (3.5mm mono jack),Max output level : 1 Vrms
• Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz,
• G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Audio Communication Bi-directional audio
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
• SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2),ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication
• IP addressfiltering, User accesslog, 802.1x authentication
• Streaming Method Unicast / Multicast
• Max. User Access 10 users at unicast mode
• Edge Storage
• SD/SDHC/SDXC slot forsupporting memory card
• Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded
• NAS (Network Attached Storage)
• Application Programming Interface ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2, Samsung Techwin Open Platform
• Webpage Language
• English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
• Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
• Croatian, Hungarian, Greek, Finnish, Norwegian
• Web Viewer
• Supported OS :Windows XP / VISTA / 7 / 8,MAC OS X 10.7
• Supported Browser :Microsoft Internet Explorer (Ver. 8 ~ 11),Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25),Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature /
• Humidity
• 24V AC :-50°C ~ +55°C (-58°F ~ +131°F) /
• Lessthan ~ 90% RH
• PoE+ :-30°C ~ +55°C (-22°F ~ +131°F) /
• Lessthan 90% RH
• -10°C ~ +55°C (+14°F ~ +131°F) /
• Lessthan 90% RH
• Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Lessthan 90% RH
• Ingress Protection IP66 N/A
• Vandal Resistance IK10 IK10 (With SHP-3701H)
• ELECTRICAL
• Input Voltage / Current 24V AC ±10%, PoE+ (IEEE802.3at, Class4)
• Power Consumption 24V AC :Max. 65W (24V AC heater on & PoE heater on)
• PoE+ :Max. 25W (24V AC heater off / PoE heater on) Max. 20W
• MECHANICAL
• Color / Material Ivory / Plastic + Metal
• Dimensions (WxH) Ø223.4 x 293.6mm (Ø8.8? x 11.56?) Ø152.0 x 218.0mm (Ø5.98? x 8.58?)
