WISENET SNZ-6320

SNZ-6320

2MP Full HD Zoom

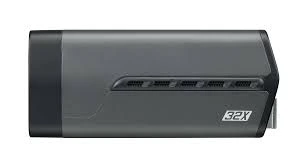

The SNZ-6320 zoom box camera camera features an industry leading 32x optical motorized zoom with auto focus. The camera provides clear and crisp images, with 1080p @ 60fps, wide dynamic range at 120db and WiseNet III intelligent video analytics.

VIDEO

• Imaging Device 1/2.8? 2.38M CMOS
• Total/ Eective Pixels 1,952(H) x 1,116(V), 2.18M / 1,944(H) x 1,104(V) , 2.14M
• Scanning System Progressive
• Min. Illumination Color : 0.3Lux (1/30sec, F1.6, 50IRE), 0.15Lux (1/30sec, F1.6, 30IRE)
• B/W : 0.03Lux (1/30sec, F1.6, 50IRE), 0.015Lux (1/30sec, F1.6, 30IRE)
• S / N Ratio 50dB
• Video Output CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• DIP connector type
• LENS
• Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
• Max. Aperture Ratio F1.6(Wide) / F4.4(Tele)
• Angular Field ofView H : 62.8°(Wide) ~ 2.23°(Tele) / V : 36.80°(Wide) ~ 1.26°(Tele)
• Min. Object Distance 1.5m (4.92ft)
• Focus Control Auto / Manual/ One push
• Lens/ Mount Type DC auto iris/ Board-in type
• OPERATIONAL
• Camera Title O / On (Displayed up to 45 characters)
• Day & Night Auto (ICR)/ Color/ B/W / External/ Schedule
• Backlight Compensation O / BLC
• Wide Dynamic Range 120dB
• Contrast Enhancement SSDR (O / On)
• Digital Noise Reduction SSNRIII (2D+3D noise lter) (O / On)
• Digital Image Stabilization O / On
• Defog O / Auto / Manual
• Motion Detection O / On (4ea 4 points polygonal zones)
• Privacy Masking O / On (32 zones with 2 points of rectangle)
• Gain Control O / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor/ Outdoor / Mercury
• Electronic Shutter Speed Minimum / Maximum / Anti icker (2 ~ 1/12,000sec)
• Digital Zoom 16x
• Flip / Mirror O / On
• IntelligentVideo Analytics Tampering, Virtual line, Enter/ Exit, (Dis)Appear, Audio detection, Face detection
• Alarm I/O Input 1ea / Output 1ea (Relay)
• Remote Control Interface RS-485
• RS-485 Protocol Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE
• AlarmTriggers Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection
• Alarm Events File upload via FTP and E-mail, Notication via E-mail, Localstorage(SD/SDHC/SDXC)
• or NAS recording at Network disconnected & Event (AlarmTriggers), External output
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
• 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180
• Max. Framerate
• H.264 : Max. 60fps at all resolutions
• MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
• 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea), Face detection mode
• VideoQuality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
• Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 proles)
• Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out Line out (3.5mm stereo mini jack), Max output level : 1 Vrms
• Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz,
• G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Audio Communication Bi-directional audio
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
• SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security
• HTTPS(SSL) login authentication, Digest login authentication
• IP address ltering, User accesslog, 802.1x authentication
• Streaming Method Unicast/ Multicast
• Max. User Access 10 users at unicast mode
• Edge Storage SD/SDHC/SDXC – Motion Imagesrecorded in the SD/SDHC/SDXC memory card
• can be downloaded. NAS (Network Attached Storage)
• Application Programming Interface ONVIF prole S, SUNAPI 2.0, SVNP 1.2
• Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian,Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
• WebViewer
• Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 / 10.8
• Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11),
• Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 32)
• Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
• Central Management Software SmartViewer, SSM, Mobile viewer
• ENVIRONMENTAL
• OperatingTemperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Lessthan 90% RH
• Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Lessthan 90% RH
• ELECTRICAL
• InputVoltage / Current 12V DC, PoE (IEEE802.3af, Class3)
• Power Consumption Max. 9W (12V DC)/ Max. 10W (PoE)
• MECHANICAL
• Color/ Material Dark gray / Metal
• Dimensions(WxHxD) 72.0 x 59.9 x 135.4mm (2.83? x 2.36? x 5.33?)
•
