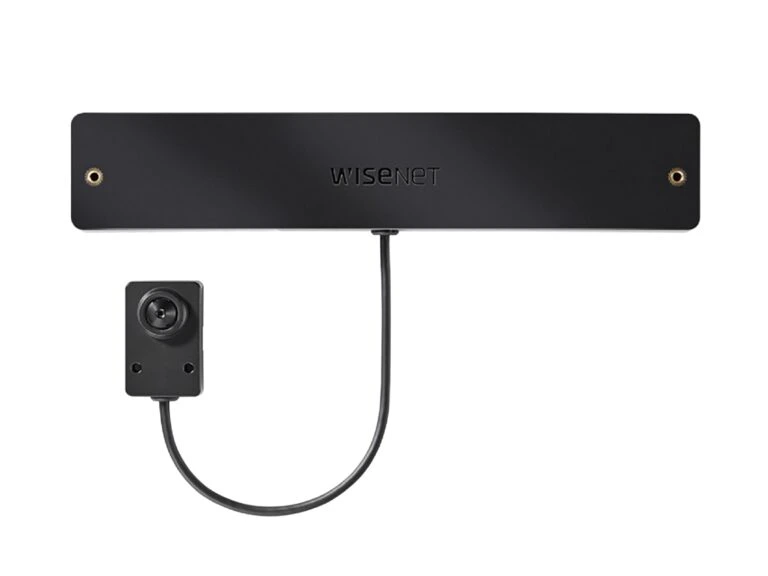

WISENET TNB-6030

Public View Monitor Camera

Key Features

• 2Megapixel (1920 x 1080) resolution
• HDMI Output (1080p Full HD)
• True WDR (150dB)
• Face detection overlay
• Text overlay and blinking “Recording in progress”
• Discreet design for public view monitoring
• 60fps@all resolutions, 0.06 Lux@F2.5 (Color)
• 265, H.264, MJPEG codec supported, Multiple streaming
• SD/SDHC/SDXC memory slot (256GB)
• Hallway view, WiseStreamII , LDC support
• Bi-directional audio support, Alarm I/O (1ea)
• PoE, 12V DC

VIDEO

• Imaging Device
• 1/2.8? 2M CMOS
• Total Pixels
• 1,945(H) x 1,109(V) 2.16M pixels
• Effective Pixels
• 1,945(H) x 1,097(V) 2.13M pixels
• Scanning System
• Progressive Scan
• Min. Illumination
• Color : 0.06 Lux (1/30sec, F2.5)
• S / N Ratio
• 50dB
• Video Out
• Micro HDMI (Max. 1920 x 1080 60fps)
• LENS
• Focal Length (Zoom Ratio)
• 4.6mm
• Max. Aperture Ratio
• F2.5
• Angular Field of View
• H : 73.8° / V : 39.6° / D : 86.8°
• Min. Object Distance
• 0.98ft (0.3m)
• Lens / Mount Type
• Pinhole / Board-in type
• OPERATIONAL
• Camera Title
• Off / On (Displayed up to 85 characters)
• – English / Numeric / Special characters
• – Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• – Text Blinking, Pre-configured Text “Recording in progress”
• Day & Night
• Auto (Electrical) / Color / B/W
• Backlight Compensation
• Off / BLC / HLC (Masking / Dimming) / WDR
• Wide Dynamic Range
• 150dB
• Contrast Enhancement
• SSDR (Off / On)
• Digital Noise Reduction
• SSNRV (2D+3D noise filter) (Off / On)
• Digital Image Stabilization
• Off / On
• Defog
• Off / Auto (input from fog detection) / Manual
• Motion Detection
• Off/ On (8ea, 8point Polygonal zones), Handover
• Privacy Masking
• Off / On (32ea, polygonal zones)
• – Color : Gray / Green / Red / Blue / Black / White – Mosaic
• Gain Control
• Off / Low / Middle / High
• White Balance
• ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium)
• Contrast
• Level adjustment
• LDC (Lens Distortion Correction)
• Off / On (5 Levels with min / max)
• Electronic Shutter Speed
• Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec)
• Digital PTZ
• 24x, Digital PTZ (Preset, Group)
• Flip / Mirror
• Off / On, Hallway view : 90°/270°
• Video & Audio Analytics
• Tampering, Loitering, Directional detection, Defocus detection, Fog detection,
• Virtual line, Enter/Exit, (Dis) Appear, Face detection, Motion detection,
• Digital auto tracking
• Face Detection
• – Up to 6 faces detectable in real time
• – Detection distance : up to 50ft (15.24m)
• – Overlay color changeable : Blue / Red / Green / Orange / Black
• Alarm I/O
• Input 1ea / Output 1ea
• Alarm Triggers
• Motion detection, Video & audio analytics, Network disconnect
• Alarm Events
• File Upload Via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Pixel Counter
• Support
• NETWORK
• Ethernet
• RJ-45 (10/100 BASE-T)
• Video Compression Format
• H.265 / H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution
• 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
• 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate
• H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec
• Manual mode (Area-based : 5ea)
• WiseStream II
• Support
• Video Quality Adjustment
• H.265 / H.264 / MJPEG : Target Bitrate Level Control
• Bitrate Control Method
• H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability
• Multiple streaming (Up to 10 Profiles)
• Audio In
• Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out
• Line out, Max output level : 1 Vrms
• Audio Compression Format
• G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
• Audio Communication
• Bi-directional (2-way)
• IP
• IPv4, IPv6
• Protocol
• TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security
• HTTPS (SSL) login authentication, Digest login authentication
• IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method
• Unicast / Multicast
• Max. User Access
• 20 Users at Unicast Mode
• Edge Storage
• SD/SDHC/SDXC (256 GB)
• – Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.
• NAS(Network Attached Storage), Local PC for Instant Recording
• Application Programming Interface
• ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform
• Webpage Language
• English
• Web Viewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Plug-in free Web viewer
• – Supported Browser : Google Chrome, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OS X only)
• Plug-in Webviewer
• – Supported Browsers : MS Explore 11, Apple Safari (Mac OS X only)
• Central Management Software
• SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature / Humidity
• +14°F ~ +122°F (-10°C ~ +50°C ) / Less than 90% RH
• Storage Temperature / Humidity
• -22°F ~ +140°F (-30°C ~ +60°C ) / Less than 90% RH
• ELECTRICAL
• Input Voltage / Current
• PoE (IEEE802.3af, Class3), 12V DC
• Power Consumption
• Max. 6W (12V DC), Max. 7W (PoE)
• MECHANICAL
• Color / Material
• Black / Plastic, Metal
• Dimensions (WxHxD)
• Main unit : 9.45? x 1.81? x 0.98? (240 x 46 x 25mm)
• Lens : 1.18? x 1.77? x 0.8
