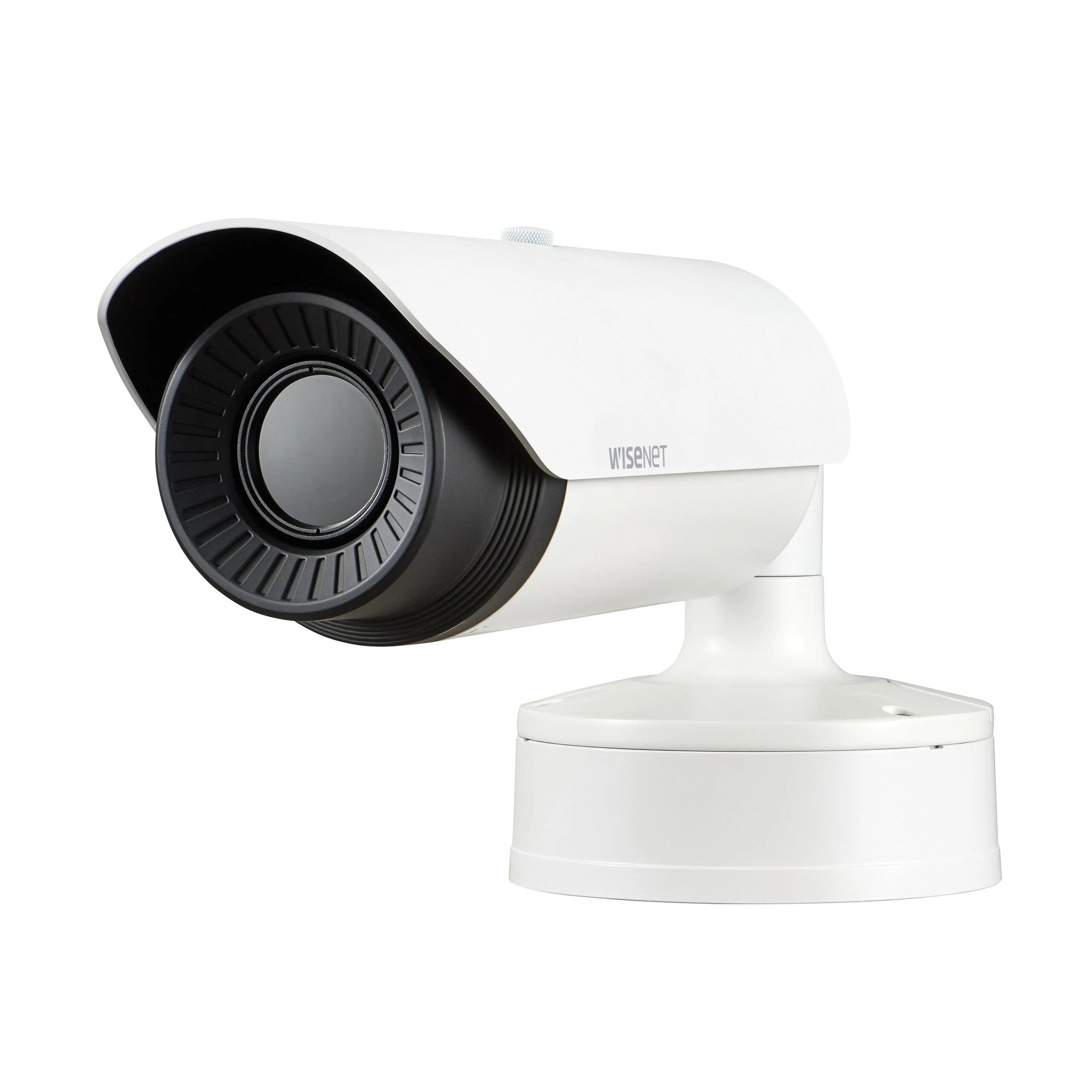

WISENET TNO-4030TR

TNO-4030TR

VGA H.265 NW Radiometric Thermal Camera

• Max. 640 x 480 resolution support

• Built-in 13mm fixed lens

• H.265, H.264, MJPEG codec

• Max. 30fps@all resolutions (H.265, H.264, MJPEG)

• Motion detection, Handover, Tampering, Loitering

• Directional detection, Audio detection, Sound classification

• Shock detection,Temperature detection, Hallway view

• SD / SDHC / SDXC memory slot (Max. 256GB)

• WiseStreamII support

• PoE, 24V AC, 12V DC

• IP66, NEMA4X, IK10

Video

• Imaging Device Uncooled micro bolometer
• NETD <50mK
• Pixel size 17?
• Video Out CVBS: 1.0 Vp-p / 75O composite, 720×480(N), 720×576(P) for installation
• USB : Micro USB Type B, 1280×720 for installation
• Lens
• Focal Length (Zoom Ratio) 13mm fixed focal
• Max. Aperture Ratio F1.0
• Angular Field of View H: 48.6° / V: 36.4 / D: 61.6°
• Min. Object Distance 5m(16.40ft)
• Focus Control Fixed
• Operational
• Camera Title Displayed up to 85 characters
• Digital Image Stabilization Support(built-in gyro sensor)
• Motion Detection 8ea, 8point polygonal zones
• Privacy Masking 32ea, polygonal zones
• – Color: Grey/Green/Red/Blue/Black/White
• – Mosaic
• Video Rotation Flip, Mirror, Hallway view(90°/270°)
• Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
• Alarm I/O Input 1ea / Output 2ea
• Alarm Triggers Analytics, Network disconnect, Alarm input
• Alarm Events File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• Handover
• Audio In Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out Line out, Max.output level: 1Vrms
• Radiometry
• Temperature detect range -20°C~130°C(-4°F~266°F)
• Temperature accuracy ±5?(=100?), ±20%(>100?)
• Temperature detection 3ea rectanguler
• Additional Hybrid palettes, Spot temperature reading
• Network
• Ethernet RJ-45(10/100BASE-T)
• Video Compression H.265/H.264: Main/Baseline/High, MJPEG
• Resolution 640×480, 640×360, 320×240
• Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
• MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Smart Codec Manual(5ea area), WiseStream?
• Bitrate Control H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Audio Compression G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
• Application Programming Interface ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Recommended Browser: Google Chrome
• Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Memory 1024MB RAM, 256MB Flash
• Environmental
• Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Certification IP66, IK10, NEMA4X
• Electrical
• Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
• Power Consumption PoE: Max. 10W, typical 8.6W
• 12VDC: Max. 9W, typical 7.5W
• 24VAC: Max. 10.5W, typical 8.9W
• Mechanical
• Color / Material White / Aluminum
• RAL Code RAL9003
• Product dimensions / weight F101.97×401.8mm (4.01×15.82?) / 3,124g (6.89lb)
