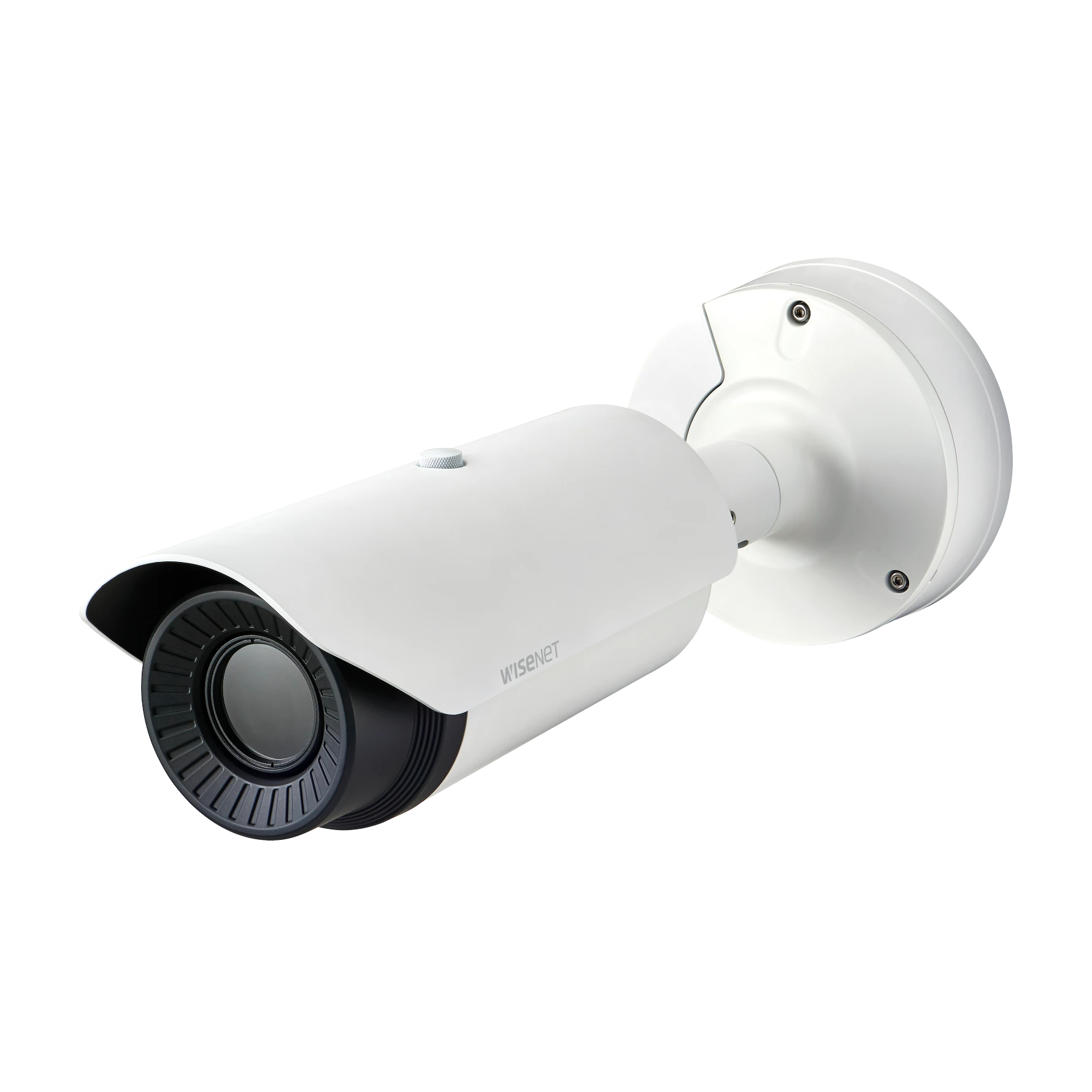

WISENET TNO-4050T

SAMSUNG WISENET TNO-4050T

VGA NW Thermal Camera

Key Features

• Max. 640 x 480 resolution support
• Built-in 35mm fixed lens
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Audio detection, Sound classification
• Shock detection, Temperature change detection
• SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24V AC, 12V DC
• IP66, NEMA4X

VIDEO

• Imaging Device
• Uncooled microbolometer, Pixel size : 17?
• Effective Pixels
• 640(H) x 480(V)
• NETD
• <50mK
• Video Out
• CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• USB : Micro USB type B, 1280 x 720, for installation
• LENS
• Focal Length (Zoom Ratio)
• 35mm fixed
• Max. Aperture Ratio
• F1.0
• Angular Field of View
• H : 17.2° / V : 13° / D : 22°
• Min. Object Distance
• 36m (118.11ft)
• Focus Control
• Fixed
• Lens / Mount Type
• Board-in type
• OPERATIONAL
• Camera Title
• Off / On
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• Motion Detection
• Off / On (8ea, 8point polygonal zones), Handover
• Privacy Masking
• Off / On (32ea, polygonal zones)
• – Color : Gray / Green / Red / Blue / Black / White – Mosaic
• Flip / Mirror
• Off / On, Hallway : 90° / 270°
• Video & Audio Analytics
• Tampering, Loitering, Directional detection, Virtual line, Enter/Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
• Alarm I/O
• Input 1ea / Output 2ea
• Digital Image Stabilization
• Off / On (Built-in Gyro sensor)
• Alarm Triggers
• Alarm input, Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events
• File upload Via FTP, E-mail, Notification Via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output
• Pixel count
• Support
• NETWORK
• Ethernet
• RJ-45 (10/100 BASE-T)
• Video Compression Format
• H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution
• 640 x 480, 640 x 360, 320 x 240
• Max. Framerate
• H.265 / H.264 : Max. 30fps at all resolutions, MJPEG : Max. 30fps
• WiseStreamII
• Support
• Video Quality Adjustment
• H.265 / H.264 / MJPEG : Target Bitrate Level Control
• Bitrate Control Method
• H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability
• Multiple streaming (Up to 10 profiles)
• Audio In
• Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA),
• Input impedance : approx. 2K Ohm
• Audio Out
• Line out, Max output level : 1 Vrms
• Audio Compression Format
• G.711 u-law / G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz,
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz
• Audio Communication
• Bi-dierctional (2-Way)
• IP
• IPv4, IPv6
• Protocol
• TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
• Security
• HTTPS(SSL) login authentication, Digest login authentication
• IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
• Streaming Method
• Unicast / Multicast
• Max. User Access
• 20 users at Unicast mode
• Edge Storage
• SD/SDHC/SDXC (up to 256GB)
• – Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded.
• NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface
• ONVIF Profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
• Webpage Language
• English, Korean, Chinese, French, Italian, Spanish, German, Japanese,
• Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Non-plugin Webviewer
• – Supported Browser : Google Chrome 63, MS Edge 41, Mozilla Firefox 57 (Window 64bit only), Apple Safari 11 (Mac OS X only)
• Plug-in Webviewer
• – Supported Browser : MS Explore 11, Apple Safari 11 (Mac OS X only)
• Central Management Software
• SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature / Humidity
• -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
• Storage Temperature / Humidity
• -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Ingress Protection
• IP66, NEMA 4X
• ELECTRICAL
• Input Voltage / Current
• 24V AC, 12V DC, PoE (IEEE802.3af)
• Power Consumption
• Max. 10.5W (24V AC), Max, 9W (12V DC), Max. 10W (PoE)
• Typical 8.9W (24V AC), Typical 7.5W (12V DC), Typical 8.6W (PoE)
• MECHANICAL
• Color / Material
• White (RAL-9003) / Aluminum
• Dimensions (WxH)
• Ø101.97 x 401.8mm (Ø4.01? x 15.82?)
• Weight
• 3,126g (6.89 lb)
• VGA Thermal Camera
• TNO-4050T
• Key Features
• Dimensions
• Unit : mm (inch)
• 222.22 (8.75?)401.8 (15.82?)113.42 (4.46?)Ø147.51 5.81?)Ø101.97 4.01?)
• 113.42 (4.46?)
• Ø101.97 (4.01?)
• 401.8 (15.82?)
• 222.22 (8.75?)
• (5.81?)
• • Max. 640 x 480 resolution support
• • Built-in 35mm fixed lens
• • H.265, H.264, MJPEG codec
• • Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• • Motion detection, Handover
• • Tampering, Loitering, Directional detection, Audio detection,
• Sound classification, Shock detection, Temperature change detection
• • SD / SDHC / SDXC memory slot (Max. 256GB)
• • Hallway View, WiseStreamII support
• • PoE, 24V AC, 12V DC
• • IP66, NEMA4X
• * The lastest product information / specification can be found at hanwha-security.com
