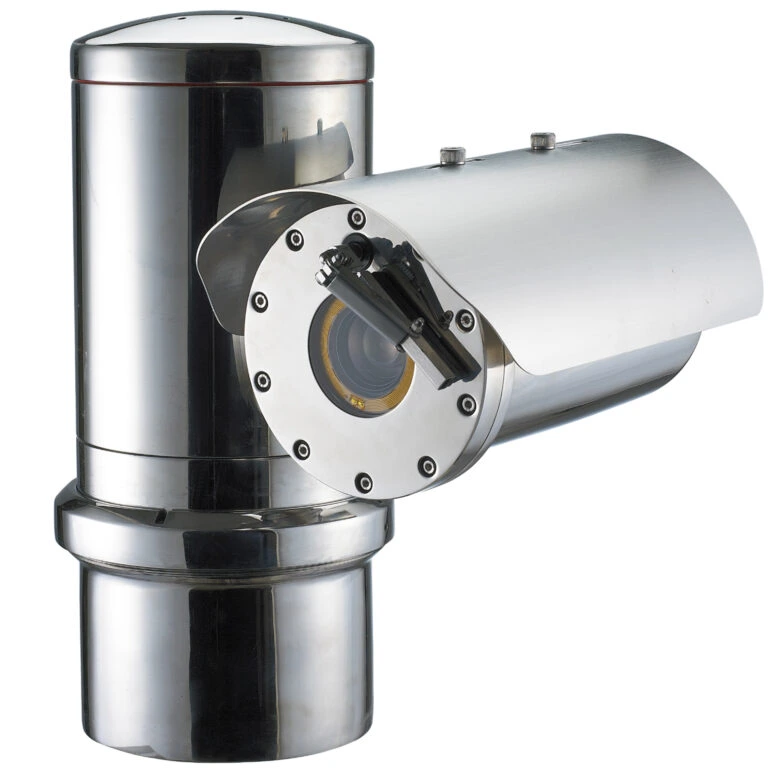

WISENET TNO-6320E

SAMSUNG TNO-6320E

• Explosion proof cameras for hazardous environments
• Stainless steel 316L enclosure to
• prevent explosions
• Heavy industrial facilities such as gas pipelines, petrochemical plants or oil refineries are potentially explosive
• because of flammable gases and dusts emitted. Therefore, it is important that a video surveillance system used in
• heavy industrial facilities is not the cause of explosions whilst still delivering high quality images. Wisenet T series
• explosion proof cameras satisfy both requirements by the powerful network camera and stainless steel housing
• enclosure surrounding it.
• Stainless steel 316L enclosure to
• prevent explosions
• Heavy industrial facilities such as gas pipelines, petrochemical plants or oil refineries are potentially explosive
• because of flammable gases and dusts emitted. Therefore, it is important that a video surveillance system used in
• heavy industrial facilities is not the cause of explosions whilst still delivering high quality images. Wisenet T series
• explosion proof cameras satisfy both requirements by the powerful network camera and stainless steel housing
• enclosure surrounding it.
• T series explosion proof cameras are designed to be
• safely operated in hazardous areas with the special
• enclosure made of stainless steel 316L housing. The ATEX
• certified enclosure has the ability to contain any internal
• explosions or prevent sparks from escaping the device
• which may lead to a disaster.
• Capture details with 2MP 32x optical zoom
• Defog technology to improve image clarity
• The powerful 2MP optical zoom 32x (4.44~142.6mm) camera SNZ-6320 is built in the explosion proof enclosure.
• 32x Optical zoom and 16x digital zoom helps users to see more further and clearly, capturing everything
• with sharpness without losing detail.
• Defog technology to improve image clarity
• The powerful 2MP optical zoom 32x (4.44~142.6mm) camera SNZ-6320 is built in the explosion proof enclosure.
• 32x Optical zoom and 16x digital zoom helps users to see more further and clearly, capturing everything
• with sharpness without losing detail.
• Defog function is an image processing technology which helps increase image clarity in poor weather conditions
• such as fog or yellow dust. The visibility of the cameras can be enhanced in any weather condition so that users can
• monitor full-time.

Samsung TNO-6320E quantity 1

• 2M 32x N/W Explosion-proof Camera
• Full-HD(1920×1080)
• 60fps @2M, Optical 32x, Digital 16x
• 0.15Lux@F1.6(color) , 0.015Lux@F1.6(B/W)
• Wide Dynamic Range 120dB
• Intelligent VA ( Face Detection, Tampering, Virtual Line, Appear/Disappear, Enter/Exit )
• Explosion-proof Certificate : ATEX EX II 2 GD, Ex d IIC Gb T6 / Ex tb IIIC Db T(85°C)
• Stainless 316L, Built-in Wiper, IP67, IK10
• Operating Temp : -40?~60?
• 24VAC
• Wisenet III
• SNZ-6320
